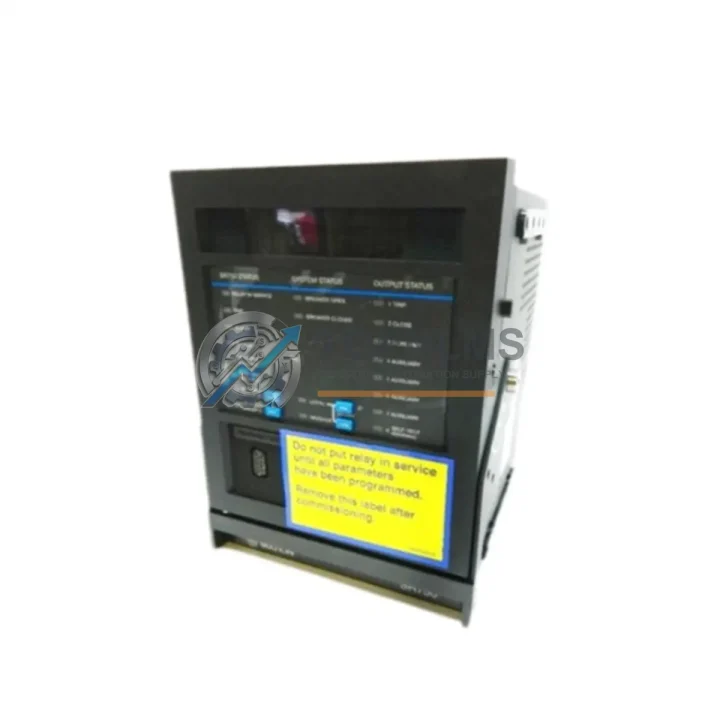

GE Multilin 750-P5-G5-HI-A1-R-E Ruggedized Feeder Protection Relay

Product Overview

GE Multilin 750-P5-G5-HI-A1-R-E Ruggedized Feeder Protection Relay: Industrial Resilience for Harsh Environments

The GE Multilin 750-P5-G5-HI-A1-R-E is a high-performance feeder protection relay engineered for continuous, dependable operation in the most demanding industrial environments. As part of the proven GE Multilin 750 Series, this relay delivers comprehensive overcurrent, earth fault, and directional protection functions that critical infrastructure operators rely on to safeguard distribution feeders, motor circuits, and transformer bays. Whether deployed in a high-temperature substation, a dust-laden mining switchroom, or a vibration-intensive offshore platform, the 750-P5-G5-HI-A1-R-E maintains precise protection coordination without compromise.

Designed to withstand electromagnetic interference, wide temperature swings, and mechanical shock, this relay integrates seamlessly into modern SCADA architectures via its built-in communications capabilities, supporting IEC 61850 GOOSE messaging and DNP3 protocols. Its ruggedized housing and conformal-coated PCBs resist humidity and corrosive atmospheres, making it a first-choice solution for engineers specifying protection equipment in oil and gas facilities, power utilities, water treatment plants, and heavy manufacturing lines.

Rugged Specifications Table

Comprehensive Protection Solutions

The 750-P5-G5-HI-A1-R-E does not operate in isolation — it is most effective when integrated into a coordinated protection and control architecture. In a typical medium-voltage switchgear lineup, this relay works alongside the GE Multilin 850 Feeder Protection System for bus-zone backup, while the GE Multilin SR750 handles adjacent feeder bays with identical protection logic, simplifying settings management across the panel. For transformer differential protection, engineers frequently pair the 750 Series with the GE Multilin T60 Transformer Protection System, ensuring end-to-end fault clearance from the feeder to the transformer winding.

On the I/O and control side, the relay interfaces directly with GE D20MX RTU units for SCADA data acquisition, and its IEC 61850 GOOSE outputs can trip ABB REF615 feeder protection relays in mixed-vendor substations without additional hardwired intertripping. Power supply reliability is maintained by Phoenix Contact QUINT-PS industrial DIN-rail power supplies, which provide regulated 24 V DC to the relay’s auxiliary circuits even during upstream voltage sags. For panel wiring integrity, Weidmüller WDU 2.5 terminal blocks and Phoenix Contact PT 2×2-PE/S surge protection terminal blocks are commonly specified in the same control cabinet to protect the relay’s analog inputs from transient overvoltages caused by nearby switching operations or lightning strikes.

Where safety-rated outputs are required — for example, in SIL 2 interlock loops — the 750-P5-G5-HI-A1-R-E trip contacts are wired through Pilz PNOZ X3 safety relays to ensure de-energize-to-trip logic is maintained even under relay failure modes. Communication integrity across the substation LAN is supported by Hirschmann RS20 managed industrial Ethernet switches, which provide RSTP redundancy for the IEC 61850 process bus connecting the 750 relay to the station HMI and historian.

Application in Critical Infrastructure

In oil and gas upstream facilities, the GE Multilin 750-P5-G5-HI-A1-R-E protects medium-voltage feeders supplying ESP (electric submersible pump) drives, gas compressor motors, and wellhead control panels. Its high-impedance earth fault detection (G5 ground option) is particularly valued in resistance-grounded systems common in offshore platforms, where an undetected ground fault can escalate to a phase-to-phase arc flash event with catastrophic consequences.

In underground mining operations, the relay’s Class II vibration rating and wide operating temperature range allow installation in mobile substation trailers that traverse rough terrain. The directional overcurrent elements (67/67N) coordinate with mine feeder cables that experience frequent load swings from continuous miners and shuttle cars, preventing nuisance trips while still clearing genuine faults within 80 ms.

At water and wastewater treatment plants, the 750-P5-G5-HI-A1-R-E protects feeders to large pump motors and aeration blowers. Its auto-reclose function (79) is configured for single-shot reclosure on overhead distribution lines feeding remote pump stations, restoring service automatically after transient faults caused by wildlife or vegetation contact — reducing operator callouts and improving plant availability.

In metallurgical and steel mill environments, where arc furnaces generate severe harmonic distortion and voltage flicker, the relay’s IEEE C37.90.1-compliant surge withstand capability ensures protection element stability. The relay continues to measure and trip accurately even when the fundamental frequency current is distorted by up to 20% THD, a condition that causes false operations in lower-grade protection devices.

For power utility distribution networks, the 750-P5-G5-HI-A1-R-E is a direct replacement for aging electromechanical overcurrent relays in 11 kV and 33 kV feeder panels. Its IEC 61850 Edition 2 compliance allows integration into modern digital substation architectures without protocol converters, and its event recorder (512 events) and fault recorder (64 cycles at 64 samples/cycle) provide the disturbance data utilities need for post-fault analysis and regulatory reporting.
