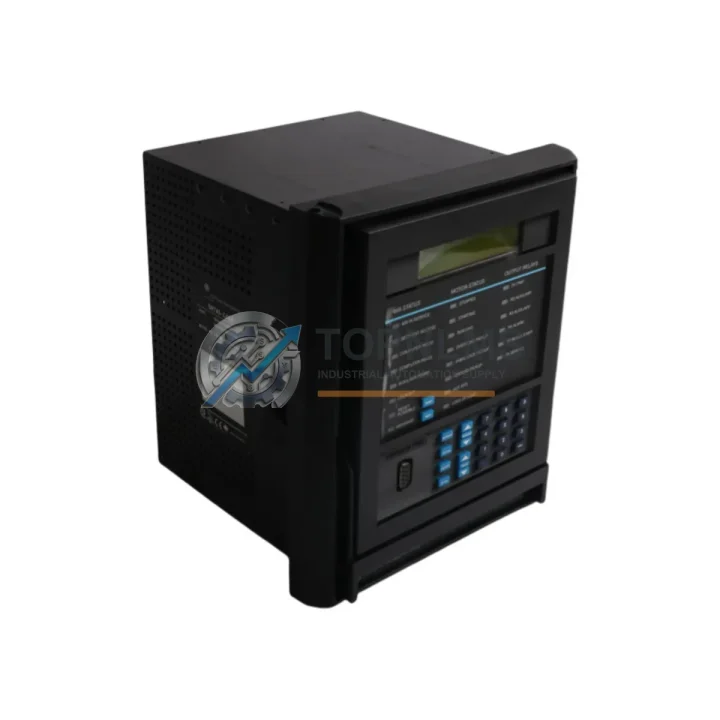

GE Multilin 745-W2-P5-G5-HI-A-L-R Replacement Relay

Product Overview

GE Multilin 745-W2-P5-G5-HI-A-L-R Replacement Relay: Seamless Transition & Legacy System Upgrade

The GE Multilin 745-W2-P5-G5-HI-A-L-R is a full-featured transformer protection relay engineered for dual-winding power transformers in utility substations, industrial switchgear, and critical infrastructure applications. As aging protection systems reach end-of-life or become increasingly difficult to maintain, this relay serves as the definitive replacement and upgrade solution for facilities operating legacy GE Multilin 745 Series units, older electromechanical differential relays, or discontinued transformer protection devices from the pre-digital era.

When your existing protection scheme relies on obsolete hardware — whether that is an earlier 745 variant without high-impedance (HI) fault detection, a first-generation numerical relay with limited communication capability, or a panel-mounted electromechanical overcurrent relay — migrating to the 745-W2-P5-G5-HI-A-L-R delivers measurable improvements in protection sensitivity, system diagnostics, and operational continuity. The relay’s dual-winding architecture directly mirrors the physical topology of most distribution and power transformers, eliminating the need for external interposing CTs or auxiliary wiring modifications in the majority of retrofit scenarios.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy transformer protection scheme to the 745-W2-P5-G5-HI-A-L-R typically involves more than a one-for-one relay swap. In practice, the retrofit process touches several interconnected components within the protection panel and substation control cabinet.

On the current transformer side, facilities upgrading from older electromechanical relays often need to verify CT burden ratings and secondary wiring continuity before commissioning the new relay. The 745’s selectable 1A/5A CT inputs accommodate most existing CT installations without rewiring, but where CT terminal blocks are corroded or undersized, replacement with DIN-rail mounted CT shorting terminal blocks is recommended to maintain circuit integrity during the changeover.

For communication integration, the 745-W2-P5-G5-HI-A-L-R supports RS-485 Modbus RTU and DNP3, making it directly compatible with most SCADA front-end processors and RTUs already deployed in the substation. Sites running older proprietary communication schemes may require a protocol converter or gateway module to bridge legacy serial networks to the relay’s RS-485 port. Where IEC 61850 GOOSE messaging is required for future-proofing, the GE Multilin 745 platform supports optional IEC 61850 communication cards that can be field-installed without replacing the base relay.

Power supply compatibility is addressed by the G5 auxiliary supply option, which accepts a wide AC/DC input range. This eliminates the need to modify existing station battery or UPS wiring in most 110V DC or 125V DC substation environments. Where the existing panel uses a dedicated 24V DC logic supply rail, a DC-DC converter module can be added to the control cabinet without significant space impact.

In terms of physical installation, the 745 relay occupies a standard 4U rack space. Facilities replacing older, larger electromechanical relay panels may find that the compact numerical relay frees up panel real estate, allowing the addition of a local HMI display panel or an auxiliary I/O expansion module for additional binary input and output points. Where the existing panel cutout does not match the 745’s flush-mount dimensions, a steel adapter plate can be fabricated or sourced to maintain a clean, professional installation.

During commissioning, the relay’s built-in event recorder and oscillography function significantly reduce the time required for protection setting verification and fault simulation testing. Engineers familiar with GE EnerVista 745 PC software can upload setting files directly via the front RS-232 port or rear RS-485 connection, eliminating manual keypad entry and reducing the risk of setting errors during the cutover window. For sites without existing EnerVista licenses, the software is available as a free download from GE Grid Solutions, and setting templates from previous 745 installations can be imported directly.

Spare parts planning is an important consideration for any protection relay migration. Stocking a second 745-W2-P5-G5-HI-A-L-R unit as a cold standby spare is a common practice in utility and heavy industrial environments where transformer protection redundancy is critical. Additional items typically included in a migration spares kit include replacement output relay modules, CT shorting plugs, RS-485 communication cables, and panel labeling sets.

Retrofit Guidance FAQ

Q: Can the 745-W2-P5-G5-HI-A-L-R be wired directly to the existing CT and VT terminal blocks from the old relay?
A: In most 745 Series installations, the terminal layout is consistent across the product family. Wiring can typically be transferred terminal-for-terminal. Always verify the wiring diagram against the specific relay variant being replaced and perform a secondary injection test before energizing.

Q: Is the existing protection setting file from an older 745 unit compatible with this relay?
A: Setting files created in GE EnerVista 745 software are generally forward-compatible within the 745 product family. Minor firmware version differences may require a settings review, but the core protection functions and setting parameters are consistent.

Q: What communication protocol does this relay support for SCADA integration?
A: The relay natively supports RS-485 Modbus RTU and DNP3 Level 2. IEC 60870-5-103 is also supported. For IEC 61850, an optional communication card is available.

Q: Does the HI fault detection function require additional external wiring?
A: No. The high-impedance fault detection function is integrated into the relay firmware and uses the existing CT inputs. No additional external wiring or auxiliary relays are required.

Q: What is the lead time and shipping arrangement?
A: Units are stocked and available for immediate shipment from our Xiamen warehouse. Standard international express delivery (DHL / FedEx) typically reaches most destinations within 3–7 business days. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

Warranty Assurance

Every GE Multilin 745-W2-P5-G5-HI-A-L-R unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each relay undergoes a pre-shipment functional test covering power-on self-diagnostics, output relay operation, communication port verification, and visual inspection for physical integrity. Units that do not pass the full test protocol are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund at the customer’s discretion. Our after-sales response target is within 24 hours of a warranty claim submission. Customers are not required to return the defective unit before a replacement is dispatched for critical-application orders, subject to prior agreement.

For procurement teams requiring documentation, we can provide a test report, packing list, commercial invoice, and certificate of origin upon request. All units are shipped in original or equivalent protective packaging with ESD-safe inner wrapping to prevent transit damage.
