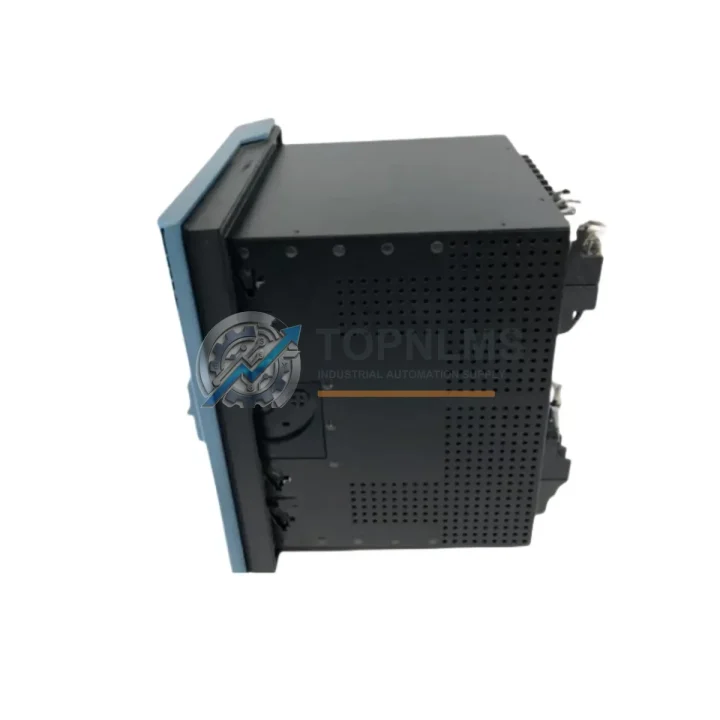

GE Multilin 469-P5-HI-A1-E-H Ruggedized Motor Management Relay

Product Overview

GE Multilin 469-P5-HI-A1-E-H Ruggedized Motor Management Relay for Harsh Environments

The GE Multilin 469-P5-HI-A1-E-H is a high-performance motor management relay engineered for continuous, reliable operation in the most demanding industrial environments. Designed as part of the GE Multilin 469 Series, this relay delivers comprehensive motor protection, monitoring, and control capabilities for medium-voltage induction motors operating in conditions characterized by extreme temperatures, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference. Whether deployed in an offshore oil platform, an underground mine, a steel mill, or a chemical processing facility, the 469-P5-HI-A1-E-H is built to maintain system integrity where conventional relays fail.

Industrial facilities running continuous production lines cannot afford unplanned motor failures. The 469-P5-HI-A1-E-H addresses this challenge by integrating thermal model protection, differential protection, ground fault detection, and phase unbalance monitoring into a single ruggedized unit. Its high-interrupting (HI) rating and advanced analog input configuration make it particularly suited for high-power motor applications where fault currents are large and response times must be precise. The relay’s onboard RTD inputs allow real-time winding and bearing temperature monitoring, enabling predictive maintenance strategies that reduce unplanned downtime and extend motor service life.

In harsh-environment control cabinets, the 469-P5-HI-A1-E-H integrates seamlessly with GE Multilin SR750 feeder protection relays and SR469 motor protection relays within the same protection architecture. When paired with GE Multilin 369 motor management relays for smaller motor applications, the 469 Series forms a scalable, unified protection layer across an entire facility. The relay communicates over Modbus RTU and DNP3 protocols, enabling direct integration with SCADA systems, DCS platforms, and PLC-based control architectures without additional protocol converters.

In high-vibration environments such as mining conveyors, crusher drives, and pump stations, the relay’s robust housing and conformal-coated PCBs resist mechanical stress and condensation ingress. Facilities operating variable-frequency drives (VFDs) alongside the 469-P5-HI-A1-E-H benefit from its advanced harmonic filtering and anti-aliasing capabilities, which prevent nuisance trips caused by drive-induced current distortion. The relay’s EMI shielding and surge withstand capability (SWC) ratings ensure stable operation even in switchgear rooms with frequent switching transients from high-voltage contactors and circuit breakers.

For power generation and water treatment facilities, the 469-P5-HI-A1-E-H protects critical pump motors, compressor drives, and fan motors that must operate continuously for months without interruption. Its load shedding and emergency restart logic supports automatic recovery sequences, reducing operator intervention during grid disturbances. In petrochemical and refinery applications, the relay’s hazardous-area compatibility and compliance with IEC 61511 functional safety principles make it a preferred choice for safety instrumented systems (SIS) protecting motors in classified zones.

The relay’s front-panel HMI provides clear fault diagnostics, event logging, and metering data, allowing maintenance engineers to quickly identify the root cause of a trip without specialized software. Data logging of motor start statistics, thermal capacity usage, and fault records supports reliability-centered maintenance (RCM) programs. When integrated with a GE UR Series universal relay platform or a Modbus-compatible PLC such as a Siemens S7-300 or Allen-Bradley ControlLogix, the 469-P5-HI-A1-E-H becomes a fully networked protection node within a plant-wide asset management system.

As a direct replacement or spare part for aging GE Multilin 469 installations, the 469-P5-HI-A1-E-H offers drop-in compatibility with existing CT wiring, panel cutouts, and communication wiring. Facilities managing aging motor control centers (MCCs) can upgrade protection without rewiring, significantly reducing retrofit costs and commissioning time. TOPNLMS maintains verified stock of the 469-P5-HI-A1-E-H and related Multilin 469 Series variants, ensuring rapid fulfillment for emergency replacement and planned maintenance programs.

Rugged Specifications Table

Comprehensive Protection Solutions

The 469-P5-HI-A1-E-H is rarely deployed in isolation. In a typical medium-voltage motor control center, it works alongside GE Multilin 369 motor management relays protecting smaller auxiliary motors such as cooling fans and lube oil pumps. The feeder circuit supplying the motor is often protected by a GE Multilin SR750 feeder protection relay, which coordinates with the 469 to ensure selective fault isolation — tripping only the faulted motor without cascading to the entire bus. For facilities requiring transformer protection upstream, the GE Multilin T60 transformer protection relay provides the complementary protection layer, ensuring the entire power distribution chain from transformer to motor terminal is covered.

On the control side, the 469-P5-HI-A1-E-H interfaces directly with PLC-based motor control logic. In Siemens-based architectures, it connects to S7-400 or S7-1500 PLCs via Modbus TCP gateways, while Allen-Bradley ControlLogix systems use the relay’s DNP3 port for seamless integration into Rockwell Automation control networks. For DCS-based plants running Honeywell Experion or ABB System 800xA, the relay’s analog and digital I/O modules feed real-time motor health data directly into the process historian, enabling condition-based maintenance workflows.

Power quality in harsh industrial environments is rarely clean. The 469-P5-HI-A1-E-H is typically installed alongside industrial UPS systems and power conditioning modules to ensure the relay’s own power supply remains stable during grid disturbances. In mining and tunneling applications, where diesel generators are the primary power source, the relay’s wide input voltage range and surge withstand capability prevent nuisance resets during generator load steps. Terminal blocks and marshalling panels within the control cabinet use Phoenix Contact or Weidmüller DIN-rail terminal modules to organize CT wiring, RTD cables, and communication shielding — all of which the 469-P5-HI-A1-E-H is designed to interface with directly.

For safety-critical applications, the 469-P5-HI-A1-E-H is often paired with dedicated safety relay modules such as the Pilz PNOZ or Siemens 3SK safety relay series, which handle emergency stop (E-stop) logic independently of the motor protection relay. This dual-layer architecture ensures that even if the 469 relay is undergoing firmware maintenance or calibration, the hardwired safety circuit remains active — a requirement in SIL 2 and SIL 3 rated safety instrumented systems. Communication modules such as Profibus DP or Modbus RTU repeaters are used to extend the relay’s network reach in large facilities where cable runs exceed standard RS-485 distance limits.

Application in Critical Infrastructure

In oil and gas upstream operations, the 469-P5-HI-A1-E-H protects electric submersible pump (ESP) motors and gas compressor drives operating in classified hazardous areas. The relay’s thermal model continuously tracks motor heating during variable load cycles, preventing insulation degradation caused by repeated overloads — a common failure mode in ESP applications where reservoir conditions change frequently. Offshore platforms benefit from the relay’s corrosion-resistant construction and wide operating temperature range, which accommodates the temperature swings between tropical surface conditions and cooled equipment rooms.

In coal and metal mining operations, the relay protects conveyor belt drives, crusher motors, and ventilation fan motors that must run continuously for extended periods. The relay’s jam protection function detects rotor lock conditions caused by material blockages, tripping the motor before winding damage occurs and alerting operators to clear the blockage before restart. Its stall protection function prevents repeated failed starts from overheating the motor during difficult starting conditions, such as a fully loaded conveyor belt starting from rest.

Power generation facilities — including thermal, hydro, and wind — use the 469-P5-HI-A1-E-H to protect boiler feed pump motors, cooling water pump motors, and auxiliary generator excitation system motors. In water treatment and desalination plants, the relay protects high-power centrifugal pump motors operating in humid, chemically aggressive environments. Its RTD-based bearing temperature monitoring provides early warning of bearing wear, allowing planned bearing replacements during scheduled maintenance windows rather than emergency shutdowns.

Metallurgical and steel mill applications subject motors to extreme thermal cycling, heavy mechanical loads, and intense electromagnetic interference from arc furnaces and induction heating equipment. The 469-P5-HI-A1-E-H’s EMI shielding and differential protection functions maintain reliable operation in these environments, protecting rolling mill drives, ladle crane motors, and fume extraction fan motors. Its event logging capability provides post-fault analysis data that maintenance engineers use to optimize motor sizing, protection settings, and maintenance intervals — reducing both capital expenditure and operational risk over the facility’s lifecycle.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformances identified under normal operating conditions. Every unit shipped by TOPNLMS undergoes a pre-shipment functional test verifying protection function operation, communication port integrity, and analog input accuracy. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund upon return of the defective unit with a fault description. Contact [email protected] to initiate a warranty claim.

Q2: How is the 469-P5-HI-A1-E-H tested before shipment?
Each unit undergoes a multi-point inspection covering power-on self-test (POST) verification, protection function pickup and timing tests, RTD input calibration check, communication port loopback test, and visual inspection for physical damage. Units that fail any test point are quarantined and not shipped. Test records are available upon request for quality-critical procurement programs.

Q3: Is the 469-P5-HI-A1-E-H compatible with my existing GE Multilin 469 installation?
Yes. The 469-P5-HI-A1-E-H is a direct form-fit-function replacement for existing GE Multilin 469 Series installations sharing the same P5 (5A CT), HI (high interrupting), A1 (analog input), E (enhanced communications), and H (RTD module) configuration. Panel cutout dimensions, CT wiring terminals, and communication port pinouts are identical to previous production runs. Settings files created with GE EnerVista 469 Setup software are fully compatible and can be uploaded directly to the replacement unit.

Q4: Can TOPNLMS support long-term supply for ongoing maintenance programs?
Yes. TOPNLMS maintains dedicated stock of GE Multilin 469 Series relays and related Multilin protection products to support both emergency replacement and planned maintenance procurement. For facilities managing large motor fleets, TOPNLMS offers blanket order arrangements and priority allocation agreements to ensure supply continuity. Contact [email protected] or call +86 18359293191 to discuss long-term supply agreements.
