GE Multilin 369-HI-R-M-0-0-0 Original Industrial Spare 369 Compatible

Product Overview

GE Multilin 369-HI-R-M-0-0-0 Original Industrial Spare: System Stability and Motor Protection Continuity

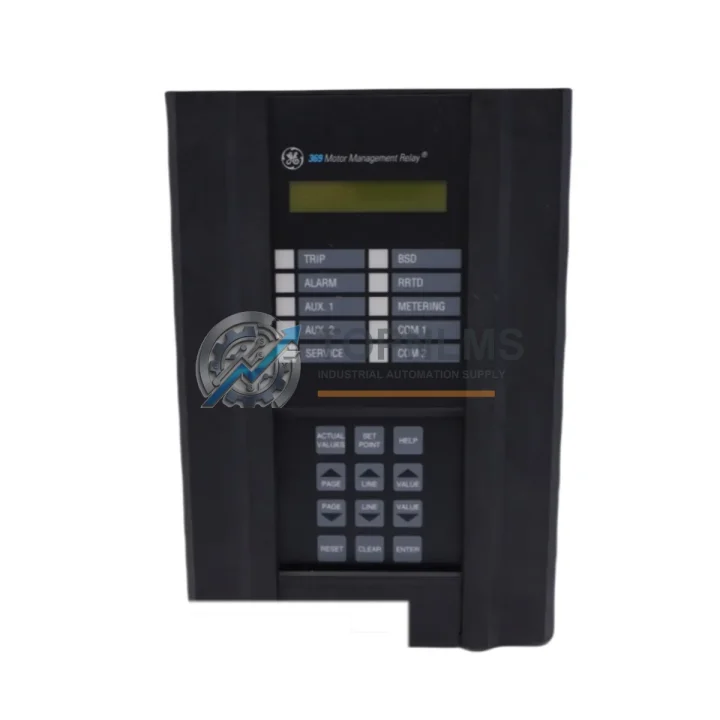

The GE Multilin 369-HI-R-M-0-0-0 is a full-featured motor management relay engineered for demanding industrial environments where motor protection, system uptime, and maintenance efficiency are non-negotiable. As a direct original spare for the Multilin 369 Series, this relay delivers comprehensive protection functions — including thermal overload, phase unbalance, undercurrent, ground fault, and jam detection — making it a cornerstone component in motor control centers (MCCs), switchgear panels, and distributed control architectures across manufacturing, oil and gas, water treatment, and heavy process industries.

When a motor protection relay fails or approaches end-of-life, the downstream consequences extend far beyond a single motor trip. Unplanned shutdowns cascade through production lines, triggering emergency maintenance calls, extended downtime, and costly restart procedures. Stocking the 369-HI-R-M-0-0-0 as a verified original spare eliminates this risk — enabling maintenance teams to execute rapid like-for-like replacements without reconfiguration delays or compatibility guesswork.

Critical Technical Specs

Preventive Maintenance Strategy

Motor protection relays like the 369-HI-R-M-0-0-0 rarely fail in isolation. In a well-maintained MCC bay, the relay operates as part of an integrated protection and control circuit — and a scheduled inspection or relay replacement is the ideal opportunity to audit the health of surrounding components before the next planned shutdown window closes.

During a 369 relay replacement or annual MCC inspection, maintenance engineers should simultaneously verify the condition of the GE Multilin 469 Generator Management Relay if the motor is part of a generator-fed bus, as both relays share the same Modbus RTU communication backbone and a firmware or wiring fault in one can mask alarms in the other. The CT (current transformer) wiring harness and shorting terminal blocks connected to the 369’s CT inputs should be inspected for insulation degradation — a common failure point in high-vibration environments — and replaced with rated terminal assemblies if any discoloration or cracking is observed.

The 24 VDC or 120 VAC control power supply module feeding the relay’s auxiliary power input is another critical check point. Voltage sag or ripple on the control bus can cause nuisance trips or relay lockout, and a spare power supply module should be held alongside the 369-HI-R-M-0-0-0 in the maintenance kit. Similarly, the RS-485 communication cable and network termination resistors connecting the relay to the SCADA or DCS host should be tested for continuity and impedance — degraded Modbus links are a leading cause of false alarm suppression in aging MCC installations.

For facilities running GE Multilin systems in parallel with Siemens or Schneider Electric motor starters, it is advisable to cross-check the contactor auxiliary contacts and overload relay modules in the same MCC bucket. These components — including Siemens 3RT2 contactors, Schneider Electric TeSys D overload relays, or equivalent OEM parts — experience mechanical wear at a rate proportional to motor start frequency, and their replacement cycle should be synchronized with the protection relay swap to avoid a second unplanned outage within weeks of the first.

The fuse modules and miniature circuit breakers (MCBs) on the control circuit side of the MCC panel deserve equal attention. A blown control fuse is frequently misdiagnosed as a relay failure, and stocking a set of rated fuse elements alongside the 369-HI-R-M-0-0-0 eliminates diagnostic ambiguity during emergency callouts. Finally, if the motor is connected via a variable frequency drive (VFD), the drive’s input/output filter capacitors and gate driver boards should be included in the preventive maintenance scope — VFD-induced harmonic distortion is a known stressor on motor protection relay CT inputs and can accelerate calibration drift over time.

Strategic Replacement Solutions

The 369-HI-R-M-0-0-0 is a direct form-fit-function replacement for all earlier 369 Series variants, including the 369-HI-R-M-0-0 and 369-LO-R-M-0-0-0 configurations, provided the power supply voltage range is matched to the panel’s control bus. No firmware re-flashing or panel rewiring is required for like-for-like substitution — the relay retains the same physical footprint, terminal layout, and Modbus register map as its predecessors, allowing maintenance teams to restore motor protection in under 30 minutes from parts arrival to relay commissioning.

For facilities managing aging GE Multilin installations where the original 369 relay has been discontinued or is approaching its rated operational lifespan, the 369-HI-R-M-0-0-0 provides a cost-effective path to system life extension without the capital expenditure of a full MCC replacement. By maintaining original relay architecture, engineering teams preserve existing SCADA integration, alarm setpoint configurations, and protection coordination studies — avoiding the re-engineering costs that accompany platform migrations.

Procurement teams managing multi-site industrial portfolios should consider establishing a minimum stock level of one 369-HI-R-M-0-0-0 per MCC lineup, particularly in facilities with high motor start frequency or continuous process operations where a motor trip directly impacts production throughput. The relay’s 12-month warranty and pre-shipment functional testing provide the quality assurance baseline required for critical spare classification under most industrial maintenance management systems (CMMS).

Support FAQ

Q1: Is the 369-HI-R-M-0-0-0 compatible with my existing 369 Series installation?
Yes. The 369-HI-R-M-0-0-0 is a direct replacement for all standard 369 Series motor management relays sharing the same panel cutout and terminal configuration. The HI suffix denotes the high-range power supply (100–240 VAC / 125–250 VDC), and the M suffix confirms Modbus RTU communication. Verify your existing relay’s power supply range and communication option before ordering to ensure a like-for-like match.

Q2: What does the 12-month warranty cover, and how is it validated?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes functional testing prior to dispatch. Warranty claims are supported by shipment documentation and test records provided with the order.

Q3: How quickly can the relay be commissioned on-site after arrival?
For a like-for-like replacement in an existing 369 Series installation, commissioning typically takes 20–45 minutes, including physical installation, CT wiring verification, setpoint transfer from the previous relay’s configuration record, and a functional trip test. No special programming tools are required for basic setpoint entry via the front panel.

Q4: What is the recommended inventory strategy for this relay in a multi-motor facility?
For facilities with 10 or more motors protected by 369 Series relays, a minimum stock of 1–2 units is recommended as a critical spare. For continuous process plants or facilities with high motor start frequency, consider holding one unit per MCC lineup. Relay condition should be assessed during annual MCC inspections, and units showing calibration drift or communication errors should be replaced proactively rather than reactively.
