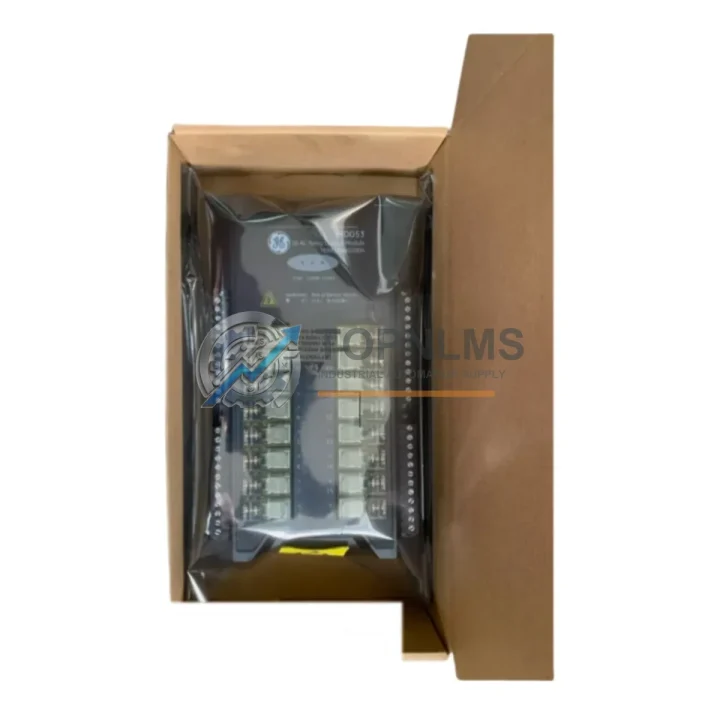

GE MAI22-369B1841G5004 Ruggedized Motor Management Relay

Product Overview

GE MAI22-369B1841G5004 Ruggedized Motor Management Relay: Industrial Resilience for the Harshest Environments

The GE MAI22-369B1841G5004 is a high-performance motor management relay from GE Multilin’s renowned Multilin 369 Series, engineered to deliver uncompromising protection and control for medium-voltage motors operating in the most demanding industrial environments. Whether deployed in oil and gas processing facilities, underground mining operations, heavy metallurgical plants, or continuous chemical production lines, this relay provides the fault detection accuracy, thermal modeling precision, and communication reliability that mission-critical motor assets demand.

Designed to withstand extreme temperature fluctuations, high-humidity atmospheres, pervasive industrial dust, mechanical vibration, and intense electromagnetic interference (EMI), the MAI22-369B1841G5004 maintains stable, uninterrupted operation where lesser protection devices fail. Its ruggedized housing and sealed terminal architecture make it a trusted choice for engineers specifying protection equipment for hazardous-area control panels, outdoor switchgear enclosures, and harsh-duty motor control centers (MCCs).

Rugged Specifications Table

Comprehensive Protection Solutions

The MAI22-369B1841G5004 does not operate in isolation — it is a cornerstone component within a broader, integrated motor protection and control architecture. In a typical heavy-industry motor control center, this relay works in concert with a GE Multilin 469 Motor Management Relay for generator-duty applications, while upstream protection is coordinated with GE Multilin 750/760 Feeder Protection Relays to ensure selective fault isolation across the distribution network.

For process-critical applications where the motor drives compressors, pumps, or conveyors, the 369 relay integrates seamlessly with GE Mark VIe distributed control system (DCS) I/O modules via hardwired trip contacts and Modbus RTU communication, enabling centralized monitoring and alarm management. In installations where variable-speed operation is required, the relay’s undercurrent and thermal model functions complement the protection logic of ABB ACS880 or Siemens SINAMICS G120 variable frequency drives (VFDs), preventing thermal damage during ramp-up sequences or process overloads.

Panel builders and system integrators frequently pair the MAI22-369B1841G5004 with Phoenix Contact QUINT-series industrial power supplies to ensure stable 24 VDC auxiliary power to the relay’s digital input circuits, even during mains voltage fluctuations. Surge protection is typically provided by Phoenix Contact or Weidmüller DIN-rail surge protection modules installed at the terminal block level, safeguarding the relay’s RS-485 communication port from transient overvoltages common in high-voltage switchgear environments.

For facilities running Siemens S7-300 or S7-400 PLC architectures, the relay’s Modbus RTU interface connects via a Siemens CP 341 or CP 343 communication processor, delivering real-time motor status, energy metering data, and fault records directly to the SCADA layer. In Profibus-equipped plants, the optional Multilin 369 Profibus DP communication card enables native integration without protocol conversion overhead. Terminal connectivity within the control cabinet is typically managed through Phoenix Contact or Weidmüller spring-clamp terminal blocks, rated for the relay’s I/O wiring requirements and compliant with IEC 60947-7-1.

Safety-critical installations — such as those governed by IEC 61511 (functional safety for process industries) — often incorporate the 369 relay alongside Pilz PNOZ or Siemens SIRIUS 3SK safety relays to form a dual-channel motor protection scheme, ensuring SIL 2 compliance for emergency shutdown (ESD) circuits. This layered approach to motor protection, combining the 369’s comprehensive thermal and electrical protection with dedicated safety relay logic, is the industry standard for protecting high-value rotating assets in hazardous classified areas.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the GE MAI22-369B1841G5004 protects the large induction motors driving pipeline compressors, gas injection pumps, and produced-water handling systems. These motors operate continuously in Class I, Division 2 (or Zone 2) classified areas where reliable protection against phase loss, ground fault, and locked rotor conditions is non-negotiable. The relay’s thermal model accurately tracks motor winding temperature even without direct RTD inputs, preventing catastrophic insulation failure in environments where unplanned downtime costs tens of thousands of dollars per hour.

In underground and open-pit mining operations, the relay manages the protection of conveyor drive motors, crusher motors, and ventilation fan motors — all subject to severe mechanical vibration, coal dust ingress, and wide ambient temperature swings. Its robust construction and sealed terminal design resist the particulate contamination that degrades conventional protection relays within months of installation. The relay’s stall protection and jam detection functions are particularly valuable in crusher and mill applications, where material bridging can cause sudden motor overloads that must be cleared within milliseconds to prevent winding damage.

In power generation and grid-connected facilities, including thermal power plants and hydroelectric stations, the 369 relay protects station service motors — boiler feed pumps, cooling water pumps, and forced-draft fans — that are essential for plant availability. Its integration with plant DCS systems via Modbus or Profibus enables operators to monitor motor health parameters, including thermal capacity used, number of starts, and running hours, directly from the control room HMI without requiring local panel access.

In water and wastewater treatment plants, the relay’s undercurrent protection function detects pump cavitation or dry-running conditions before they cause impeller damage, while its phase unbalance detection guards against the asymmetric supply voltages common in rural or remote utility grids. In metallurgical and steel-making facilities, the relay’s ability to handle high-inertia motor starts — such as those driving rolling mill drives or electric arc furnace electrode regulators — without nuisance tripping is a key selection criterion for plant electrical engineers.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit exhibits a verified defect within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting our technical team at [email protected] with the order reference and a description of the fault symptom. Our team will guide you through the return merchandise authorization (RMA) process.

Q2: How is each unit tested before shipment?
Every GE MAI22-369B1841G5004 unit in our inventory undergoes a pre-shipment functional verification check, including power-on self-test confirmation, communication port integrity verification, and visual inspection for physical damage or counterfeit indicators. Units sourced from authorized distribution channels are accompanied by traceability documentation. We do not ship units that fail our incoming quality inspection, and all test records are retained for post-sale reference.

Q3: Is the MAI22-369B1841G5004 compatible with my existing GE or third-party control system?
The Multilin 369 Series is designed for broad compatibility. It communicates natively via Modbus RTU over RS-485, which is supported by virtually all modern PLC and DCS platforms, including Siemens S7, ABB AC500, Rockwell ControlLogix, and GE Mark VIe. Optional communication cards extend compatibility to Profibus DP and DeviceNet networks. For system-specific integration questions, our technical team can review your architecture and confirm compatibility before purchase.

Q4: Can TOPNLMS guarantee long-term supply and spare-parts support for this model?
Yes. TOPNLMS maintains dedicated inventory of Multilin 369 Series relays and associated accessories to support both new project installations and ongoing spare-parts programs for existing plant assets. We understand that industrial facilities require multi-year supply continuity for critical protection relays, and we work with procurement teams to establish blanket order arrangements and priority allocation agreements. Contact us to discuss your facility’s long-term spare-parts strategy.
