GE IS230SNRLH2A Ruggedized Discrete Output Module for Harsh Environments

Product Overview

GE IS230SNRLH2A Ruggedized Discrete Output Module for Harsh Environments

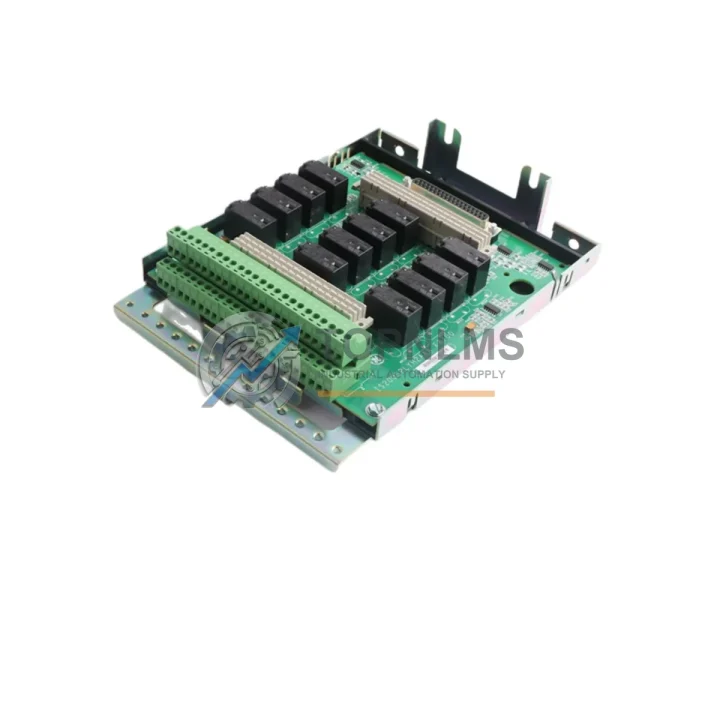

The GE IS230SNRLH2A (interchangeable with IS200SRLYH2AAA) is a heavy-duty discrete output relay module engineered for the GE Mark VI Turbine Control System. Designed to operate continuously in the most demanding industrial environments — including high-temperature turbine halls, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — this module delivers the switching reliability and signal integrity that mission-critical infrastructure demands. Whether you are maintaining a gas turbine power plant, a combined-cycle facility, or a petrochemical processing unit, the IS230SNRLH2A provides the rugged output switching backbone your control architecture depends on.

Rugged Specifications Table

Comprehensive Protection Solutions

The IS230SNRLH2A does not operate in isolation — it is a critical node within a broader GE Mark VI control architecture. In a typical turbine control cabinet, this relay output module works in close coordination with the IS200STCIH2A terminal board, which provides the field wiring interface for relay contacts, ensuring clean signal routing between the control logic and field devices. The IS230SRTDH2A RTD input module handles temperature sensing from thermocouples and resistance temperature detectors distributed across the turbine casing, feeding real-time thermal data to the same Mark VI controller that drives the IS230SNRLH2A outputs.

For power distribution within the control enclosure, the IS200EPCTG1A power converter module conditions incoming AC supply into stable DC rails, protecting all downstream I/O modules — including the IS230SNRLH2A — from voltage transients and brownout conditions common in industrial substations. Alongside it, the IS200EACFG1A AC feedback module monitors grid-side power quality, enabling the Mark VI controller to make protective switching decisions through the relay outputs of the IS230SNRLH2A before a fault can propagate to rotating equipment.

Communication integrity is maintained by the IS200IOCSG1A I/O communication module, which bridges the VME backplane to the plant DCS network, ensuring that relay state changes commanded by the IS230SNRLH2A are logged, acknowledged, and visible to operators at the SCADA level. In safety-instrumented system (SIS) architectures, the IS230SNRLH2A relay outputs are often interlocked with IS200TRLYH1C relay output terminal boards and IS200SRLYH2AAA companion modules to achieve redundant trip circuit coverage, meeting IEC 61511 functional safety requirements for SIL-rated loops in oil and gas applications.

For facilities running mixed-vendor control rooms, the IS230SNRLH2A integrates cleanly alongside Siemens S7-400 I/O racks, ABB AC800M controller modules, and Honeywell Experion PKS I/O cards within the same marshalling cabinet, provided proper signal isolation and terminal block segregation is maintained. This cross-platform compatibility makes it a versatile spare for multi-vendor plant environments where standardizing on a single control platform is not feasible.

Application in Critical Infrastructure

In gas turbine power plants, the IS230SNRLH2A governs discrete output commands to fuel control valves, inlet guide vane actuators, lube oil pump contactors, and generator breaker trip coils. Its relay contacts must switch reliably under load — often in the presence of high-frequency electrical noise generated by the generator itself — and the module’s robust design ensures contact bounce and chatter are minimized even during emergency shutdown sequences.

In oil and gas upstream and midstream facilities, including offshore platforms and onshore compression stations, the module operates within hazardous area control rooms where ambient temperatures can exceed 50°C and salt-laden air accelerates corrosion on unprotected electronics. Installed within sealed, climate-controlled control cabinets rated to NEMA 4X or IP65, the IS230SNRLH2A maintains full relay switching performance across extended production campaigns without requiring scheduled replacement.

In mining and mineral processing operations, where conveyor drives, crusher motors, and slurry pump VFDs generate significant conducted and radiated EMI, the IS230SNRLH2A’s relay isolation architecture prevents noise coupling from field circuits back into the Mark VI controller logic, protecting the integrity of the entire turbine or compressor control loop. Its compatibility with the Mark VIe platform also makes it suitable for modernization projects where aging Mark V systems are being upgraded without full cabinet replacement.

In water and wastewater treatment plants, the module controls discrete outputs to pump motor starters, valve actuators, and chemical dosing systems, where continuous 24/7 operation is mandatory and unplanned downtime carries regulatory and public health consequences. The 12-month warranty and pre-shipment functional testing provided by TOPNLMS ensure that replacement modules arrive site-ready, minimizing the mean time to repair (MTTR) during emergency maintenance windows.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the IS230SNRLH2A?
The 12-month warranty covers all functional defects attributable to manufacturing or component failure under normal operating conditions as specified by GE for the Mark VI platform. It does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or physical mishandling. TOPNLMS provides a direct replacement or full refund within the warranty period upon confirmation of the defect.

Q2: How is the IS230SNRLH2A tested before shipment?
Every IS230SNRLH2A unit dispatched by TOPNLMS undergoes a pre-shipment functional verification process that includes relay contact continuity testing, backplane connector inspection, and visual examination for component damage or corrosion. Refurbished units additionally undergo a burn-in cycle to screen for early-life failures before dispatch. A test report is available upon request for critical infrastructure procurement.

Q3: Is the IS230SNRLH2A compatible with both Mark VI and Mark VIe systems?
The IS230SNRLH2A is primarily designed for the GE Mark VI VME-based control platform. Compatibility with Mark VIe depends on the specific I/O pack and terminal board configuration in use at your site. TOPNLMS technical support can assist in confirming cross-compatibility based on your system’s hardware revision and software baseline before purchase.

Q4: Can TOPNLMS support long-term or repeat supply of the IS230SNRLH2A?
Yes. TOPNLMS maintains standing inventory of GE Mark VI series modules including the IS230SNRLH2A and IS200SRLYH2AAA to support planned maintenance schedules, emergency sparing, and multi-unit procurement for new project builds. For long-term supply agreements or volume pricing, contact our technical sales team directly to discuss framework arrangements.
