GE IS200TSVCH2AJE Replacement Solution for Mark VI

Product Overview

GE IS200TSVCH2AJE Replacement Solution for Mark VI: Smooth Transition & Legacy System Compatibility

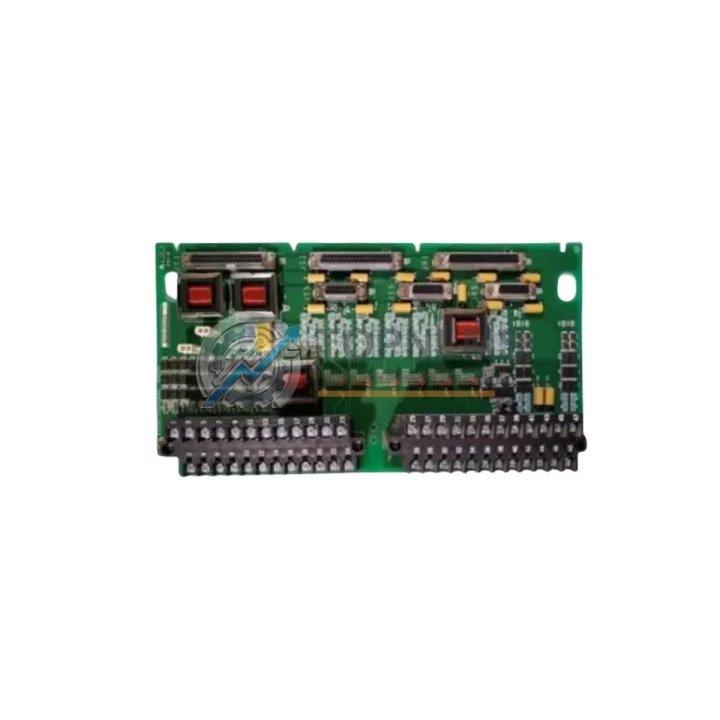

The GE IS200TSVCH2AJE is a Servo Termination Board engineered for the GE Mark VI Turbine Control System — one of the most widely deployed distributed control architectures in gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. As aging Mark VI installations approach end-of-life or face discontinued spare parts availability, plant engineers and procurement teams are increasingly seeking reliable, drop-in replacement solutions that minimize retrofit complexity and eliminate unplanned downtime.

This IS200TSVCH2AJE replacement board is sourced, inspected, and dispatched from our Xiamen warehouse. Each unit undergoes functional verification prior to shipment, ensuring that the servo interface circuitry, terminal block layout, and signal conditioning pathways conform to GE’s original design specifications. Whether you are replacing a failed board on an emergency basis or building a strategic spare parts inventory for a long-term maintenance program, this unit is ready to support your operational continuity with zero re-engineering overhead.

The Mark VI platform was designed with modularity in mind, and the IS200TSVCH2AJE occupies a critical position in the I/O termination layer — bridging the high-level controller logic with the physical servo valve actuators that govern turbine fuel flow, inlet guide vane positioning, and bypass valve control. When this board fails or degrades, the consequences can range from erratic actuator behavior to full turbine trip. A verified, functionally tested replacement unit is the fastest path back to stable operation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Mark VI servo system retrofit rarely involves a single board replacement in isolation. The IS200TSVCH2AJE Servo Termination Board operates in close coordination with several other Mark VI platform components, and understanding these interdependencies is critical to a smooth migration with minimal downtime.

The IS200TSVCH2AJE interfaces directly with the VSVO servo driver module, which generates the analog current commands sent to the hydraulic servo valves controlling turbine inlet guide vanes or fuel control actuators. If the VSVO module itself shows signs of degradation — such as erratic servo positioning or persistent fault codes on the Mark VI operator station — it should be evaluated alongside the termination board replacement. The IS200VSVOH1B servo output board may also be involved depending on your specific Mark VI cabinet configuration and revision level.

On the feedback side, the IS200TSVCH2AJE processes LVDT (Linear Variable Differential Transformer) position signals returning from the actuator. Ensuring that LVDT signal cables are properly shielded and that the IS200TTURH1C turbine I/O termination board is functioning correctly will prevent false position errors after the swap. The IS200TRLYH1B relay output termination board, often installed in the same I/O rack, should also be inspected for contact wear if the cabinet has been in service for more than a decade.

For plants running redundant Mark VI configurations in TMR (Triple Modular Redundancy) mode, the replacement board must be installed in the correct slot of the VCMI communication interface module rack. The VCMI module manages inter-controller voting logic, and any mismatch in board revision or firmware compatibility can trigger protective trips. Always verify the board revision suffix (H2AJE) against your system’s Bill of Materials before installation.

If your migration also involves upgrading the operator interface, a modern panel PC or Cimplicity HMI workstation can be integrated with the Mark VI controller via the existing Ethernet Global Data (EGD) protocol, preserving your existing control logic and alarm structures without requiring a full DCS migration. The IS200EDIOH1A Ethernet data I/O board is commonly used to bridge legacy Mark VI systems to modern SCADA or historian platforms during phased upgrades, making it a natural companion procurement item.

For sites transitioning from older Mark V or Mark IV turbine control systems to Mark VI, the IS200TSVCH2AJE is a key component in the I/O termination layer that must be matched to the new controller’s signal architecture. In these cross-generation migrations, the IS200TBCIH1C terminal board for contact inputs and the IS200TBAIH1C analog input termination board are typically replaced as a set to ensure consistent signal integrity across the upgraded control cabinet. Procuring these components together reduces commissioning time and eliminates compatibility uncertainty during the cutover window.

Power supply integrity is another critical factor in Mark VI servo system reliability. The IS200EPSCG1A power supply board provides regulated DC power to the I/O rack backplane, and a degraded power supply can cause intermittent board faults that are difficult to distinguish from a failed termination board. If your IS200TSVCH2AJE replacement does not immediately resolve the fault condition, the power supply board should be the next item on your diagnostic checklist.

Retrofit Guidance FAQ

Q: Can I replace the IS200TSVCH2AJE without re-wiring the field cables?
A: Yes. The replacement board maintains the identical terminal block layout and pin assignments as the original GE unit. Field wiring connected to the servo valve and LVDT feedback circuits can remain in place. Simply power down the rack, remove the failed board, seat the replacement, and restore power. No re-termination is required under normal circumstances.

Q: Do I need to re-download the control application after swapping the board?
A: In most Mark VI configurations, the servo termination board does not store application logic — it is a passive signal interface layer. The control application resides in the VCMI or controller module. A board swap typically does not require a full application download, though a forced I/O scan or module reset via the Mark VI Toolbox (or ToolboxST) software is recommended to confirm signal integrity after installation.

Q: Is this board compatible with both simplex and TMR Mark VI configurations?
A: Yes. The IS200TSVCH2AJE is used in both simplex and TMR Mark VI architectures. In TMR systems, three boards are installed in parallel across the R, S, and T controller racks. Ensure you replace the board in the correct rack position and verify that the TMR voting logic does not flag a mismatch during the hot-swap or cold-swap procedure.

Q: What communication protocols does the Mark VI system use, and does this board affect them?
A: The Mark VI system communicates via Ethernet Global Data (EGD) and Modbus TCP at the supervisory level, and via the internal IONet backplane at the I/O level. The IS200TSVCH2AJE operates on the IONet backplane. Replacing this board does not affect the EGD or Modbus TCP configuration, which is managed at the VCMI or controller level.

Q: What physical space does the replacement board require?
A: The IS200TSVCH2AJE is a standard Mark VI I/O board form factor. It mounts directly into the existing I/O rack without requiring any cabinet modifications, additional DIN rail space, or bracket adapters. The board dimensions and connector positions are identical to the original — no mechanical adaptation is needed.

Q: How do I verify the board is functioning correctly after installation?
A: After installation, use the GE Mark VI Toolbox or ToolboxST to perform a live I/O diagnostic. Confirm that servo position feedback values are within expected range, that no LVDT fault codes are active, and that the servo output current is tracking the controller demand signal correctly. A manual actuator stroke test is recommended before returning the turbine to service.

Q: What if I am migrating from a Mark V system — is the wiring architecture compatible?
A: Mark V to Mark VI migrations require a full I/O termination board replacement, as the two platforms use different backplane architectures and signal conditioning approaches. The IS200TSVCH2AJE is a Mark VI-native board and is not backward-compatible with Mark V I/O racks. However, it is the correct replacement for the servo termination function in the new Mark VI cabinet during a cross-generation upgrade.

Warranty Assurance

Every GE IS200TSVCH2AJE Servo Termination Board supplied by TOPNLMS is backed by a 12-Month Warranty covering manufacturing defects, functional failures, and signal integrity issues under normal operating conditions. Our pre-shipment inspection process includes visual examination, connector integrity verification, and functional bench testing where applicable.

If a unit develops a fault within the warranty period, TOPNLMS will provide a replacement unit or full refund based on the confirmed failure mode. Our technical support team is available to assist with installation guidance, compatibility verification, and post-installation diagnostics via email and phone — typically responding within one business day.

We maintain stock of Mark VI series boards in our Xiamen warehouse, enabling same-day or next-business-day dispatch for urgent replacement orders. Express international shipping options are available to minimize turbine downtime for power generation facilities worldwide. All shipments include a packing list, commercial invoice, and inspection record suitable for import clearance and plant maintenance documentation.

For procurement teams requiring formal documentation, we can provide inspection reports, test records, and certificates of conformance upon request. Bulk orders for strategic spare parts programs are welcome — contact us to discuss volume pricing and lead time commitments.
