GE DS200SDCCG1AHD Replacement/Upgrade Solution for Mark V LM

Product Overview

GE DS200SDCCG1AHD Replacement/Upgrade Solution for Mark V LM: Seamless Transition from Legacy Speedtronic Systems

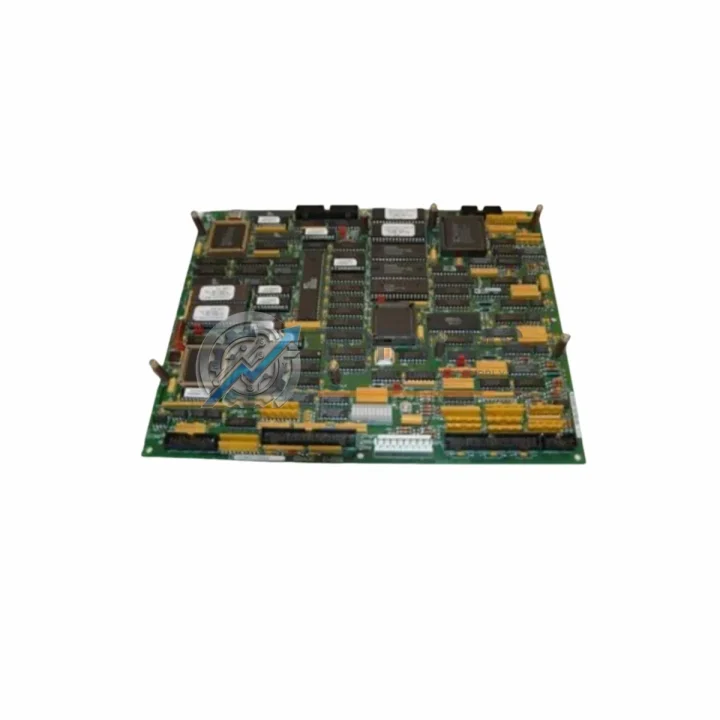

The GE DS200SDCCG1AHD is a Drive Control Card designed for the GE Mark V LM Speedtronic turbine control system — one of the most widely deployed gas turbine control platforms in power generation, oil & gas, and industrial process facilities worldwide. As the Mark V LM platform approaches end-of-life and OEM support becomes increasingly limited, plant engineers and procurement teams face a critical decision: source a verified replacement card to maintain system continuity, or plan a phased migration to a supported control architecture.

TOPNLMS supplies the DS200SDCCG1AHD as a direct replacement and upgrade solution, fully tested and backed by a 12-month warranty. Whether you are restoring a tripped turbine, building a critical spare inventory, or executing a planned retrofit, this card is ready to ship from our Xiamen warehouse with same-week dispatch on confirmed orders.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DS200SDCCG1AHD replacement rarely happens in isolation. In most Mark V LM turbine control panels, the SDCC card works in close coordination with several other boards and modules. During a planned outage or emergency swap, engineers commonly address adjacent components to prevent repeat failures and reduce future downtime risk.

The DS200TCQAG1B Turbine Control Quad Analog card is frequently replaced alongside the SDCC, as both share the same backplane and handle analog signal conditioning for speed, temperature, and pressure inputs. Similarly, the DS200TCQCG1B and DS200TCQEG1B variants are common spares in the same control cabinet, covering redundant I/O channels across the turbine protection loop.

Power integrity is critical in Mark V LM systems. The DS200PSVCG1A and DS200PSVBG1A power supply cards provide the regulated DC rails that the DS200SDCCG1AHD depends on. If the SDCC has failed due to a power transient, inspecting and replacing the PSVC or PSVB card as part of the same maintenance window is strongly recommended to prevent recurrence.

Communication continuity between the Mark V LM controller and the HMI or historian is maintained through the DS200IOCAG1A I/O Controller card, which manages the ARCNET network interface. Customers migrating from older Mark V configurations to a Mark VIe architecture will also need to evaluate the IS420UCSBH2A Universal Controller board as part of their upgrade path, as it serves as the modern equivalent of the legacy SDCC function block in the new platform.

For sites planning a phased migration rather than a direct swap, the DS200DSPCH1A Digital Signal Processor card and the DS200EXPSG1ADA Expansion card are commonly sourced together to extend the functional life of the existing Mark V LM rack while new control infrastructure is commissioned in parallel. Terminal boards such as the DS200TBCBG1AAA provide the field wiring interface and can be retained without modification during a card-level replacement, preserving existing cable schedules and reducing commissioning time significantly.

All of the above components are available through TOPNLMS. Consolidated orders for multiple Mark V LM cards ship together, reducing freight cost and simplifying incoming inspection at your facility.

Retrofit Guidance FAQ

Q: Do I need to rewire the field terminals when replacing the DS200SDCCG1AHD?
A: No. The DS200SDCCG1AHD connects to the field via the Mark V LM backplane and terminal boards (e.g., DS200TBCBG1AAA). Field wiring terminates at the terminal board, not directly on the card. A card-level swap requires no rewiring.

Q: Will the existing Mark V application program run on the replacement card?
A: Yes, for a like-for-like suffix replacement. The application code resides in the Mark V LM controller (TCCA/TCCB) and is downloaded to the SDCC at startup. No reprogramming is required for a direct swap. Verify the firmware revision level matches your system’s requirements before installation.

Q: Is the ARCNET communication protocol fully compatible?
A: Yes. The DS200SDCCG1AHD uses the same ARCNET-based internal communication bus as all Mark V LM SDCC variants. No protocol conversion or additional hardware is needed.

Q: What if my control cabinet has limited space for staging during the swap?
A: The DS200SDCCG1AHD is a single-slot VME-style card. Replacement is performed by powering down the affected controller section, extracting the failed card, and inserting the replacement. No additional rack space or panel modification is required.

Q: How do I verify the card is functioning correctly after installation?
A: After insertion, the Mark V LM system performs a self-diagnostic sequence. Monitor the diagnostic LEDs on the card face and review the Mark V LM diagnostic display for any fault codes. TOPNLMS provides post-sale technical support to assist with commissioning verification.

Q: Can this card be used in a redundant (TMR) Mark V LM configuration?
A: Yes. The DS200SDCCG1AHD is compatible with both simplex and Triple Modular Redundant (TMR) Mark V LM configurations. Ensure all three SDCC slots in a TMR system are populated with compatible revision cards for proper voting logic operation.

Warranty Assurance

Every DS200SDCCG1AHD supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point outgoing inspection including visual examination, board-level continuity checks, and functional verification against known-good reference systems where applicable.

If a unit develops a fault within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Our after-sales response target is 24 hours for initial fault assessment, with replacement units dispatched within 3–5 business days subject to stock availability.

We maintain a standing inventory of Mark V LM Speedtronic components to support emergency procurement requirements. Express shipping via DHL, FedEx, or UPS is available for time-critical orders, with tracking provided at the time of dispatch. All units ship from our Xiamen facility with full commercial documentation including packing list, invoice, and certificate of conformance.

For volume orders, long-term supply agreements, or consignment stock arrangements, please contact our sales team directly to discuss pricing and lead time commitments.
