GE IS200TBCIS2CCD Replacement/Upgrade Solution for Mark VI

Product Overview

GE IS200TBCIS2CCD Replacement/Upgrade Solution for Mark VI: Smooth Migration from Legacy Turbine Control

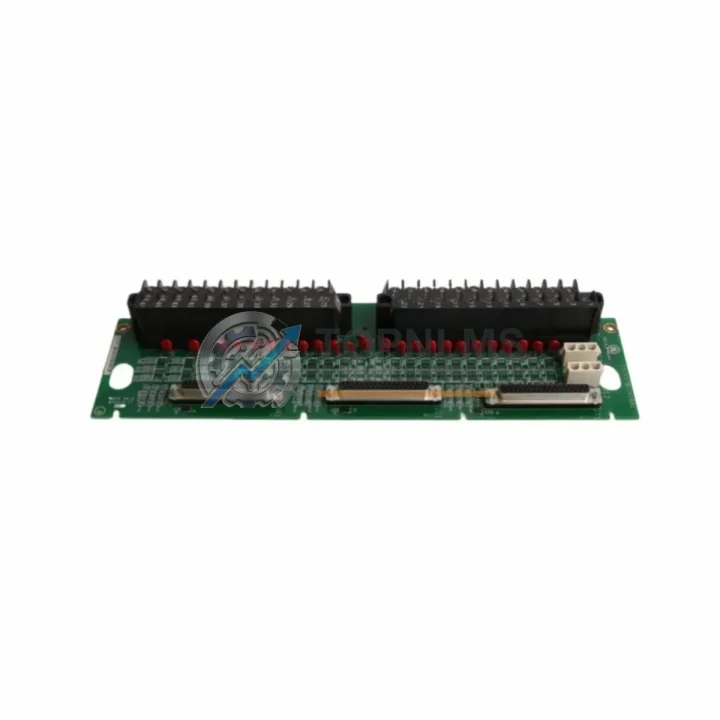

The GE IS200TBCIS2CCD is a high-reliability Turbine Control Processor Board engineered for the GE Mark VI turbine control platform. As legacy Mark V and early Mark VI installations approach end-of-life, plant engineers and procurement teams increasingly require a verified, drop-in replacement that preserves existing wiring infrastructure, communication architecture, and control logic — while eliminating the risk of unplanned downtime caused by obsolete or counterfeit components.

The IS200TBCIS2CCD integrates directly into the standard Mark VI rack without panel modification. It operates on the IONet communication backbone — GE’s proprietary 100 Mbps Ethernet-based I/O network — and is fully compatible with ToolboxST configuration downloads. Whether you are replacing a failed board during an emergency shutdown or executing a planned modernization outage, this unit is designed to restore turbine control system integrity with minimum commissioning time.

TOPNLMS maintains ready stock of the IS200TBCIS2CCD, sourced from verified supply channels and subjected to pre-shipment functional testing. Each unit ships with a 12-month replacement warranty, full traceability documentation, and ESD-safe packaging. Standard lead time from our Xiamen warehouse is 3–7 business days for international destinations, with expedited options available for emergency shutdowns.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Mark VI turbine control modernization rarely involves a single board swap. In practice, the IS200TBCIS2CCD replacement is most effective when coordinated with the broader control system architecture. During migration planning, engineers typically audit the full Mark VI panel, which commonly includes the IS200VCRCH1BBB VME controller card and the IS200EPCTG1A power supply module — both sharing the same 24 VDC distribution rail and IONet backbone as the TBCIS2CCD. Replacing these components in the same planned outage window eliminates the risk of a secondary failure shortly after the primary repair.

For plants upgrading from Mark V, the transition requires replacing the legacy ARCNET communication interface with IONet-compatible modules. In these cross-generation migrations, the IS200BICLH1A I/O link controller and the IS200DSPXH1DBB digital signal processor board are commonly replaced in the same outage to ensure protocol consistency across the control network. The IS200TTURH1CBB turbine terminal board is also frequently refreshed during the same retrofit, as its firmware dependencies align with the processor board revision being installed.

Relay and servo output integrity is equally critical during turbine control upgrades. The IS200TRLYH1BCC relay output terminal board and the IS200TSVOH1BDD servo terminal board are standard candidates for simultaneous replacement, particularly when the existing units show signs of contact wear or calibration drift. In multi-turbine installations, the IS200GDDDH1A gate drive board and the IS200STCIH1ACD static transfer control interface are often included in the same upgrade scope, especially when the plant is standardizing on a unified ToolboxST software version across all generating units.

Where the existing control cabinet includes third-party signal conditioning equipment, engineers should verify compatibility of signal isolators and terminal multiplexers before finalizing the bill of materials. TOPNLMS can supply the full range of Mark VI compatible modules from verified stock, enabling customers to consolidate procurement, reduce vendor complexity, and ship all components in a single consignment — minimizing customs clearances and simplifying incoming inspection at site.

Retrofit Guidance FAQ

Q: Can I replace the IS200TBCIS2CCD without rewiring the terminal blocks?
A: In most Mark VI retrofit scenarios, yes. The IS200TBCIS2CCD uses the same terminal block pinout as the original board. However, always cross-reference the site-specific I/O drawing (GEH-6721 or equivalent) before installation to confirm wiring compatibility for your specific revision.

Q: Do I need to reload the ToolboxST application after replacement?
A: Yes. After installing the replacement board, a ToolboxST download is required to synchronize the application configuration. The existing application file can be used without modification in most cases, provided the hardware revision is compatible. Consult GE Mark VI Application Guide GEH-6700 for revision-specific guidance.

Q: Is IONet communication automatically restored after board swap?
A: IONet communication is re-established automatically once the board is powered and the ToolboxST download is complete. Verify network switch port assignments and IP addressing in the IONet configuration if communication does not initialize within the expected startup sequence.

Q: What if the physical slot dimensions differ from the original board?
A: The IS200TBCIS2CCD conforms to the standard Mark VI VME-style form factor. No panel modification is required for direct slot replacement. If your panel uses a non-standard mounting arrangement, contact our technical team with the panel drawing for pre-installation verification.

Q: Can this board be used in a Mark VIe system?
A: The IS200TBCIS2CCD is designed for the Mark VI platform. Mark VIe uses a different I/O architecture (IONET vs. Ethernet I/O). Compatibility with Mark VIe should be verified against GE’s Mark VIe hardware compatibility matrix before ordering.

Q: How do I verify the board is genuine before installation?
A: Each unit supplied by TOPNLMS includes a pre-shipment test report and traceability documentation. Visual inspection of the board label, revision marking, and component date codes is recommended. Contact our team for the test report before installation if any doubt exists.

Warranty Assurance

Every IS200TBCIS2CCD unit dispatched by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Our pre-shipment inspection protocol includes functional power-on testing, visual inspection for physical damage, and verification of revision markings against the order specification. Units that fail inspection are quarantined and never shipped.

In the event of a warranty claim, TOPNLMS will dispatch a replacement unit within 5 business days of receiving the defective board and confirming the fault. Return shipping costs for warranty replacements are covered by TOPNLMS for orders above the minimum value threshold — contact our sales team for details applicable to your order.

Our after-sales response team is reachable via email at [email protected] or by phone at +86 18359293191. We provide technical pre-sales consultation, installation guidance, and post-delivery support to ensure your retrofit project proceeds without interruption.

For bulk procurement, project-based pricing, and consolidated shipment of multiple Mark VI components, please contact our sales team directly. We support EXW Xiamen, FOB Xiamen, and CIF terms, with full export documentation including commercial invoice, packing list, and certificate of origin.
