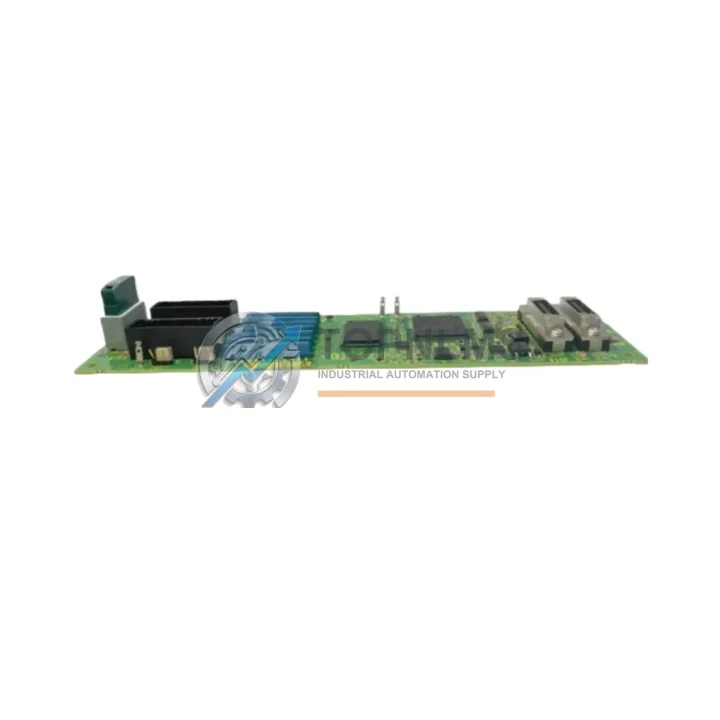

FANUC A20B-2004-038 Original Industrial Spare PCB — System Stability for CNC Precision Control

The FANUC A20B-2004-038 is an original printed circuit board engineered for FANUC CNC control systems operating in demanding industrial environments. As a core component of the A20B-2004 series, this PCB governs critical signal processing and axis control functions within FANUC 0i, 16i, 18i, and 21i series controllers. Sourced directly from verified supply channels, each unit undergoes functional testing prior to dispatch, ensuring drop-in compatibility and immediate operational readiness upon installation.

For maintenance engineers managing aging CNC machining centers, milling machines, or turning centers, the availability of a genuine A20B-2004-038 spare board is a decisive factor in minimizing unplanned downtime. FANUC’s A20B-2004 series PCBs are widely deployed across automotive, aerospace, and precision manufacturing facilities worldwide, making reliable spare inventory a cornerstone of any proactive maintenance strategy.

Critical Technical Specs

Preventive Maintenance Strategy

When a FANUC CNC system triggers an alarm or exhibits erratic axis behavior, the A20B-2004-038 PCB is frequently identified as the root cause — particularly in systems that have been in continuous operation for five or more years. However, experienced maintenance teams understand that a single board failure rarely occurs in isolation. A comprehensive inspection of the control cabinet at the time of replacement is strongly recommended to prevent repeat failures and extend system service life.

During a scheduled or emergency maintenance window involving the A20B-2004-038, technicians should simultaneously inspect the FANUC A06B-6096 servo amplifier module, as shared bus voltage fluctuations can stress both components concurrently. The A16B-2202 main CPU board should be checked for capacitor aging and solder joint integrity, especially in high-vibration environments. If the machine uses a FANUC βi or αi servo drive, the associated A06B-6140 or A06B-6160 servo drive units warrant inspection for thermal damage or IGBT degradation.

Power supply integrity is equally critical. The A20B-8100-0660 FANUC power supply unit should be load-tested to confirm stable DC output rails, as undervoltage conditions are a leading cause of PCB failure. Alongside the power supply, inspect the A02B-0323-B502 or equivalent operator panel interface board for connector corrosion and ribbon cable wear — these are common failure points in older cabinets that are often overlooked during reactive maintenance.

For systems relying on FANUC I/O Link architecture, the A20B-2002-0520 I/O module and associated terminal block assemblies should be checked for loose wiring and oxidized contacts. Signal integrity issues at the I/O layer can mimic PCB faults and lead to misdiagnosis. If the machine communicates via FANUC FOCAS or Ethernet, the A20B-8101-0900 communication board should be verified for firmware version compatibility following any PCB swap.

Battery-backed memory retention is another area of concern during extended downtime. The A98L-0031-0012 lithium battery used in FANUC CNC units should be replaced proactively if the system has been powered down for more than 30 days, as parameter and program loss can occur. Finally, the FANUC MDI/LCD unit (A02B-0319-B502 or equivalent) should be inspected for display anomalies that may indicate shared power rail issues with the control PCB.

Stocking these components alongside the A20B-2004-038 as a coordinated spare kit significantly reduces mean time to repair (MTTR) and supports a shift from reactive to predictive maintenance posture.

Strategic Replacement Solutions

The A20B-2004-038 is a direct replacement for aging or failed boards within the FANUC A20B-2004 series, offering full pin-compatible installation without requiring parameter reconfiguration in most 0i and 16i/18i controller variants. For facilities managing legacy CNC equipment beyond its original design life, maintaining a genuine spare board eliminates the risk of extended lead times associated with factory repair cycles, which can range from four to twelve weeks.

Unlike third-party remanufactured alternatives, original FANUC A20B-series boards retain full compatibility with FANUC’s diagnostic software suite, enabling technicians to perform servo tuning, alarm history review, and parameter backup without compatibility warnings. This is particularly valuable in regulated manufacturing environments where traceability and OEM compliance are audit requirements.

For facilities operating multiple FANUC-controlled machines, a centralized spare parts inventory strategy — holding one A20B-2004-038 per three to five machines — is a widely adopted industry benchmark. This approach balances carrying cost against the financial exposure of unplanned downtime, which in high-throughput machining environments can exceed the cost of the spare board within the first hour of stoppage.

Each unit shipped from TOPNLMS is individually tested, serialized, and packed in anti-static ESD-safe packaging with a humidity indicator card. Express international shipping is available to minimize logistics lead time in emergency scenarios.
