GE IS200EHPAG1DAB Original Industrial Spare Mark VI Compatible

Product Overview

GE IS200EHPAG1DAB Original Industrial Spare Mark VI Compatible: Ensuring Exciter System Stability in Critical Power Generation Environments

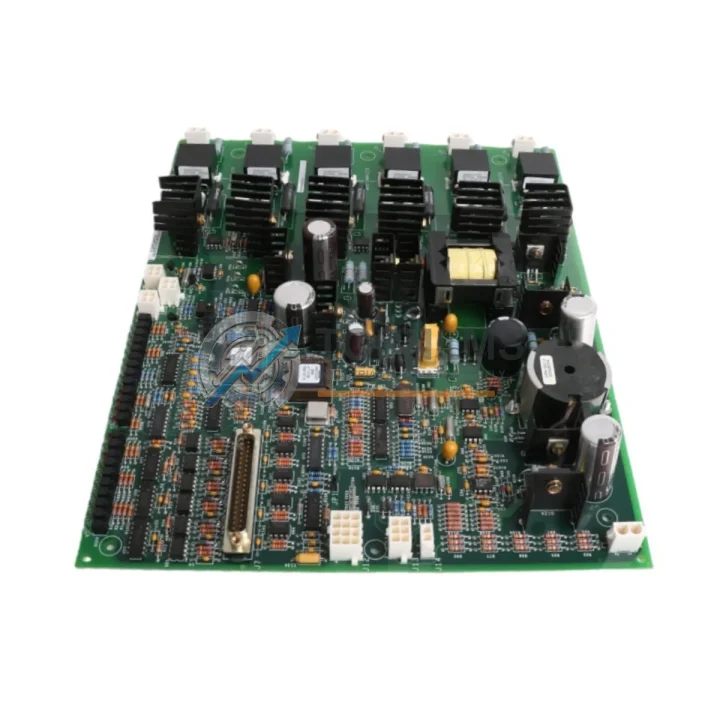

The GE IS200EHPAG1DAB is an original exciter gate pulse amplifier board designed for GE’s Mark VI turbine control system and the EX2100 digital excitation control platform. This board plays a mission-critical role in generating and distributing precise gate pulse signals to the thyristor bridge within the excitation circuit, directly governing rotor field current and, by extension, generator terminal voltage stability. In power generation facilities, petrochemical plants, and heavy industrial environments where unplanned downtime carries severe operational and financial consequences, maintaining a verified spare of the IS200EHPAG1DAB is a foundational element of any responsible maintenance strategy.

Whether you are managing a scheduled outage, responding to an unplanned trip, or building a proactive spare parts inventory for aging Mark VI or EX2100 systems, the IS200EHPAG1DAB represents one of the highest-priority boards to stock. Its failure mode — loss of gate pulse output — results in immediate exciter shutdown and generator de-excitation, making rapid replacement capability essential to minimizing mean time to repair (MTTR).

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your Excitation System and Turbine Control Cabinet

Experienced maintenance engineers understand that the IS200EHPAG1DAB does not operate in isolation. The gate pulse amplifier board is one node in a tightly integrated excitation and turbine control architecture. When planning a scheduled outage or responding to an exciter fault, a thorough inspection of the surrounding system is not just advisable — it is essential to preventing repeat failures and ensuring a clean return to service.

During any maintenance window involving the IS200EHPAG1DAB, technicians should simultaneously inspect the IS200EACFG1A exciter AC feedback board, which provides the voltage and current feedback signals that the gate pulse amplifier relies on for accurate firing angle calculation. A degraded feedback signal will cause the IS200EHPAG1DAB to produce incorrect gate pulses even after replacement, leading to persistent exciter instability. Alongside this, the IS200EPSMG1A power supply module within the EX2100 cabinet should be verified for output voltage stability — an under-voltage condition on the internal DC bus is a common root cause of gate pulse board failures that goes undetected without deliberate measurement.

The IS200ESELH1A exciter selector board governs the switching logic between redundant excitation channels in dual-channel EX2100 configurations. If your facility operates a redundant exciter arrangement, this board should be inspected for contact wear and logic integrity during the same outage. Similarly, the IS200ECTBG1A exciter control terminal board — which interfaces field wiring to the EX2100 internal bus — should be checked for terminal torque, insulation resistance, and any signs of thermal stress or corrosion, particularly in humid or coastal environments.

At the Mark VI turbine control level, the IS200TTURH1CBB turbine control board and associated IS200TREGH1A voltage regulator board interact directly with the excitation system through the ARCNET or IONet communication backbone. Any communication fault or timing drift at the Mark VI controller level can manifest as erratic exciter behavior, making it important to verify controller firmware versions and communication health during exciter-related outages. The IS200IOCAG1A I/O controller board and IS200DSPXH1DBB digital signal processor board are also worth inspecting, as they handle the real-time control loops that govern AVR (Automatic Voltage Regulator) response.

For facilities managing older Mark VI installations, the IS200VSVOH1B servo output board and IS200TRLYH1BEC relay output board are frequently overlooked during exciter-focused maintenance but are integral to the overall turbine protection and trip logic. Stocking these boards alongside the IS200EHPAG1DAB as part of a structured critical-spares inventory significantly reduces the risk of a secondary failure extending an already costly outage.

Finally, do not overlook the EX2100 fiber optic gate pulse cables that carry signals from the IS200EHPAG1DAB to the thyristor firing circuits. These cables are subject to bending fatigue and connector degradation over time, and a failed cable can mimic a board fault during troubleshooting, leading to unnecessary board replacements. Inspecting and, where appropriate, replacing these cables during the same maintenance window is a low-cost action that eliminates a common diagnostic ambiguity.

Strategic Replacement Solutions: Reducing Downtime and Extending Mark VI / EX2100 System Life

Many power generation facilities and industrial plants operating GE Mark VI and EX2100 systems face a common strategic challenge: OEM support lifecycles are finite, lead times for new boards can extend to weeks or months, and the cost of a single unplanned outage far exceeds the cost of maintaining a well-structured spare parts inventory. The IS200EHPAG1DAB addresses this challenge directly by providing a genuine OEM replacement that requires no firmware modification, no recalibration of the AVR control loop, and no changes to the existing cabinet wiring or I/O configuration.

For facilities that have previously operated with repaired or third-party substitute boards, returning to an original IS200EHPAG1DAB eliminates the compatibility uncertainty that repaired boards introduce — particularly with respect to gate pulse timing accuracy and thyristor firing symmetry, which are critical to minimizing harmonic distortion in the excitation output and protecting the rotor winding from thermal stress caused by asymmetric current distribution.

From a lifecycle management perspective, facilities running Mark VI systems installed in the late 1990s through the 2010s should treat the IS200EHPAG1DAB as a long-lead strategic spare rather than a reactive purchase. Procuring one or two units as part of an annual MRO review cycle — alongside other high-criticality IS200 series boards — provides insurance against supply chain disruptions and ensures that your maintenance team can execute a board swap within hours rather than waiting weeks for emergency procurement.

All IS200EHPAG1DAB units supplied by TOPNLMS are sourced from verified channels, subjected to functional testing prior to shipment, and covered by a 12-month warranty from the date of dispatch. Units are packaged in anti-static protective packaging with appropriate cushioning for international freight, and documentation including test records is available upon request.

Support FAQ

Q1: Is the IS200EHPAG1DAB compatible with both Mark VI and EX2100 systems?
The IS200EHPAG1DAB is designed for use within GE’s EX2100 digital excitation control platform, which is typically deployed in conjunction with the Mark VI turbine control system. Compatibility depends on your specific cabinet configuration and firmware revision. We recommend providing your cabinet serial number or system configuration drawing for confirmation prior to ordering if you have any uncertainty about fit.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers functional failure of the board under normal operating conditions, excluding damage caused by incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, contact us at [email protected] with your order reference and a description of the fault. We will arrange for evaluation and, where the claim is validated, replacement or repair at no additional cost.

Q3: How is the board tested before shipment?
Each IS200EHPAG1DAB unit undergoes a functional verification process prior to dispatch, which includes power-on testing and output signal verification where test infrastructure permits. Test records are available upon request. Units are shipped in anti-static packaging to prevent ESD damage during transit.

Q4: What is the recommended inventory strategy for IS200 series boards in aging Mark VI installations?
For facilities with a single Mark VI / EX2100 system, we recommend maintaining a minimum of one IS200EHPAG1DAB as an on-site critical spare, reviewed annually as part of your MRO cycle. For multi-unit installations or facilities with high availability requirements, a two-unit buffer is advisable. Pairing this with spares for the IS200EACFG1A, IS200EPSMG1A, and IS200ESELH1A boards provides comprehensive coverage of the most failure-prone exciter subsystems.
