GE DS3800NMEC1K1K Replacement/Upgrade for Mark IV Speedtronic: Smooth Transition, Zero Compromise

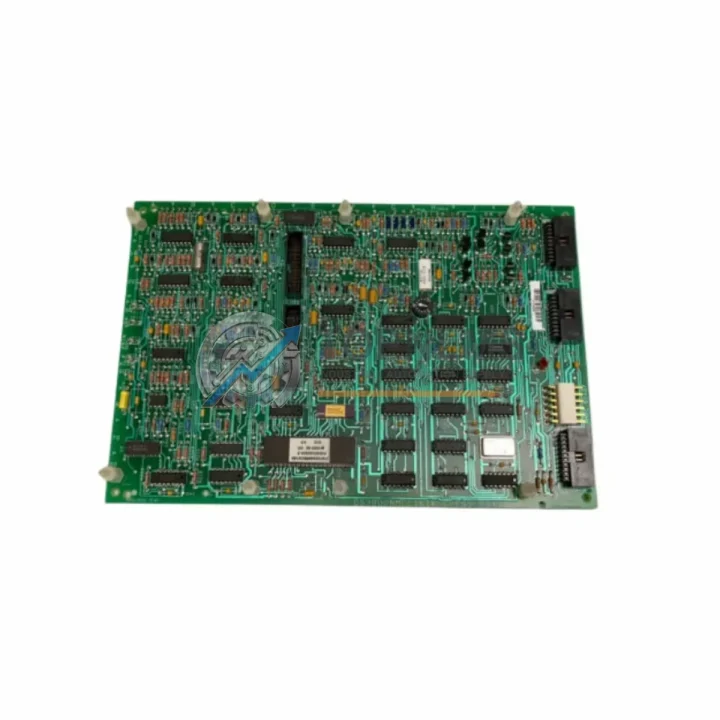

The GE DS3800NMEC1K1K is a critical PC board within the GE Mark IV Speedtronic turbine control system — a platform that has powered gas turbines, steam turbines, and combined-cycle power generation facilities for decades. As the Mark IV platform ages and OEM support diminishes, facilities engineers and maintenance teams face a growing challenge: sourcing reliable, drop-in compatible replacement boards that preserve system integrity without forcing a full control system overhaul. TOPNLMS specializes in exactly this scenario, supplying tested, original DS3800NMEC1K1K boards with full compatibility assurance and a 12-month warranty.

Whether your facility is managing a planned outage, responding to an unscheduled trip, or building a strategic spare parts inventory to extend the life of your Mark IV system, the DS3800NMEC1K1K represents a high-value procurement decision. This board integrates directly into the existing Mark IV panel architecture, requiring no firmware re-engineering, no rewiring of the turbine I/O terminal blocks, and no modification to the existing ARCNET communication backbone that links the Mark IV controllers. Facilities currently operating aging or discontinued Mark IV boards can achieve a seamless upgrade without halting production or committing to a full platform migration.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the DS3800NMEC1K1K is rarely an isolated task. In most Mark IV turbine control cabinets, this board operates alongside a network of interdependent components, and a thorough upgrade or migration plan should account for the condition of each. During the board swap, experienced maintenance teams typically inspect the DS3800DMPG power supply board, which provides the regulated DC rails that the DS3800NMEC1K1K depends on — a degraded power supply is a common root cause of board failures and should be replaced proactively if it shows signs of capacitor aging or voltage drift.

The DS3800HPID and DS3800HPIB I/O interface boards, which handle analog and digital signal conditioning between the turbine field instruments and the Mark IV controllers, are also worth evaluating during the same outage window. Replacing a faulty DS3800NMEC1K1K while leaving aging I/O boards in service risks a repeat failure event within months. Similarly, the DS3800NTBA and DS3800NTBB terminal board assemblies — which provide the physical wiring interface between field cables and the Mark IV backplane — should be inspected for corrosion, loose terminations, and connector wear before the replacement board is commissioned.

For facilities running the Mark IV in a redundant R, C, P triple-redundant configuration, the DS3800HPRA redundancy arbitration board governs which controller channel is in command. If the DS3800NMEC1K1K failure was accompanied by unexpected channel switching or voting logic anomalies, the DS3800HPRA should be tested and potentially replaced as part of the same migration scope. The DS3800ARCT ARCNET communication module, which links the Mark IV panels to the operator interface and historian systems, should also be verified for signal integrity — particularly in older installations where coaxial cable connectors may have degraded over years of thermal cycling.

Facilities that are taking the opportunity to partially modernize their Mark IV installation may also consider upgrading the operator interface from legacy CRT-based HMI terminals to modern flat-panel replacements compatible with the Mark IV communication architecture. While the DS3800NMEC1K1K itself does not require HMI changes, a concurrent HMI refresh reduces long-term support risk across the control system. Finally, the DS3800UDSB UPS module and battery backup system should be tested during any planned outage — an undersized or aging UPS is a silent threat to board longevity across the entire Mark IV control panel, and proactive replacement during the same maintenance window eliminates a second unplanned outage.

Retrofit Guidance FAQ

Q: Can the DS3800NMEC1K1K be installed without modifying existing field wiring?
A: Yes. The DS3800NMEC1K1K uses the same connector pinout and terminal board interface as the original board. No rewiring of field cables or I/O terminations is required for a direct replacement. Technicians should verify connector seating and inspect terminal board contacts for corrosion before powering up the replacement board.

Q: Is the ARCNET communication protocol fully preserved after the board swap?
A: Yes. The DS3800NMEC1K1K communicates over the same ARCNET bus as the original board. No changes to network addressing, baud rate settings, or communication cable routing are required. The Mark IV system will recognize the replacement board on the existing bus topology without any software reconfiguration.

Q: What physical space and rack requirements apply to this replacement?
A: The DS3800NMEC1K1K is a direct form-factor replacement for the original board. It occupies the same slot in the Mark IV panel and requires no additional mounting hardware, spacers, or panel modifications. Verify that the slot guide rails are undamaged and clean before insertion to ensure proper seating and electrical contact.

Q: How do I verify compatibility with my specific Mark IV application before ordering?
A: Provide your turbine unit tag, Mark IV panel serial number, and existing board part number (including revision suffix) to TOPNLMS. Our technical team will cross-reference your configuration and confirm compatibility before shipment. All boards are tested against standard Mark IV electrical parameters prior to dispatch.

Q: What is the typical commissioning procedure after installing the replacement board?
A: After physical installation, power up the Mark IV panel and verify that the board is recognized on the ARCNET bus. Confirm that all I/O channels are reading correctly against known reference values from your turbine instrumentation. Run a controlled start sequence under supervision before returning the unit to full automatic operation. TOPNLMS technical support is available during commissioning if questions arise.

Warranty Assurance

Every DS3800NMEC1K1K supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes functional testing against GE Mark IV electrical specifications, including power rail verification, communication bus response, and I/O signal integrity checks. Boards that do not meet specification are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement or repair support with priority handling to minimize your facility’s exposure to extended downtime. Our after-sales team responds to warranty inquiries within one business day. Replacement boards are dispatched from our Xiamen warehouse with expedited freight options available for urgent situations. Volume orders for spare parts programs are accommodated with lead-time commitments and documentation packages including test reports and certificates of conformance upon request.

TOPNLMS maintains a standing inventory of Mark IV Speedtronic boards to support both planned procurement and emergency replacement scenarios. All shipments include packing documentation, and export compliance paperwork is available for international orders upon request.
