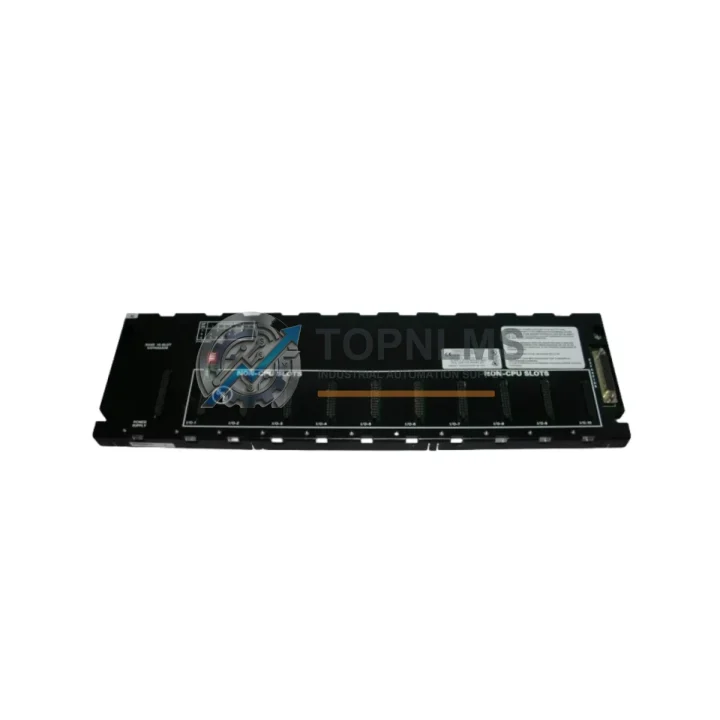

GE IC693CHS393 Ruggedized I/O Expansion Chassis: Industrial Resilience for Harsh Environments

The GE IC693CHS393 is a 9-slot remote I/O expansion chassis engineered for the GE Fanuc Series 90-30 PLC platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. Designed to extend the I/O capacity of Series 90-30 CPU systems across distributed field installations, the IC693CHS393 delivers the structural rigidity, electrical isolation, and thermal tolerance demanded by continuous-process industries operating in extreme conditions.

In environments where ambient temperatures fluctuate between sub-zero cold storage facilities and the radiant heat of steel furnace control rooms, where vibration from heavy rotating machinery is constant, and where airborne particulates from cement, coal, or mineral processing threaten electronic longevity, the IC693CHS393 chassis provides a mechanically robust mounting platform that keeps your I/O modules seated, grounded, and communicating without interruption. Its backplane architecture supports seamless integration with the full range of Series 90-30 I/O modules — including discrete input modules such as the IC693MDL645, analog output modules like the IC693ALG392, and high-density mixed I/O assemblies — allowing engineers to configure field-side control cabinets with the exact signal mix required by the process.

The chassis connects to the Series 90-30 CPU base via the IC693CBL300 or IC693CBL301 remote I/O cables, enabling physical separation of the controller from field-mounted I/O racks by distances suitable for large plant layouts. This distributed architecture is particularly valuable in oil refinery control rooms, water treatment SCADA panels, and mining hoist control systems where the CPU must be located in a protected enclosure while I/O modules are positioned closer to field instruments and actuators. The IC693CHS393 supports the full complement of Series 90-30 power supply options, including the IC693PWR321 and IC693PWR330 power supply modules, ensuring stable 5 VDC backplane power delivery even under fluctuating utility input conditions.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC693CHS393 does not operate in isolation — it is the structural backbone of a distributed I/O subsystem that depends on the coordinated reliability of every component in the control cabinet. When paired with the IC693PWR321 power supply module, the chassis receives clean, regulated backplane power that protects sensitive I/O circuitry from voltage spikes and brownouts common in heavy industrial environments. Discrete input modules such as the IC693MDL645 (32-point 24 VDC input) slot directly into the chassis and provide the field-side signal acquisition needed for motor status feedback, valve position sensing, and safety interlock monitoring.

For analog process control loops — temperature, pressure, flow — the IC693ALG392 analog output module integrates seamlessly into the same chassis, enabling the Series 90-30 CPU to issue 4–20 mA control signals to variable frequency drives and control valves without additional signal conditioning hardware. In applications requiring high-speed counter inputs or encoder feedback from rotating machinery, the IC693APU300 high-speed counter module can occupy one of the nine available slots, extending the chassis’s functional scope beyond standard discrete and analog I/O.

Communication integrity between the remote chassis and the host CPU is maintained through the Series 90-30 remote I/O scanner, and the system architecture supports coexistence with IC693CMM321 communications modules for Ethernet connectivity, enabling integration with SCADA systems and historian platforms. In safety-critical zones, the chassis can be installed alongside IC693MDL940 relay output modules, which provide galvanic isolation between the PLC backplane and high-voltage field loads — a critical protection layer in environments where arc flash risk or ground fault conditions are present. The overall system, when properly configured with appropriate surge protection devices and shielded cable assemblies, meets the electromagnetic compatibility requirements of IEC 61131-2 for industrial control equipment.

Application in Critical Infrastructure

In petroleum refining and upstream oil and gas production, the IC693CHS393 is deployed in remote I/O panels mounted within classified hazardous areas (Zone 2 / Division 2 enclosures) where the chassis interfaces with pressure transmitters, flame detectors, and emergency shutdown valve actuators. The 9-slot capacity allows a single remote chassis to consolidate the I/O requirements of an entire process unit — compressor control, separator level monitoring, and flare stack management — reducing panel footprint and cable runs in congested skid installations.

In coal-fired and hydroelectric power generation facilities, the chassis supports turbine governor control systems and boiler management applications where continuous uptime is non-negotiable. The ability to hot-swap individual I/O modules (where supported by the CPU configuration) minimizes planned maintenance windows and eliminates the need for full system shutdowns during module replacement. Water treatment plants operating 24/7 rely on the IC693CHS393 to maintain uninterrupted communication between SCADA control rooms and field-mounted actuators controlling chlorination dosing pumps, filtration backwash valves, and effluent discharge gates.

In metallurgical and steel production environments, where radiated heat from furnaces and induction heaters creates sustained high-temperature operating conditions, and where electromagnetic interference from large motor drives and arc furnaces is pervasive, the IC693CHS393’s robust backplane design and shielded module connectors maintain signal integrity across all installed I/O channels. Mining operations — from underground coal extraction to open-pit copper processing — deploy the chassis in conveyor control panels, crusher automation systems, and ventilation fan control cabinets where dust ingress, mechanical shock, and vibration are daily operating realities.

Security & Quality FAQ

Q1: Does the IC693CHS393 come with a warranty?
Yes. Every IC693CHS393 unit supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair support.

Q2: How is each unit tested before shipment?
All IC693CHS393 chassis units undergo pre-shipment functional inspection including backplane continuity verification, slot connector integrity checks, and visual inspection for physical damage. Units sourced from verified supply channels are cross-referenced against GE Automation part number databases to confirm authenticity and revision compatibility.

Q3: Is the IC693CHS393 compatible with all Series 90-30 I/O modules?
Yes. The IC693CHS393 is fully compatible with the complete GE Fanuc Series 90-30 I/O module library, including discrete, analog, specialty, and communications modules. It is also compatible with all Series 90-30 power supply variants and remote I/O cable assemblies. Customers are advised to confirm CPU firmware revision compatibility for specialty modules.

Q4: Can TOPNLMS support long-term or repeat procurement of the IC693CHS393?
Yes. TOPNLMS maintains stock of the IC693CHS393 and related Series 90-30 components to support both emergency replacement and planned maintenance procurement programs. We offer stable pricing, consistent lead times, and technical pre-sales support to help engineering teams validate compatibility before purchase. Contact us for volume pricing and availability confirmation.
