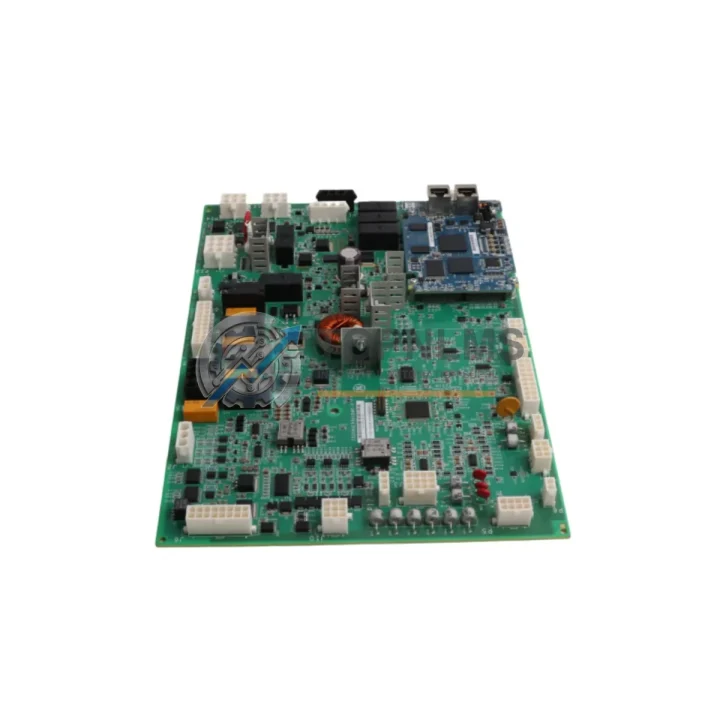

GE IS200AEPAH1BMF-P Ruggedized Excitation Protection Module

Product Overview

GE IS200AEPAH1BMF-P IS210BPPCH1AD: Industrial Resilience for Harsh-Environment Excitation Control

The GE IS200AEPAH1BMF-P paired with the IS210BPPCH1AD represents a mission-critical dual-board assembly at the heart of the GE Mark VI and EX2100 excitation control platform — one of the most demanding and reliability-critical systems deployed in power generation, oil & gas, and heavy industrial facilities worldwide. Engineered for continuous operation under extreme thermal cycling, high-humidity atmospheres, vibration-intensive machinery environments, and sites with significant electromagnetic interference (EMI), this assembly delivers the analog signal conditioning and backplane communication integrity that modern turbine excitation systems demand.

The IS200AEPAH1BMF-P serves as the analog excitation protection board, responsible for monitoring and protecting generator excitation circuits against overvoltage, overcurrent, and field ground faults. It interfaces directly with the IS210BPPCH1AD backplane interface board, which manages high-density I/O routing and inter-board communication across the Mark VI controller chassis. Together, they ensure that excitation control commands are executed with microsecond-level precision — a non-negotiable requirement in grid-connected synchronous generator applications where instability can cascade into system-wide outages.

In coal-fired power plants, combined-cycle gas turbine (CCGT) facilities, and hydroelectric stations, the Mark VI EX2100 excitation system governs reactive power output and terminal voltage regulation. The IS200AEPAH1BMF-P continuously samples analog feedback from current transformers (CTs) and potential transformers (PTs), applying protection logic that coordinates with the IS215VCMIH2CC VME communication module and the IS200TREGH1B terminal board to deliver a fully integrated protection chain. Any degradation in the analog excitation protection board directly compromises the reliability of the entire excitation loop.

Field engineers working in petrochemical refineries and offshore platforms frequently encounter environments where ambient temperatures exceed 55°C, relative humidity approaches 95% non-condensing, and vibration from rotating machinery is constant. The IS200AEPAH1BMF-P is designed to withstand these conditions without signal drift or protection misoperation. Its conformal-coated PCB construction resists corrosive atmospheres — a critical feature in coastal installations and chemical processing plants where salt fog and airborne contaminants accelerate board degradation on lesser-grade components.

The IS210BPPCH1AD backplane interface board provides the structural and electrical backbone for the Mark VI I/O module rack. It routes power distribution, inter-module communication buses, and diagnostic signals across the controller chassis, interfacing with I/O packs such as the IS200IOCIH1A and IS200DTURH1BBC turbine control I/O boards. In triple-redundant (TMR) Mark VI configurations — standard in nuclear auxiliary systems and critical process control applications — the IS210BPPCH1AD ensures that all three control paths maintain synchronized communication, enabling fault-tolerant operation even when one channel experiences a hardware anomaly.

For facilities operating Speedtronic Mark VI turbine control systems alongside the EX2100 excitation platform, maintaining a verified spare inventory of the IS200AEPAH1BMF-P and IS210BPPCH1AD is a standard reliability engineering practice. Unplanned excitation system failures during peak load periods can result in generator trips, grid instability, and significant revenue loss. Having a tested, ready-to-install spare on the shelf reduces mean time to repair (MTTR) from days to hours — a measurable improvement in plant availability metrics.

This assembly is also compatible with retrofit and upgrade projects where aging Mark V or Mark IV excitation systems are being modernized to the Mark VI EX2100 platform. The IS200AEPAH1BMF-P’s analog interface architecture supports integration with modern SCADA systems via the IS200AEAAH1AAA Ethernet adapter and communicates over the IONet proprietary network that underpins the Mark VI distributed control architecture. Facilities upgrading their control infrastructure can source this board as part of a phased modernization strategy without requiring a full system replacement.

At TOPNLMS, every IS200AEPAH1BMF-P IS210BPPCH1AD unit undergoes multi-point functional verification prior to shipment. Our inspection process includes visual examination for PCB damage, component-level continuity testing, and firmware version verification against GE’s published compatibility matrices. Units are shipped in anti-static packaging with desiccant inserts to prevent moisture ingress during international transit. We maintain bonded inventory to support urgent procurement requirements, with same-day dispatch available for in-stock units.

Rugged Specifications Table

Comprehensive Protection Solutions

The IS200AEPAH1BMF-P IS210BPPCH1AD assembly does not operate in isolation — it is one node in a tightly integrated protection and control architecture. In a typical Mark VI EX2100 excitation panel, it works alongside the IS200EACFG1A excitation analog control board, which handles AVR (Automatic Voltage Regulator) setpoint processing, and the IS215VCMIH2CC VME communication module, which manages inter-controller data exchange across the IONet network. The IS200TREGH1B terminal board provides the field wiring interface, connecting CTs, PTs, and field excitation circuits to the controller chassis with clearly labeled, DIN-rail-compatible termination blocks.

For power distribution within the control cabinet, the IS200EPCTG1A power converter board supplies regulated DC voltages to the I/O module rack, ensuring that analog signal processing on the IS200AEPAH1BMF-P remains stable even during utility supply fluctuations. In facilities where redundant power is mandatory — such as nuclear auxiliary systems or critical water treatment infrastructure — the IS200EPCTG1A is typically deployed in a dual-feed configuration with automatic switchover.

On the I/O side, the IS200IOCIH1A I/O controller interface board manages high-speed data acquisition from field sensors, feeding real-time analog values to the excitation protection logic running on the IS200AEPAH1BMF-P. In turbine control applications, the IS200DTURH1BBC turbine I/O board handles speed, temperature, and vibration inputs, providing the broader machine protection context within which excitation control decisions are made. The IS200AEAAH1AAA Ethernet adapter extends connectivity to plant-level SCADA and historian systems, enabling remote monitoring of excitation parameters without interrupting the real-time control loop.

Safety relay modules and hardwired trip circuits interfacing with the Mark VI chassis are typically coordinated through the IS200TRLYH1C relay output board, which executes protective trip commands generated by the excitation protection logic. In hazardous area installations — classified Zone 2 or Division 2 — the entire Mark VI panel assembly is housed in purged and pressurized enclosures (Ex p), with the IS200AEPAH1BMF-P operating within the safe-area section of the control architecture.

Application in Critical Infrastructure

The GE IS200AEPAH1BMF-P IS210BPPCH1AD assembly is deployed across the most demanding sectors of global industrial infrastructure. In combined-cycle power plants, it governs the excitation of synchronous generators operating at 50 Hz or 60 Hz grid frequencies, maintaining terminal voltage within ±0.5% of setpoint under dynamic load conditions. In oil and gas upstream facilities — including offshore platforms in the North Sea, Gulf of Mexico, and South China Sea — the Mark VI EX2100 excitation system controls generator sets that power drilling, compression, and safety systems, where any excitation failure triggers an emergency shutdown with significant operational and safety consequences.

In mining operations, particularly in open-pit copper and iron ore mines in Chile, Australia, and West Africa, large synchronous motors driving SAG mills and conveyor systems rely on EX2100-based excitation control for reactive power compensation and soft-start capability. The IS200AEPAH1BMF-P’s robust analog protection circuitry prevents field winding damage during the high-inrush current events that characterize motor starting in these applications.

Water treatment and desalination facilities in the Middle East and Southeast Asia operate large pump motors under continuous duty cycles in high-humidity, salt-laden atmospheres. The conformal coating and sealed backplane architecture of the IS200AEPAH1BMF-P IS210BPPCH1AD assembly provide the corrosion resistance necessary for reliable long-term operation in these environments. In steel mills and aluminum smelters, where electromagnetic interference from arc furnaces and rectifier banks is severe, the shielded IONet communication architecture ensures that excitation control signals remain uncorrupted, preventing nuisance trips that would interrupt continuous casting or smelting operations.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the IS200AEPAH1BMF-P IS210BPPCH1AD?
Our 12-month warranty covers functional failure of the board assembly under normal operating conditions consistent with GE’s published environmental specifications. If a unit fails to perform its designed excitation protection or backplane interface functions within the warranty period, we provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery. Warranty claims are processed within 5 business days of receiving the returned unit at our facility.

Q2: What pre-shipment testing is performed on each unit?
Every IS200AEPAH1BMF-P IS210BPPCH1AD assembly undergoes a structured inspection protocol: visual examination of PCB surfaces, solder joints, and connectors for physical damage; component-level continuity and resistance testing on critical signal paths; firmware version identification and documentation; and functional power-on verification where test equipment permits. Units that do not pass all inspection criteria are quarantined and not offered for sale. A test report summary is available upon request for critical procurement applications.

Q3: Is this board compatible with both Mark VI Simplex and TMR configurations?
Yes. The IS200AEPAH1BMF-P IS210BPPCH1AD is compatible with both Simplex (single-controller) and Triple Modular Redundant (TMR) Mark VI chassis configurations, as well as the EX2100 and EX2100e excitation platforms. For TMR installations, three sets of this assembly are typically installed — one per control path (R, S, T). We recommend verifying the firmware revision of your existing installed boards against the replacement unit prior to installation to ensure version compatibility. Our technical team can assist with revision matching.

Q4: Can you support long-term or repeat supply for maintenance programs?
Yes. TOPNLMS maintains bonded inventory of high-demand Mark VI and EX2100 spare parts to support planned maintenance outages, annual turnarounds, and long-term service agreements. We can provide framework pricing for multi-unit procurement, priority allocation for repeat customers, and advance reservation of stock for scheduled outage windows. For facilities with critical spare parts programs, we recommend establishing a standing supply arrangement to ensure availability during peak demand periods. Contact our team at [email protected] to discuss your maintenance inventory requirements.
