GE IC754VSF15CTD Replacement for QuickPanel Series: Smooth Migration & Legacy System Upgrade

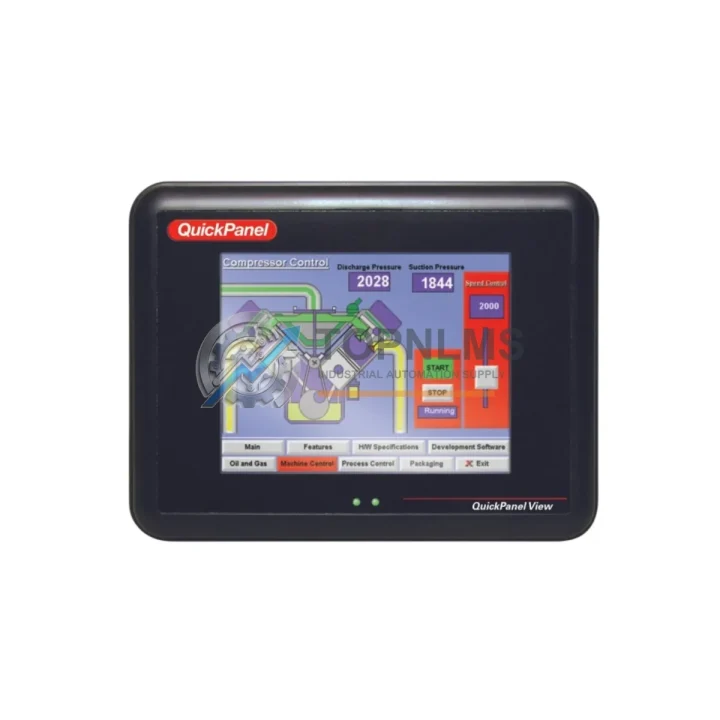

The GE IC754VSF15CTD is a 15-inch color touch HMI panel from GE’s QuickPanel series, widely deployed across discrete manufacturing, process control, and utility automation systems. As GE Intelligent Platforms transitioned its HMI portfolio and the QuickPanel line reached end-of-life, many facilities operating legacy control architectures — including GE Series 90-30, Series 90-70, PACSystems RX3i, and VersaMax PLC platforms — now face the challenge of sourcing compatible replacement units or executing a structured upgrade migration.

This listing provides a direct replacement and upgrade pathway for the IC754VSF15CTD, supporting facilities that need to restore HMI functionality with minimal rewiring, no PLC program changes, and the shortest possible downtime window. Whether your existing panel has failed, is approaching end-of-support, or you are proactively modernizing your control cabinet, this unit is tested, verified, and ready to ship.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IC754VSF15CTD migration rarely involves the HMI panel alone. In most retrofit projects, the replacement of this QuickPanel unit is coordinated with adjacent components in the same control cabinet or communication network. During the upgrade process, engineers commonly address the IC693CPU374 or IC693CPU364 CPU modules in the Series 90-30 rack, ensuring the PLC firmware is current and compatible with the refreshed HMI driver stack. Where the existing backplane uses IC693CHS397 or IC693CHS391 rack assemblies, the physical slot layout and I/O addressing remain unchanged, simplifying the migration checklist.

Communication continuity is a critical concern. The IC754VSF15CTD communicates with GE PLCs via SRTP over Ethernet or serial SNP/SNPX protocols. If the existing network infrastructure includes IC693CMM321 or IC693CMM311 communications modules, these remain fully compatible and do not require replacement during the HMI swap. For facilities running Modbus RTU on RS-485 to third-party drives or instruments, the existing wiring harness and termination resistors are reused without modification.

Power distribution within the cabinet should be verified during the migration window. The IC693PWR321 or IC693PWR330 power supply modules that feed the Series 90-30 rack operate independently of the HMI’s 24 VDC supply rail, so the replacement panel can be powered up and tested while the PLC remains in run mode — minimizing production interruption. For facilities that also operate GE VersaMax I/O drops connected via Genius Bus or Profibus, the IC200GBI001 bus interface module continues to function without reconfiguration.

Where the upgrade scope extends to the operator station, some facilities take the opportunity to replace aging IC754VSF12CTD (12-inch) panels at secondary stations with the same IC754VSF15CTD form factor, standardizing the HMI fleet across the production line. This simplifies spare parts management and reduces the number of project files that operators must maintain. Programming and configuration transfers are performed using the Proficy Machine Edition (ME) software suite, with project backup files loaded directly to the replacement unit via Ethernet or compact flash.

For applications where the control system is being migrated from a legacy GE Series 90-70 rack — using IC697CPU772 or IC697CPU781 processors — to a PACSystems RX3i platform, the IC754VSF15CTD serves as a stable HMI bridge during the phased transition, maintaining the existing operator screens while the PLC migration is completed in stages. Signal isolators and terminal blocks within the cabinet are typically retained, as the HMI’s I/O is handled entirely through the communication network rather than hardwired I/O points.

Retrofit Guidance FAQ

Q: Can I reuse my existing Proficy ME project files on the replacement IC754VSF15CTD?
A: Yes. Project files created in GE Proficy Machine Edition are portable across QuickPanel units of the same display class. Back up the project from the failed unit (if accessible) or restore from your last saved version, then download to the replacement panel via Ethernet. No screen redesign is required if the resolution and aspect ratio match.

Q: Will the replacement unit communicate with my Series 90-30 PLC without driver changes?
A: Yes. The IC754VSF15CTD includes native GE SRTP and SNP/SNPX drivers. As long as the PLC IP address or serial port settings are correctly entered during commissioning, communication is established without modifying the PLC program or I/O configuration.

Q: Does the panel cutout need to be modified?
A: No. The IC754VSF15CTD uses a standard 15-inch QuickPanel cutout. The replacement unit fits the existing opening, and the front-face NEMA 4/4X gasket provides the same environmental seal. No metalwork or cabinet modification is required.

Q: What communication protocols are supported?
A: The panel supports GE SRTP (Ethernet), SNP/SNPX (serial), Modbus RTU (RS-485/RS-232), Modbus TCP (Ethernet), and OPC DA client. This covers the majority of GE PLC and third-party device communication requirements without additional protocol converters.

Q: How is the replacement unit powered?
A: The IC754VSF15CTD operates on 24 VDC. The existing cabinet power supply and wiring are reused. No new power distribution components are required unless the existing supply is undersized or degraded.

Q: Can the replacement be tested before installation?
A: Yes. We recommend bench-testing the unit with a laptop running Proficy ME before installation. Connect via Ethernet, download the project file, and verify all screens and communication links before mounting in the cabinet. This reduces on-site commissioning time significantly.

Q: What if my original unit’s compact flash card is unreadable?
A: If the project backup cannot be recovered from the failed unit, the replacement can be commissioned using the last known good project file from your engineering archive. If no backup exists, the HMI screens will need to be rebuilt in Proficy ME — we recommend maintaining regular project backups as part of your preventive maintenance program.

Warranty Assurance

Every IC754VSF15CTD unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional pre-shipment test that verifies display operation, touch calibration, communication port integrity, and power-on self-test completion. Units that do not pass the full test sequence are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or repair service with a target response time of 3 business days from claim receipt. Warranty coverage includes manufacturing defects, component failure under normal operating conditions, and communication port faults. It does not cover physical damage caused by incorrect installation, overvoltage, or environmental exposure beyond the unit’s rated specifications.

For time-critical applications where downtime cost is high, we recommend purchasing a spare unit alongside the primary replacement. Holding a tested spare in your local inventory eliminates lead time risk and ensures that a second failure can be recovered within hours rather than days. TOPNLMS maintains stock of the IC754VSF15CTD and related QuickPanel series units to support rapid dispatch for urgent requirements.

Orders are processed within 1 business day. Standard shipping from Xiamen, China reaches most destinations in Asia within 3–5 business days, and international destinations within 5–10 business days depending on customs clearance. Express shipping options are available on request. All units are shipped with anti-static packaging, individual serial number documentation, and a test report.

For procurement inquiries, volume pricing, or technical pre-sales support, contact our industrial automation team directly.
