GE IC754VBI10MTD-BB Ruggedized HMI Panel for Harsh Environments

Product Overview

GE IC754VBI10MTD-BB Ruggedized HMI Panel for Harsh Environments

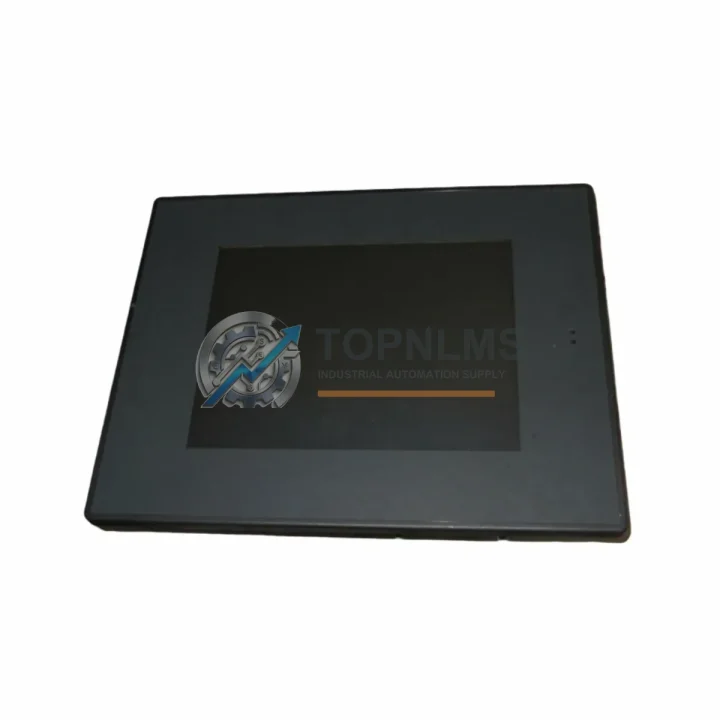

The GE IC754VBI10MTD-BB QuickPanel View 10-inch Industrial HMI Panel is engineered to deliver uncompromising human-machine interface performance in the most demanding industrial environments. Designed by General Electric as part of the proven QuickPanel View series, this ruggedized operator panel is built to withstand extreme temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference — conditions routinely encountered in oil and gas facilities, mining operations, power generation plants, water treatment stations, metallurgical processing lines, and heavy manufacturing floors.

Where standard HMI panels fail under thermal stress or EMI-induced signal corruption, the IC754VBI10MTD-BB maintains stable, responsive operation. Its sealed front panel construction meets IP65 ingress protection standards, preventing dust infiltration and water jet exposure from compromising display clarity or touchscreen responsiveness. The wide operating temperature range ensures reliable startup and continuous operation whether the control cabinet is located in a sub-zero outdoor enclosure or adjacent to a high-heat furnace line. For facilities running 24/7 continuous production — where unplanned downtime translates directly to lost revenue and safety risk — this level of hardware resilience is not optional; it is a baseline requirement.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC754VBI10MTD-BB is most effective when integrated into a well-engineered control architecture. In GE PACSystems-based installations, it operates seamlessly alongside the GE PACSystems RX3i CPU315 (IC695CPU315) as the primary logic controller, with the HMI providing real-time visualization of process variables, alarm states, and production metrics. I/O expansion is typically handled through GE VersaMax I/O modules such as the IC200MDL740 discrete output module, which interfaces directly with field devices including actuators, solenoid valves, and motor starters.

For applications requiring high-speed serial communication to legacy field instruments, the IC754VBI10MTD-BB’s RS-485 port supports Modbus RTU connectivity to devices such as GE Multilin 750 Series protection relays and third-party variable frequency drives. In Ethernet-networked plants, it integrates with GE PACSystems Ethernet NIU modules (IC695ETM001) to participate in SRTP or Modbus TCP supervisory networks. Power integrity for the HMI and associated control cabinet components is maintained through 24 VDC industrial DIN-rail power supplies rated for wide AC input ranges, ensuring stable operation even where mains voltage fluctuates.

Safety-critical installations benefit from pairing this HMI with GE RSTi safety I/O modules or compatible safety relay modules that enforce SIL-rated interlocks independently of the HMI visualization layer. Communication to higher-level SCADA or DCS platforms — including GE iFIX or Proficy Historian — is supported via OPC DA/UA or direct Ethernet driver connections. Terminal block assemblies and GE VersaMax terminal modules within the same control cabinet provide organized, vibration-resistant field wiring termination, reducing the risk of intermittent connections in high-vibration environments such as compressor stations or rolling mills.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the IC754VBI10MTD-BB is deployed at wellhead control panels, compressor skid HMI stations, and pipeline SCADA remote terminal units. Its sealed enclosure and wide temperature tolerance allow installation in outdoor junction boxes and prefabricated skid packages exposed to desert heat, arctic cold, and salt-laden coastal atmospheres. Operators rely on its high-brightness display to monitor flow rates, pressure differentials, and emergency shutdown (ESD) status without misreading data under direct sunlight.

In underground mining, where coal dust, silica particulates, and mechanical shock from blasting and heavy equipment are constant hazards, the IP65 front seal prevents abrasive ingress that would otherwise degrade resistive touchscreen sensitivity over time. The panel’s robust aluminum housing absorbs vibration transmitted through the control cabinet structure, maintaining reliable touchscreen calibration and display integrity across multi-year service intervals.

At power generation and substation facilities, the HMI interfaces with protection relay systems and transformer monitoring equipment, providing operators with consolidated alarm visualization and one-line diagram displays. Its EMC compliance ensures that high-frequency switching transients from power electronics — inverters, UPS systems, and capacitor banks — do not corrupt display output or freeze the operating system. In water and wastewater treatment plants, the IC754VBI10MTD-BB manages pump sequencing, chemical dosing control, and SCADA gateway functions in environments where humidity regularly approaches saturation and chemical vapors are present.

For metallurgical and steel processing lines, where radiant heat from furnaces and induction heaters creates ambient temperatures at the upper boundary of the operating range, the panel’s thermal management design sustains continuous operation without requiring additional forced-air cooling of the HMI itself — reducing maintenance burden and eliminating a common failure point in high-temperature control cabinets.

Security & Quality FAQ

Q1: What warranty coverage is provided with the IC754VBI10MTD-BB?
Every IC754VBI10MTD-BB unit supplied by TOPNLMS carries a 12-month warranty from the date of shipment. This covers hardware defects in materials and workmanship under normal operating conditions. Warranty claims are processed with priority technical support, and replacement units are dispatched promptly to minimize production downtime.

Q2: How is each unit tested before shipment?
All units undergo a pre-shipment functional inspection that includes power-on verification, touchscreen calibration check, communication port continuity testing, and display uniformity assessment. Units sourced from certified channels are cross-referenced against GE’s original part numbering and revision documentation to confirm authenticity and correct specification before dispatch.

Q3: Is the IC754VBI10MTD-BB compatible with existing GE PACSystems and VersaMax installations?
Yes. The IC754VBI10MTD-BB is a native member of the GE QuickPanel View family and is fully compatible with GE Proficy Machine Edition programming software. It supports direct driver connectivity to GE PACSystems RX3i, RX7i, and VersaMax controllers via Ethernet SRTP and serial Modbus protocols. No hardware modification is required for drop-in replacement of earlier QuickPanel View units of the same screen size class.

Q4: Can TOPNLMS support long-term or repeat procurement for maintenance and spare parts programs?
Yes. TOPNLMS maintains stock of the IC754VBI10MTD-BB and related GE QuickPanel View series components to support planned maintenance schedules, emergency spare parts programs, and capital project procurement. Bulk pricing, reserved stock agreements, and expedited shipping options are available. Contact our technical sales team to discuss your facility’s long-term supply requirements.
