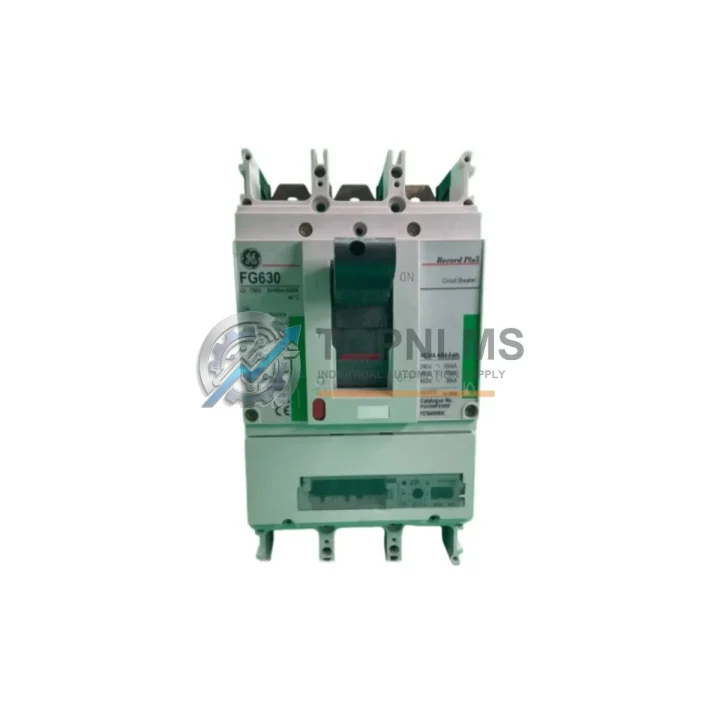

GE FGN36AA630NNF Ruggedized MCCB for Harsh Environments

Product Overview

GE FGN36AA630NNF Ruggedized MCCB for Harsh Environments

The GE FGN36AA630NNF is a heavy-duty 630A, 600V, 3-Pole Molded Case Circuit Breaker engineered for continuous, reliable operation in the most demanding industrial environments. Built on GE’s proven FGN Series platform, this breaker delivers exceptional overcurrent protection, arc-fault interruption, and thermal-magnetic trip performance — making it the preferred choice for engineers and procurement teams managing critical power distribution in harsh-duty applications.

Whether deployed in high-temperature foundries, moisture-laden water treatment facilities, dust-heavy mining operations, or vibration-intensive offshore platforms, the FGN36AA630NNF maintains stable trip characteristics and mechanical integrity across its full rated service life. Its robust molded case construction resists ingress from particulate matter and condensation, while its reinforced contact assembly withstands the mechanical shock and vibration loads common to heavy industrial machinery and continuous production lines.

In modern industrial power architectures, the FGN36AA630NNF serves as a main or feeder breaker within motor control centers (MCCs), switchgear panels, and control cabinets where it protects downstream equipment including variable frequency drives (VFDs), industrial power supplies, PLC power modules, and large motor starters. Its 600V rating makes it fully compatible with North American and international 480V/600V three-phase distribution systems, and its 3-pole configuration ensures balanced protection across all phases in both delta and wye-connected loads.

When integrated into a GE-based control system, the FGN36AA630NNF pairs naturally with GE’s SRPF400A400 rating plug for adjustable trip settings, and can be coordinated with upstream GE AKR-30H air circuit breakers for full selective coordination. Downstream, it protects branch circuits feeding GE CR306 Series motor starters, GE SX Series drives, and distributed I/O panels. In DCS-integrated facilities, the breaker’s reliable trip-free operation ensures that field instruments, transmitters, and safety instrumented system (SIS) power rails remain protected without nuisance tripping during normal process transients.

For facilities running Siemens, ABB, or Rockwell Automation control architectures alongside GE power distribution, the FGN36AA630NNF’s standard bolt-on mounting and IEC/ANSI-compatible terminal dimensions simplify integration into mixed-vendor control cabinets. It can be installed adjacent to Siemens 3RV Series motor protection circuit breakers, ABB SACE Tmax T6 breakers, or Schneider Electric NSX Series devices within the same switchboard, providing a cost-effective upgrade or direct replacement path without panel redesign.

In oil and gas upstream facilities, the FGN36AA630NNF protects power feeds to wellhead control panels, SCADA RTU enclosures, and hazardous-area junction boxes. Its thermal-magnetic trip mechanism responds predictably to sustained overloads and instantaneous short-circuit faults, reducing arc-flash incident energy and supporting compliance with NFPA 70E and IEC 62271 safety standards. In mining and mineral processing, where conveyor drives, crusher motors, and slurry pump starters impose heavy cyclic loads, the breaker’s robust contact system handles repeated inrush currents without degradation of trip calibration.

Water and wastewater treatment plants benefit from the FGN36AA630NNF’s resistance to humid, chemically aggressive atmospheres. Installed in outdoor or semi-enclosed switchgear serving aeration blowers, centrifugal pumps, and UV disinfection systems, the breaker maintains consistent performance even when ambient temperatures fluctuate between −20°C and +70°C. Power utilities and substation operators use the FGN Series as a reliable feeder protection device in secondary distribution panels, where long-term calibration stability and low maintenance requirements reduce total cost of ownership over multi-decade service intervals.

From a procurement standpoint, TOPNLMS maintains verified stock of the GE FGN36AA630NNF with full pre-shipment functional testing. Each unit undergoes continuity verification, insulation resistance testing, and trip-time validation before dispatch. All units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Orders are processed within 1–2 business days, with DHL Express, FedEx International Priority, and sea freight options available to support both urgent replacement needs and planned MRO procurement cycles.

Rugged Specifications Table

Comprehensive Protection Solutions

The FGN36AA630NNF is most effective when deployed as part of a coordinated protection strategy. In a typical industrial control cabinet, it serves as the main incoming breaker protecting downstream branch circuits that feed GE CR306 Series full-voltage motor starters, GE SX Series variable frequency drives, and GE SRPF-rated branch breakers. For facilities requiring ground-fault protection on high-resistance grounded systems, the FGN36AA630NNF can be paired with an external GE GFP ground-fault relay module to extend protection coverage without replacing the breaker assembly.

In PLC-based automation systems, the breaker protects the 480V power feed entering the control panel, upstream of the 24VDC industrial power supply that energizes the PLC rack, I/O modules, and communication gateways. This ensures that a downstream fault — such as a short circuit in a field instrument loop or a failed relay coil — does not propagate upstream and disrupt the entire control system. Coordinated with GE AKR Series low-voltage power circuit breakers at the main switchboard level, the FGN36AA630NNF provides a fully selective protection scheme that isolates faults at the lowest possible level, minimizing production downtime.

For DCS-integrated facilities, the breaker’s stable trip characteristics support integration with Emerson DeltaV I/O power distribution modules, Honeywell Experion Series field power panels, and ABB System 800xA marshalling cabinets. In safety instrumented systems (SIS), the FGN36AA630NNF can protect dedicated SIS power rails feeding Triconex safety controllers or Pilz PNOZmulti safety relay modules, ensuring that safety functions remain energized even during fault conditions on adjacent non-safety circuits. Terminal blocks, surge protection devices, and DIN-rail mounted components within the same cabinet benefit from the upstream protection this breaker provides.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the GE FGN36AA630NNF protects power distribution panels in wellhead control buildings, compressor station switchgear, and pipeline SCADA enclosures. Its thermal-magnetic trip mechanism responds reliably to fault conditions in Class I, Division 2 adjacent areas, reducing arc-flash risk and supporting NFPA 70E compliance for electrical safety programs.

In mining and mineral processing, the breaker is installed in surface and underground switchgear feeding crusher drives, conveyor belt motors, and ventilation fan starters. The mechanical robustness of the FGN Series molded case withstands the continuous vibration and shock loads generated by heavy mining equipment, maintaining calibrated trip performance over extended service intervals without requiring periodic recalibration.

In electric power utilities and substations, the FGN36AA630NNF serves as a feeder protection device in secondary distribution panels, protecting auxiliary power circuits for protection relays, battery chargers, and control building HVAC systems. Its long-term calibration stability and low maintenance profile make it a preferred choice for utility asset managers focused on minimizing lifecycle costs.

In water and wastewater treatment facilities, the breaker protects MCC sections feeding aeration blowers, centrifugal pumps, UV disinfection systems, and chemical dosing drives. Its resistance to humid, chemically aggressive atmospheres ensures reliable operation in wet-process environments where condensation and corrosive vapors are persistent challenges.

In metallurgy and steel production, the FGN36AA630NNF is deployed in rolling mill control panels, arc furnace auxiliary switchgear, and ladle crane power distribution boards. Its high interrupting capacity handles the severe fault currents characteristic of heavy industrial power systems, protecting both equipment and personnel in high-energy environments.
