GE DS3800HMPJ1A1D Replacement for Speedtronic MKIV

Product Overview

GE DS3800HMPJ1A1D Replacement for Speedtronic MKIV: Seamless Transition from Legacy Turbine Control

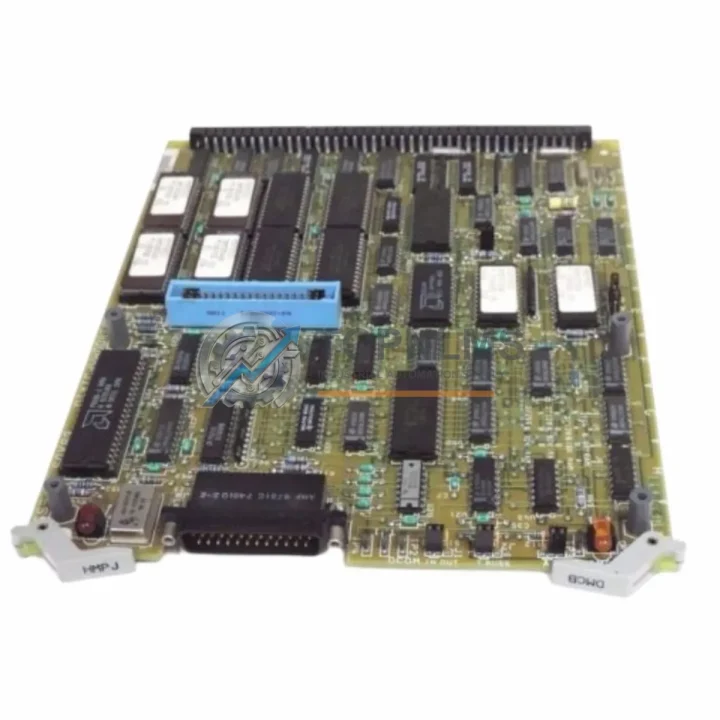

The GE DS3800HMPJ1A1D is a critical HMI Panel Board used in General Electric’s Speedtronic MKIV turbine control system — a platform widely deployed across gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. As the MKIV platform approaches end-of-life and OEM support becomes increasingly limited, plant engineers and procurement teams face mounting pressure to source reliable, drop-in compatible replacement boards that minimize downtime and preserve existing system architecture.

TOPNLMS supplies the DS3800HMPJ1A1D as a direct replacement for failed or degraded HMI Panel Boards in Speedtronic MKIV control cabinets. Each unit is sourced from verified industrial channels, inspected prior to shipment, and backed by a 12-month warranty — giving your maintenance team the confidence to execute a controlled swap without emergency OEM lead times.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DS3800HMPJ1A1D board replacement rarely happens in isolation. In most Speedtronic MKIV retrofit projects, the HMI Panel Board swap is part of a broader effort to stabilize or modernize the turbine control cabinet. During the upgrade process, engineers commonly address adjacent components that share the same service interval or show similar wear patterns.

The DS3800HMPJ1A1D interfaces directly with the MKIV operator panel and communicates across the Speedtronic backplane. If the backplane itself shows signs of corrosion or connector fatigue, the DS3800HMPD1D1C backplane termination board is typically inspected and replaced in the same maintenance window. Similarly, the DS3800DMEA1A1A digital output module and DS3800NPSB1A1A power supply board are frequently evaluated during the same outage, since power quality issues are a leading cause of HMI board failure in aging MKIV cabinets.

For sites migrating from MKIV toward a hybrid architecture — retaining the existing turbine I/O wiring while upgrading the control logic layer — the DS3800HSIA1A1A high-speed input board and DS3800NANA1A1A analog input module are often retained and re-terminated to the new control platform. In these scenarios, the DS3800HMPJ1A1D serves as a bridge component, maintaining operator visibility during the phased transition while the underlying control logic is upgraded.

Communication continuity is another key concern. Many MKIV installations rely on the DS3800DCFB1A1A communication interface board to link the turbine control panel to the plant DCS or SCADA system via Modbus RTU or proprietary GE protocols. Verifying the integrity of this board — and its associated RS-485 wiring — before and after the HMI board swap ensures that upstream data historians and alarm management systems remain uninterrupted.

For control cabinet space planning, the DS3800HMPJ1A1D occupies the same slot footprint as its predecessors, which simplifies retrofits in tight enclosures. However, if the project scope includes adding a new HMI workstation or upgrading to a modern SCADA front-end, the existing operator panel wiring may need to be re-routed through a signal isolator or terminal block adapter to maintain signal integrity across the new interface. In such cases, Phoenix Contact or Weidmuller DIN-rail terminal blocks are commonly used to organize and label the re-terminated wiring within the existing cabinet structure.

Finally, for sites that require a programming cable to verify board configuration or perform firmware diagnostics on adjacent MKIV cards, the IC693CBL316 serial programming cable remains compatible with the MKIV toolset and is available as an accessory through TOPNLMS.

Retrofit Guidance FAQ

Q: Can I swap the DS3800HMPJ1A1D without powering down the entire turbine control system?
A: No. The DS3800HMPJ1A1D is a non-hot-swap board. A controlled turbine shutdown and full cabinet power-down is required before removing or installing the board. Follow your site’s lockout/tagout (LOTO) procedure and GE’s MKIV maintenance guidelines.

Q: Do I need to re-load any software or configuration after installing the replacement board?
A: In most cases, no. The DS3800HMPJ1A1D is a hardware replacement that does not store application logic. The turbine control program resides on the MKIV controller boards (e.g., DS3800HPIB or DS3800HPID processor boards). After the HMI board swap, the system should resume normal operation upon power-up without re-programming.

Q: Is the DS3800HMPJ1A1D compatible with all MKIV cabinet revisions?
A: The DS3800HMPJ1A1D is designed for the standard GE Speedtronic MKIV card cage. It is pin-compatible with earlier suffix revisions (A, B, C). If your cabinet uses a non-standard backplane or has been previously modified, please contact TOPNLMS with your cabinet serial number for confirmation before ordering.

Q: What communication protocols does the MKIV HMI board support?
A: The DS3800HMPJ1A1D communicates via the proprietary GE Speedtronic MKIV backplane bus. It does not natively support Ethernet, Profibus, or Modbus TCP. External protocol conversion — if required for DCS integration — is handled by a separate communication interface board such as the DS3800DCFB1A1A.

Q: What is the typical lead time and shipping arrangement?
A: Units in stock at TOPNLMS ship within 1–3 business days from Xiamen, China. International shipments are dispatched via DHL Express or FedEx International Priority. Estimated transit time is 3–7 business days to most destinations. Expedited shipping is available upon request.

Q: What if the replacement board does not resolve the fault condition?
A: TOPNLMS provides a 12-month warranty on all supplied boards. If the DS3800HMPJ1A1D does not resolve the fault after correct installation, our technical team will assist with root-cause analysis. If the board is confirmed defective, a replacement or full refund will be arranged at no additional cost.

Warranty Assurance

Every DS3800HMPJ1A1D supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a pre-shipment inspection that includes visual examination for physical damage, connector integrity verification, and functional bench testing where applicable. Units are packed in anti-static ESD bags and cushioned shipping cartons to prevent transit damage.

If a warranty claim arises, TOPNLMS will respond within 1 business day. Defective units are eligible for free replacement or full refund, subject to inspection. Return shipping costs for confirmed warranty claims are covered by TOPNLMS. Our after-sales team is reachable via email at [email protected] or by phone at +86 18359293191 during business hours (UTC+8).

For procurement teams requiring documentation, TOPNLMS can provide a commercial invoice, packing list, certificate of conformance, and test report upon request. All transactions are conducted in USD or HKD, with T/T bank transfer and PayPal accepted as standard payment methods.
