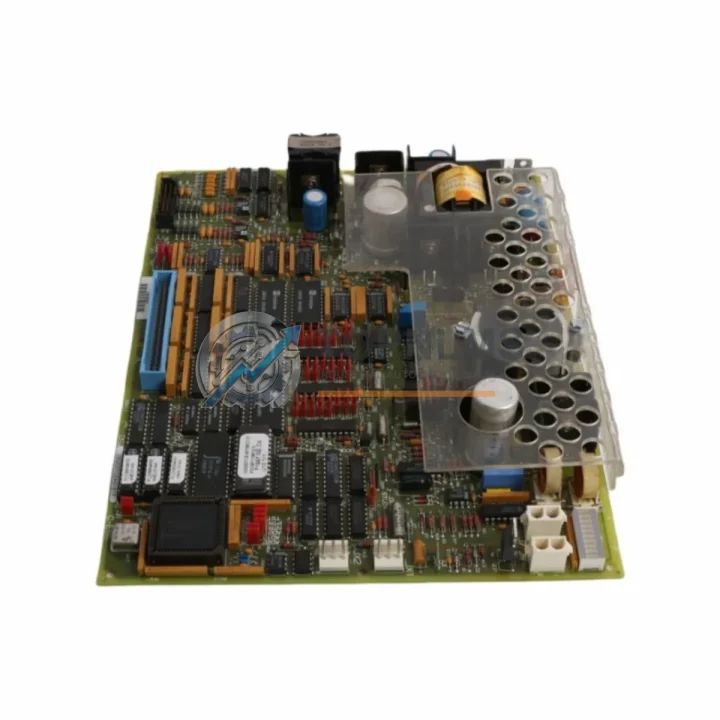

GE DS200TCEAG1BSF Ruggedized Overspeed Module for Harsh Environments

Product Overview

GE DS200TCEAG1BSF Ruggedized Overspeed Module for Harsh Environments

The GE DS200TCEAG1BSF is an Emergency Overspeed Protection Board engineered for the Mark VI Speedtronic turbine control platform — one of the most widely deployed and safety-critical control architectures in the global power generation and oil & gas industries. Designed to operate reliably under extreme thermal cycling, high electromagnetic interference, vibration, and humidity, this board serves as the last line of defense against catastrophic turbine overspeed events. Whether installed in a gas turbine at a combined-cycle power plant, a steam turbine at a refinery, or a compressor train at an offshore platform, the DS200TCEAG1BSF delivers the deterministic, fail-safe response that mission-critical infrastructure demands.

At TOPNLMS, every DS200TCEAG1BSF unit is sourced from verified industrial channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. We maintain ready stock to support emergency replacement scenarios where downtime is measured in tens of thousands of dollars per hour.

Rugged Specifications Table

Comprehensive Protection Solutions

In a Mark VI Speedtronic control cabinet, the DS200TCEAG1BSF does not operate in isolation. Its overspeed trip signal is tightly integrated with the broader turbine protection and control architecture. During a scheduled outage or emergency inspection, maintenance engineers should treat the DS200TCEAG1BSF replacement as part of a comprehensive cabinet health review.

The DS200TCQAG1BHF Turbine Control Qualification Board works in tandem with the TCEAG to validate speed sensor inputs and cross-check trip thresholds — both boards should be inspected together during any overspeed-related fault investigation. Equally important is the DS200SDCCG3A Speed and Dynamics Control Card, which processes the raw speed signals before they reach the overspeed detection logic; a degraded SDCC can produce false trip events or, more dangerously, mask a genuine overspeed condition.

Power integrity is foundational to reliable overspeed protection. The DS200PCCAG1A Power Supply and Control Card provides the regulated DC rails that the TCEAG board depends on. Any ripple or dropout on the +5 VDC or ±15 VDC backplane supply can compromise the board’s response time. Facilities should keep a spare PCCAG1A alongside the TCEAG in their critical-spares inventory. Similarly, the DS200IOCAG1A I/O Controller Board manages the discrete input and output channels that relay trip commands to the fuel control valves and breaker systems — a failed IOCAG1A can prevent a valid overspeed trip from reaching the actuators.

Communication integrity between the Mark VI controller and the plant DCS or SCADA system is maintained by the DS200TCRAG1AAA Turbine Control Relay Board and the IS200TTURH1CBB Turbine Trip and Unloading Relay Board. These relay boards translate the electronic trip signal into hardwired relay contacts that interface with high-voltage switchgear — components that should be tested for contact resistance and coil integrity during every major inspection interval. For facilities running Profibus or Modbus RTU communications between the Mark VI and the plant historian, the IS200BICLH1A Bus Interface and Communication Link Board is a critical spare that ensures data continuity during board swaps.

Finally, the DS200TCEAG1BSF installation environment itself must be maintained. Terminal blocks, cable harnesses, and the VME backplane connector should be inspected for corrosion, fretting, and loose terminations — particularly in coastal, high-humidity, or chemically aggressive plant environments. Keeping conformal-coated spare boards in sealed ESD packaging, alongside documented installation procedures, is the hallmark of a mature industrial spare-parts program.

Application in Critical Infrastructure

The DS200TCEAG1BSF is deployed across some of the world’s most demanding industrial environments. In oil and gas processing facilities, gas turbine-driven compressor trains run continuously for months between planned shutdowns. An overspeed event in this context can result in catastrophic mechanical failure, fire, or explosion — making the integrity of the TCEAG board a direct safety-of-life concern. Operators in the Middle East, Southeast Asia, and the North Sea routinely maintain two or more spare TCEAG boards per turbine train to ensure sub-24-hour recovery capability.

In combined-cycle power plants, the Mark VI platform controls both the gas turbine and, through coordinated I/O, the heat recovery steam generator (HRSG) and steam turbine. A single overspeed board failure that forces an unplanned trip can cost a 400 MW plant upward of $150,000 in lost generation revenue per day. Plant engineers in this sector typically classify the DS200TCEAG1BSF as a Tier-1 critical spare, subject to annual functional testing and a five-year replacement cycle regardless of apparent condition.

In mining and mineral processing, large electric motor drives and turbine-driven pumps operate in environments with extreme dust loading, vibration from blasting operations, and wide ambient temperature swings. The conformal coating on the DS200TCEAG1BSF provides meaningful protection against conductive dust contamination, but periodic inspection of the board’s edge connector and backplane slot remains essential. Metallurgical plants and water treatment facilities running GE turbine-driven pumps face similar challenges, with the added complication of corrosive chemical atmospheres that accelerate PCB degradation if boards are not properly stored and handled.

TOPNLMS supplies the DS200TCEAG1BSF to maintenance teams across these sectors with full pre-shipment testing documentation, ESD-safe packaging, and export compliance support for international shipments.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the DS200TCEAG1BSF?
The 12-month warranty covers functional failure under normal operating conditions. Each board undergoes pre-shipment electrical testing to verify key parameters before dispatch. If a board fails within the warranty period due to a manufacturing or component defect, TOPNLMS will provide a replacement or full refund. Warranty claims require the original invoice and a failure description; field-damaged or improperly installed boards are assessed case by case.

Q2: How do I verify compatibility before installing the DS200TCEAG1BSF in my Mark VI system?
Compatibility is determined by the Mark VI system revision, the turbine control application software version, and the specific slot assignment in the I/O rack. Cross-reference the board’s revision suffix (G1BSF) against your system’s Bill of Materials or the GE Mark VI hardware manual. TOPNLMS technical support can assist with compatibility verification if you provide your system’s hardware configuration sheet or the existing board’s part number label.

Q3: What is the typical lead time and shipping process?
In-stock units ship within 1–3 business days of order confirmation. International orders are shipped via DHL Express or FedEx International Priority with full export documentation, including commercial invoice, packing list, and HS code declaration. Expedited same-day dispatch is available for emergency orders placed before 14:00 CST. Track your shipment in real time through the carrier’s portal using the tracking number provided at dispatch.

Q4: Can TOPNLMS support long-term supply for legacy Mark VI systems being extended beyond their original design life?
Yes. TOPNLMS specializes in supporting legacy GE Mark VI, Mark V, and Mark IV Speedtronic systems that are being life-extended beyond GE’s standard support window. We maintain a managed inventory of critical boards including the DS200TCEAG1BSF and related components, with sourcing relationships that allow us to fulfill repeat orders over multi-year maintenance contracts. Contact our team to discuss a dedicated spare-parts agreement tailored to your fleet size and inspection schedule.
