GE DS200TBQDG1AFF Original Industrial Spare Mark VI Compatible

Product Overview

GE DS200TBQDG1AFF Original Industrial Spare Mark VI Compatible: System Stability & Industrial Spare Parts Maintenance Value

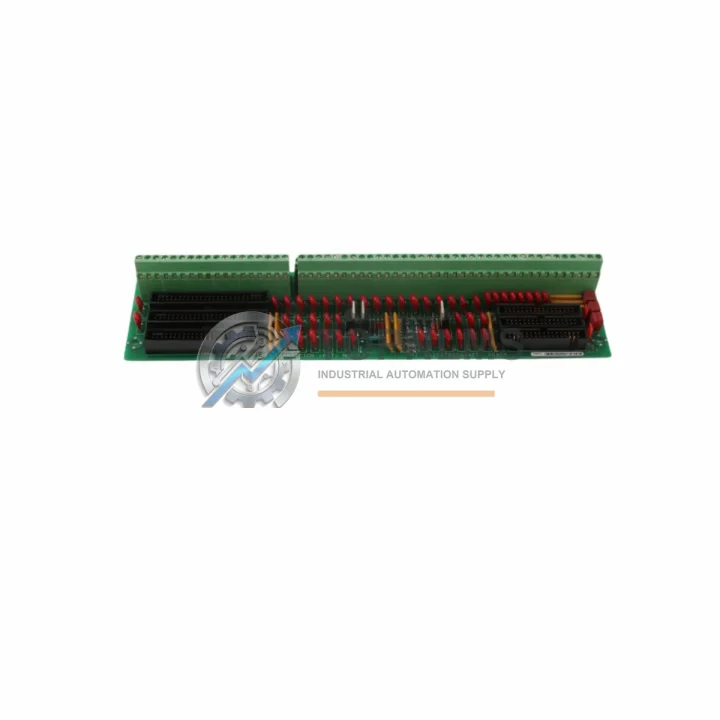

The GE DS200TBQDG1AFF is an original relay termination board engineered for the General Electric Mark VI turbine control system — one of the most widely deployed DCS platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As aging Mark VI systems continue to serve critical infrastructure, maintaining a reliable inventory of original spare parts like the DS200TBQDG1AFF is not merely a best practice — it is a cornerstone of operational continuity and unplanned downtime prevention.

This board serves as the interface layer between the Mark VI controller and field relay outputs, providing the termination points necessary for discrete output signal routing to actuators, solenoids, and protective relay circuits. Its role in the control cabinet is foundational: without a properly functioning relay termination board, output commands from the controller cannot reach field devices, rendering the turbine or process unit inoperable. Sourcing an original GE DS200TBQDG1AFF — rather than an uncertified substitute — ensures full electrical compatibility, correct terminal mapping, and compliance with the original system design specification.

Critical Technical Specs

Preventive Maintenance Strategy

A Mark VI turbine control system is only as reliable as its weakest termination point. When planning a scheduled outage or cabinet-level inspection, the DS200TBQDG1AFF relay termination board should be evaluated alongside the full relay output circuit — not in isolation. Relay contacts accumulate wear from switching cycles, thermal stress, and vibration over years of continuous operation. Proactive replacement during a planned maintenance window costs a fraction of the downtime incurred during an emergency swap.

Begin the inspection at the power supply layer. The DS200SDCIG2AEB power supply module should be load-tested for output voltage stability under operating conditions; degraded DC bus voltage is a leading cause of intermittent relay output faults that are frequently misattributed to the termination board itself. Simultaneously, inspect the DS200TBCCH1A terminal board and DS200TBCBG1A I/O termination board housed in the same cabinet — these boards share the same thermal environment and connector aging profile as the DS200TBQDG1AFF.

Communication integrity is the next layer to verify. The DS200TCQAG1BHF communication board and associated DS200TCDAG1A interface module govern signal routing between the controller and termination boards. Erratic relay output behavior is often traced to communication layer faults rather than the termination board itself. If the system runs a DS200VPBLG1AEE VME processor board, confirm firmware version compatibility before installing a replacement termination board — particularly in older Mark VI installations where revision mismatches can cause initialization errors.

Field wiring connected to the DS200TBQDG1AFF deserves equal attention. Inspect all terminal screw torque values, check for insulation degradation on signal cables, and look for corrosion on connector pins — especially in humid, coastal, or chemically aggressive plant environments. Replacing aging shielded signal cables and terminal block assemblies at the same time as the termination board eliminates latent failure points that could trigger nuisance trips after system restart. Fuse modules protecting relay output circuits should be tested and replaced on a scheduled basis; maintaining a stock of GE Mark VI fuse cartridges ensures these consumables are available without procurement delays.

For facilities managing extended Mark VI system lifecycles, a tiered spare parts inventory is the most cost-effective risk mitigation strategy. Alongside the DS200TBQDG1AFF, consider stocking the DS200TBQCG1A relay termination board and the DS200TBAIH1BDB analog input termination board as single-unit cold spares. These boards cover the primary termination failure modes in a Mark VI cabinet and collectively protect against the most common single-point-of-failure scenarios in continuous-operation facilities where procurement lead times may exceed acceptable downtime windows.

Strategic Replacement Solutions

The DS200TBQDG1AFF is a direct drop-in replacement for earlier Mark VI relay termination board suffix revisions. The G1AFF revision maintains backward-compatible terminal assignments and connector pinouts with predecessor variants (G1A, G1B), enabling installation without rewiring or software reconfiguration in most Mark VI system versions. This compatibility is a decisive advantage during emergency replacements where outage duration must be minimized.

For facilities transitioning from Mark V to Mark VI architecture, the DS200TBQDG1AFF supports the relay output design of the Mark VI platform without requiring cross-platform adaptation hardware. Engineering teams should verify the specific VCMI or VPRO controller revision in use and confirm firmware-level compatibility using GE Toolbox software prior to the physical swap — a verification step that can be completed remotely before the maintenance window begins.

Stocking the DS200TBQDG1AFF as a certified original spare eliminates the performance and compliance risks associated with third-party or refurbished alternatives that may not meet GE’s original contact rating, dielectric strength, or thermal cycling specifications. In safety-critical relay circuits — including turbine overspeed protection and emergency shutdown (ESD) output loops — original components are not a preference; they are an operational and regulatory requirement.

All DS200TBQDG1AFF units supplied by TOPNLMS are functionally tested prior to shipment using verification procedures aligned with GE Mark VI system test protocols. Each board is inspected for physical integrity, connector condition, and relay contact continuity. Units are packaged in anti-static protective materials. A 12-month warranty covers all supplied units against manufacturing defects and functional failures under normal operating conditions, with priority warranty processing to minimize site downtime.

Support FAQ

Q1: Is the DS200TBQDG1AFF compatible with all Mark VI system configurations?
The DS200TBQDG1AFF is designed for the GE Mark VI turbine control platform. Compatibility depends on the specific controller board (VCMI, VCRC, VTUR, or VPRO) and system revision in use. We recommend confirming your Mark VI system version and cabinet layout before ordering. Our technical team can assist with compatibility verification based on your system documentation or nameplate data.

Q2: What testing is performed before shipment?
Each unit undergoes pre-shipment functional testing including relay contact continuity checks, connector integrity inspection, and visual examination for physical damage. Units are packaged in anti-static protective materials to prevent ESD damage during transit. A test report is available upon request for critical applications.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers functional failures and manufacturing defects under normal operating conditions from the date of shipment. It does not cover damage from incorrect installation, overvoltage events, physical mishandling, or use outside the specified operating environment. Warranty claims are processed with priority turnaround to minimize site downtime.

Q4: How should I structure my Mark VI spare parts inventory?
For continuous-operation facilities, maintain at least one spare DS200TBQDG1AFF alongside key companion modules such as the DS200SDCIG2AEB power supply, DS200TCQAG1BHF communication board, and relevant I/O and analog termination boards. A tiered strategy — consumables (fuses, terminal blocks, cables) in higher quantities, low-failure-rate boards as single-unit cold spares — balances carrying cost against downtime risk effectively.
