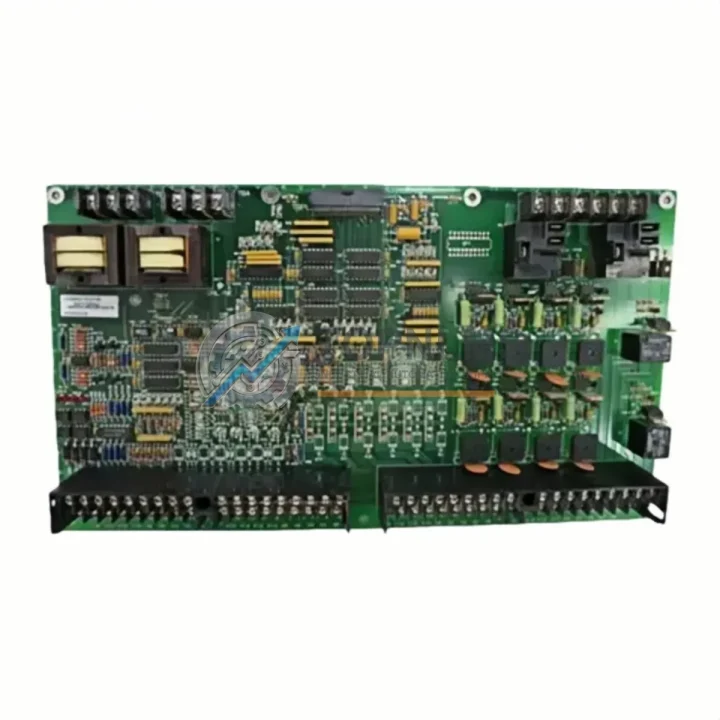

GE DS200RTBAG2AGL Ruggedized Relay Terminal Board Mark VI

Product Overview

GE DS200RTBAG2AGL Ruggedized Relay Terminal Board Mark VI: Industrial Resilience for Harsh Environments

The GE DS200RTBAG2AGL is a ruggedized relay terminal board engineered for the GE Speedtronic Mark VI turbine control system — one of the most demanding and safety-critical platforms in industrial automation. Designed to operate reliably in environments characterized by high temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this board serves as the backbone of relay output interfacing within the Mark VI architecture. Whether deployed in a gas turbine power plant, a combined-cycle facility, a petrochemical compressor train, or a heavy industrial drive system, the DS200RTBAG2AGL delivers the signal integrity and contact reliability that mission-critical operations demand.

In turbine control environments, the relay terminal board occupies a central role in the I/O chain. It receives discrete output commands from the Mark VI controller core — typically routed through the VCMI or VTUR processor boards — and converts them into hardwired relay contact closures that actuate field devices such as solenoid valves, motor starters, trip relays, and alarm annunciators. The DS200RTBAG2AGL is designed to interface directly with the Mark VI I/O terminal boards and backplane connectors, maintaining full signal compatibility with the existing wiring harness and field termination assemblies. This means that when replacing a failed or degraded unit, engineers do not need to re-terminate field cables or modify the control cabinet layout — a critical advantage in facilities where downtime is measured in tens of thousands of dollars per hour.

The board’s ruggedized construction addresses the specific environmental stressors found in turbine halls and heavy industrial control rooms. Conformal coating on the PCB surface provides protection against condensation and corrosive atmospheres, while the board’s mechanical design accommodates the vibration profiles typical of rotating machinery installations. EMI shielding and filtering on relay coil drive circuits prevent false triggering from high-frequency noise generated by variable frequency drives, power converters, and nearby high-voltage switchgear. In facilities where the DS200RTBAG2AGL operates alongside components such as the DS200TCQAG1BHF I/O terminal board, the DS200SDCCG3A speed detector card, or the DS200VPBLG1AEE VME power board, the relay terminal board must maintain stable operation across the full Mark VI rack without introducing ground loops or signal crosstalk.

Field engineers working on Mark VI systems will recognize that the relay output section is among the most stress-exposed areas of the control architecture. Relay contacts cycle repeatedly under inductive loads, and in continuous-production facilities, cumulative contact wear can lead to intermittent trip signals or failure to actuate protective shutdown sequences. Proactive spare parts management — maintaining a tested, ready-to-install DS200RTBAG2AGL on the shelf — is standard practice in facilities that operate under stringent availability targets. The board is also commonly paired with the DS200TCEAG1BHF excitation terminal board and the DS200DSPCH1ADA digital signal processor card in multi-board replacement strategies during scheduled outages.

For facilities transitioning from older Speedtronic Mark IV or Mark V platforms, the DS200RTBAG2AGL represents a direct-fit solution within the Mark VI rack structure. The relay output philosophy is consistent across generations, and field wiring that was previously terminated on Mark V I/O boards can often be re-used with appropriate adapter terminal blocks, reducing the scope and cost of control system upgrades. This compatibility also extends to the communication layer: the Mark VI’s ARCNET and Ethernet-based I/O communication protocols remain transparent to the relay terminal board, which operates at the hardwired output level regardless of the higher-level network topology.

In oil and gas applications — including offshore platform turbine generators, onshore gas compression stations, and LNG liquefaction trains — the DS200RTBAG2AGL must meet the reliability expectations of facilities that operate continuously for 18 to 36 months between planned shutdowns. In mining and mineral processing environments, the board is exposed to high dust loads and vibration from crushing and conveying equipment. In power generation, it must withstand the thermal cycling associated with peaking-unit startups and shutdowns. Across all these applications, the board’s relay output contacts provide the final hardwired interface between the digital control system and the physical process — a role that demands zero tolerance for intermittent faults.

Procurement teams sourcing the DS200RTBAG2AGL should verify that the unit has been functionally tested prior to shipment. At TOPNLMS, every board undergoes pre-shipment functional verification covering relay coil energization, contact continuity, and board-level communication integrity. Units are shipped in anti-static packaging with individual test documentation. Standard lead time from confirmed order to dispatch is 1–3 business days for in-stock units, with express freight options available for emergency requirements. All units are covered by a 12-month warranty from the date of shipment, with direct technical support available for installation and commissioning queries.

Rugged Specifications Table

Comprehensive Protection Solutions

A reliable Mark VI turbine control system depends on the coordinated performance of multiple boards and modules working in concert. The DS200RTBAG2AGL relay terminal board is most effective when the surrounding system components are equally robust. In a typical Mark VI control cabinet, the relay terminal board operates alongside the DS200TCQAG1BHF I/O terminal board, which handles analog and discrete input signal conditioning from field sensors including thermocouples, RTDs, and proximity probes. The DS200SDCCG3A speed detector card provides overspeed protection signal processing, and its outputs are often routed through the same relay output chain that the DS200RTBAG2AGL serves.

Power integrity is equally critical in harsh environments. The DS200VPBLG1AEE VME power board supplies regulated DC power to the Mark VI rack, and any degradation in its output directly affects relay coil drive reliability. In facilities where power quality is a concern — particularly those with large motor loads or diesel generator supplies — maintaining a spare VME power board alongside the relay terminal board is prudent practice. The DS200DSPCH1ADA digital signal processor card handles the control algorithm execution that generates the relay output commands, and its health directly determines the quality of the signals that the DS200RTBAG2AGL must faithfully translate into contact closures.

For facilities that also operate GE Mark VI HMI workstations running Cimplicity or ToolboxST software, the relay terminal board’s status is typically monitored through the I/O diagnostic screens, allowing maintenance teams to identify contact wear or coil drive faults before they escalate to unplanned trips. Complementary components such as the DS200TCEAG1BHF excitation terminal board and the DS200EXPSG1ADA expansion board round out a comprehensive spare parts strategy for Mark VI systems operating in continuous-production environments.

Application in Critical Infrastructure

The GE DS200RTBAG2AGL relay terminal board is deployed across the full spectrum of critical infrastructure sectors where turbine-based power generation and mechanical drive systems are essential. In natural gas power plants and combined-cycle facilities, the board’s relay outputs control fuel gas stop valves, inlet guide vane actuators, and generator breaker trip coils — functions where a single contact failure can initiate an unplanned unit trip. In offshore oil and gas platforms, where the Mark VI system governs gas turbine-driven compressors and generators, the board must perform reliably in salt-laden, high-humidity atmospheres with limited access for maintenance intervention.

In the mining sector, Mark VI-controlled turbine-driven ventilation fans and hoisting systems rely on relay terminal boards to execute emergency stop and safety interlock sequences. The DS200RTBAG2AGL’s conformal coating and vibration-resistant construction make it well-suited to the mechanical environment of underground and surface mining operations. In water treatment and pumping stations, where turbine-driven high-capacity pumps operate continuously, the relay terminal board provides the hardwired interface for pump protection relays and motor control center interlocks.

Metallurgical and steel production facilities that use turbine-driven blowers and compressors in blast furnace and rolling mill operations represent another key application domain. In these environments, the combination of high ambient temperatures, heavy particulate loading, and intense electromagnetic interference from arc furnaces and large rectifier systems places exceptional demands on control system hardware. The DS200RTBAG2AGL’s design heritage — developed for the demanding requirements of GE’s Speedtronic turbine control program — makes it one of the most field-proven relay terminal board solutions available for these applications.

Security & Quality FAQ

Q1: What warranty coverage is provided with the DS200RTBAG2AGL?
Every DS200RTBAG2AGL shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with the Mark VI system specifications. In the event of a warranty claim, TOPNLMS provides direct technical support to diagnose the issue and arranges replacement or repair as appropriate. Warranty claims are processed with a target response time of 24 hours.

Q2: How is each unit tested before shipment?
All DS200RTBAG2AGL units undergo pre-shipment functional verification covering relay coil energization, contact continuity across all output channels, and board-level power supply integrity. Test results are documented and available upon request. Units that do not pass functional verification are not shipped. Anti-static packaging and appropriate cushioning are used to protect the board during transit.

Q3: Is the DS200RTBAG2AGL compatible with all Mark VI system configurations?
The DS200RTBAG2AGL is designed for use within the GE Speedtronic Mark VI turbine control system and is compatible with the standard Mark VI rack and I/O backplane architecture. Compatibility with specific system configurations — including TMR (Triple Modular Redundant) and simplex arrangements — should be verified against the system’s I/O configuration documentation. TOPNLMS technical support can assist with compatibility verification based on your system’s part number matrix and I/O assignment sheets.

Q4: Can TOPNLMS support long-term supply for ongoing maintenance programs?
Yes. TOPNLMS maintains inventory of Mark VI series components including relay terminal boards, I/O terminal boards, processor cards, and power supply modules to support ongoing maintenance and spare parts programs. For facilities with planned outage schedules or annual procurement programs, TOPNLMS can provide advance availability confirmation and reserved stock arrangements. Contact our technical sales team to discuss your long-term supply requirements.
