GE DS200IMCPG1BBA Replacement for Mark VI Turbine Control

Product Overview

GE DS200IMCPG1BBA Replacement for Mark VI Turbine Control: Smooth Transition & Legacy System Compatibility

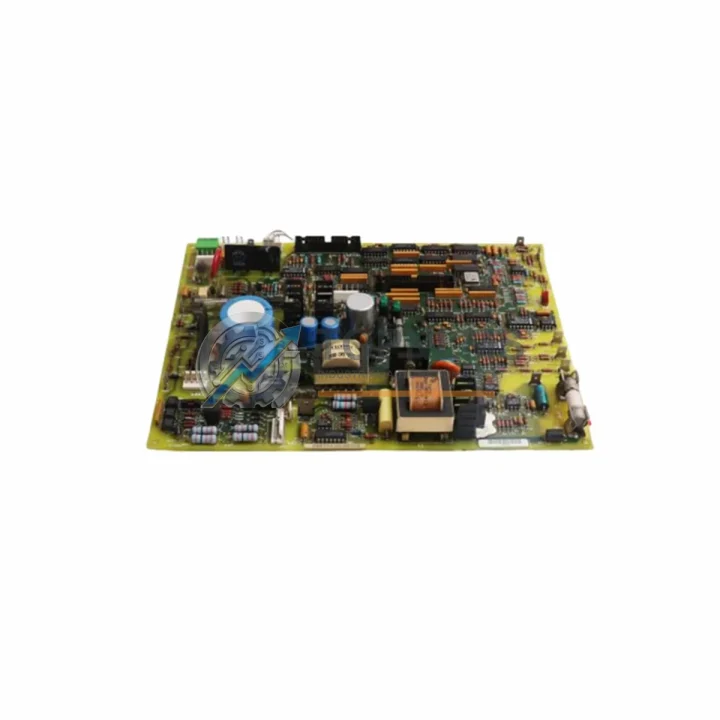

When a GE Mark VI turbine control system reaches end-of-life or a critical IGBT Gate Driver Board fails in the field, unplanned downtime can cost thousands of dollars per hour. The GE DS200IMCPG1BBA is the OEM IGBT Gate Driver Board designed specifically for the GE Mark VI Turbine Control System, and TOPNLMS stocks verified units ready for immediate dispatch to minimize your plant’s exposure to production loss.

Whether you are executing a planned retrofit of an aging Mark V or Mark IV control architecture, replacing a failed board in an active Mark VI cabinet, or building a strategic spare-parts inventory for long-term asset reliability, the DS200IMCPG1BBA integrates directly into the existing Mark VI rack without requiring modifications to the control cabinet wiring harness, backplane connectors, or power distribution bus. The board communicates natively over the IONET serial communication backbone used throughout the Mark VI platform, ensuring that your existing HMI, I/O packs, and turbine sequencing logic remain fully operational after the swap.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DS200IMCPG1BBA replacement rarely happens in isolation. In practice, field engineers migrating from a Mark V or early Mark VI revision will often find that adjacent boards and modules require simultaneous attention to ensure system-wide stability.

The DS200SDCCG3A Speed Detector and Control Card is frequently replaced alongside the IGBT Gate Driver Board during turbine overhauls, as both boards share the same IONET communication segment and a failure in one often stresses the other. Similarly, the DS200TCQAG1BHF Turbine Control I/O Board handles analog and discrete I/O signals that feed directly into the gate drive logic; verifying its integrity before commissioning the new DS200IMCPG1BBA eliminates the risk of a secondary fault masking the repair.

Power integrity is equally critical. The DS200PSVO Power Supply Output Board and the companion DS200PSVOB Power Supply Voter Board provide the regulated DC rails that the DS200IMCPG1BBA depends on. If the power supply boards show signs of capacitor aging or voltage ripple, replacing them as part of the same maintenance window prevents nuisance trips after the gate driver is restored to service.

For sites migrating from a Mark V architecture, the DS200DSPCH1A Digital Signal Processor Card may need to be re-evaluated, as the Mark VI IONET topology distributes processing tasks differently from the Mark V’s centralized VCMI bus. Engineers should also inspect the DS200EXPSG1ADA Expansion I/O Board if the turbine’s I/O count exceeds the base Mark VI rack capacity — this board extends the system’s discrete and analog channel count without requiring an additional controller chassis.

Communication continuity between the Mark VI controller and the plant DCS or SCADA layer is maintained through the DS200IIBDG1A Inter-Island Bus Driver Board, which bridges the IONET segment to the plant’s Ethernet or Modbus TCP infrastructure. Confirming that this board’s firmware is current before the DS200IMCPG1BBA swap ensures that the DCS historian and alarm management system remain synchronized throughout the retrofit window.

Finally, for sites that require physical isolation between the Mark VI control voltage domain and field instrumentation, a signal isolator module rated for the turbine’s 4–20 mA analog loops should be verified or replaced as part of the commissioning checklist. This is particularly relevant when the legacy Mark V wiring used unshielded twisted-pair runs that are now being reused in the upgraded Mark VI cabinet.

Retrofit Guidance FAQ

Q: Can I install the DS200IMCPG1BBA without modifying the existing Mark VI cabinet wiring?
A: Yes. The DS200IMCPG1BBA uses the standard Mark VI backplane connector and terminal block layout. No wiring changes are required when replacing a like-for-like board within the same Mark VI revision. If migrating from Mark V, a wiring audit against the Mark VI I/O terminal assignment drawing is recommended before energizing.

Q: Do I need to re-flash firmware or re-download the ToolboxST application after replacement?
A: In most Mark VI installations, the application logic resides on the UCSC or UCCE controller card, not on the DS200IMCPG1BBA itself. A board swap typically does not require a ToolboxST application re-download. However, if the replacement board carries a different hardware revision suffix, verify compatibility with your current ToolboxST software version before installation.

Q: What communication protocol does the DS200IMCPG1BBA use, and is it compatible with my plant DCS?
A: The board communicates over GE’s proprietary IONET serial bus within the Mark VI rack. Integration with external DCS platforms (ABB, Honeywell, Emerson, Siemens) is handled at the controller level via OPC, Modbus TCP, or PROFIBUS — not at the gate driver board level. No protocol configuration changes are needed on the DS200IMCPG1BBA itself.

Q: The original board slot is physically damaged. Can the DS200IMCPG1BBA fit in an adjacent slot?
A: The Mark VI rack assigns specific slot addresses to each board type via the backplane. The DS200IMCPG1BBA must occupy its designated slot as defined in the Mark VI hardware configuration file. Slot reassignment requires a hardware configuration change in ToolboxST and is not recommended without GE engineering support.

Q: How do I verify the board is functioning correctly after installation?
A: After seating the board and restoring power, check the Mark VI diagnostic display for any I/O pack fault codes associated with the IGBT drive circuit. Use ToolboxST’s online diagnostics to confirm that the board’s self-test passes and that gate drive signals are present on the relevant output channels before returning the turbine to service.

Warranty Assurance

Every DS200IMCPG1BBA unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each board undergoes a functional verification process that includes visual inspection for physical damage, connector integrity checks, and power-on self-test validation where applicable. Units that do not pass our outgoing quality inspection are quarantined and not offered for sale.

If a board is found to be defective on arrival or develops a fault within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or issue a refund in accordance with our returns policy. Our technical support team is reachable via email at [email protected] or by phone at +86 18359293191 to assist with installation questions, compatibility verification, and post-installation troubleshooting.

We maintain stock of the DS200IMCPG1BBA and related Mark VI boards in our Xiamen warehouse, enabling same-day or next-business-day dispatch for in-stock orders. International shipping is available via DHL, FedEx, and UPS with full tracking. Lead time for out-of-stock units is communicated at the time of inquiry.

For procurement teams managing multi-site turbine fleets, TOPNLMS offers volume pricing and consignment stock arrangements for critical Mark VI spare parts. Contact us directly to discuss your site’s spare-parts strategy and annual maintenance schedule.
