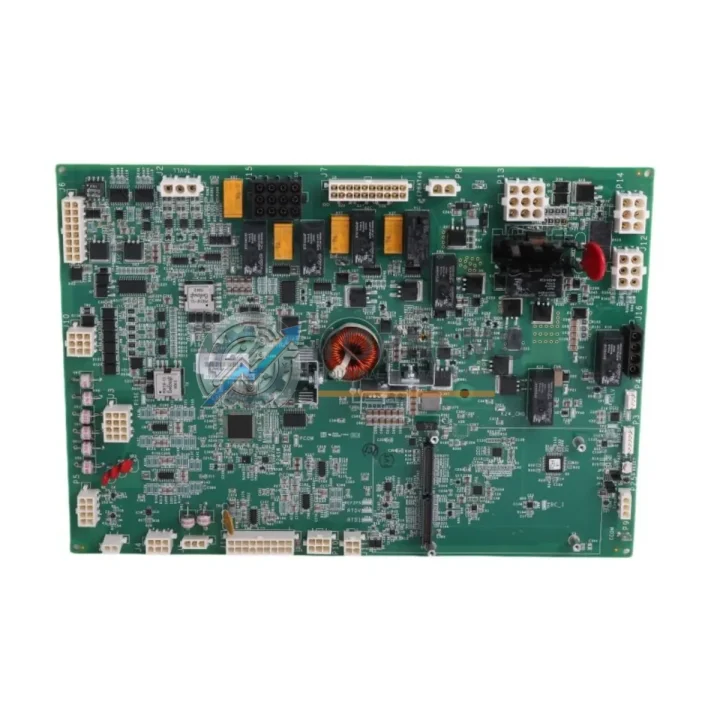

GE IS215WEPAH2B Ruggedized Excitation Control PCB Mark VIe

Product Overview

GE IS215WEPAH2B Ruggedized Excitation Control PCB Mark VIe: Industrial Resilience for Harsh Environments

The GE IS215WEPAH2B is a high-reliability Excitation Control Printed Circuit Board engineered for the Mark VIe turbine control platform — one of GE’s most advanced distributed control architectures for power generation and heavy industrial applications. Designed to operate continuously in environments characterized by high temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this board delivers the kind of rugged, uninterrupted performance that critical infrastructure demands.

In power plants, petrochemical facilities, offshore platforms, and metallurgical operations, excitation control is not a peripheral function — it is the backbone of generator stability. The IS215WEPAH2B manages field excitation voltage and current regulation with precision, ensuring that generators connected to the Mark VIe control system maintain stable output under fluctuating load conditions. Its PCB construction incorporates conformal coating and reinforced component mounting to resist moisture ingress, corrosive atmospheres, and vibration-induced fatigue — common failure modes in continuous-production industrial environments.

Within the Mark VIe architecture, the IS215WEPAH2B works in close coordination with companion boards such as the IS215UCVEH2A controller board and the IS215AEPAH1B analog I/O module, which together form the distributed I/O backbone of the turbine control cabinet. The board interfaces with the IONet Ethernet-based communication network, allowing real-time data exchange with the Mark VIe operator workstation and SCADA systems without signal degradation — even in high-EMI zones typical of large generator halls or switchgear rooms.

Field engineers replacing legacy Mark VI or Mark V excitation boards will find the IS215WEPAH2B’s form factor and connector pinout compatible with standard Mark VIe I/O racks, minimizing retrofit complexity. The board slots into the same DIN-rail-compatible enclosure used across the Mark VIe I/O module family, and its terminal block assignments align with established GE wiring standards, reducing re-termination labor during planned maintenance windows or emergency replacements.

Rugged Specifications Table

Comprehensive Protection Solutions

Deploying the IS215WEPAH2B as part of a broader Mark VIe system upgrade or emergency replacement strategy requires attention to the surrounding control architecture. The IS215UCVEH2A turbine controller board serves as the central processing unit coordinating excitation commands, and its firmware version must be compatible with the WEPAH2B revision installed. Alongside it, the IS215AEPAH1B analog input/output module handles process variable acquisition — temperature, pressure, and speed signals — feeding the excitation algorithm with real-time plant data.

For installations where the control cabinet also manages generator protection relays, the IS215ERBPG1B relay output board provides the discrete output channels needed to trip field breakers or activate AVR bypass circuits under fault conditions. Power supply integrity is equally critical: the IS215PSAAL1A power supply module delivers the regulated 28 VDC rail that the IS215WEPAH2B and its neighboring I/O boards depend on. A failed or degraded power supply is a common root cause of intermittent excitation faults, and stocking a spare IS215PSAAL1A alongside the WEPAH2B is a prudent maintenance strategy.

Communication continuity is maintained through the IS215GFOIH1A fiber optic interface module, which isolates the IONet segment from ground loops and high-voltage transients in generator step-up transformer bays. For sites running legacy ARCNET-based Mark VI systems in parallel with newer Mark VIe nodes, the IS215UCVEH2A’s dual-network capability bridges both protocols, protecting the investment in existing field wiring and I/O termination assemblies. Terminal blocks from the Mark VIe TB series — including the IS200TBAIH1C analog input terminal board — provide the physical wiring interface between field instruments and the I/O modules, and their screw-clamp design withstands the vibration levels common in gas turbine enclosures.

For sites requiring HMI integration, the Mark VIe system supports Cimplicity-based operator stations, and the IS215WEPAH2B’s excitation data is natively available on the IONet bus for display and alarming without additional protocol conversion hardware.

Application in Critical Infrastructure

The IS215WEPAH2B finds its most demanding applications in sectors where generator excitation failure carries immediate safety and financial consequences. In combined-cycle power plants, the board regulates reactive power output during grid disturbances, preventing voltage collapse events that can cascade across transmission networks. Offshore oil and gas platforms rely on it to maintain generator stability in salt-laden, high-humidity environments where standard PCBs would corrode within months — the conformal coating on the IS215WEPAH2B is specifically selected to resist chloride-induced corrosion.

In mining operations, where diesel generator sets power ventilation, hoisting, and dewatering systems, the board must tolerate coal dust infiltration and the shock loads generated by blasting operations. Metallurgical plants present a different challenge: arc furnace operations generate severe harmonic distortion and voltage flicker that stress excitation control circuits. The IS215WEPAH2B’s robust analog front-end filtering and isolated signal conditioning ensure accurate excitation response even under these conditions.

Water treatment facilities operating large pump motors depend on stable generator excitation during utility outages, and the IS215WEPAH2B’s fast response time — coordinated through the Mark VIe controller — ensures seamless transfer to island mode without voltage overshoot that could damage motor insulation. In all these environments, the board’s ability to operate continuously without scheduled recalibration reduces maintenance burden and extends mean time between failures for the overall control system.

Security & Quality FAQ

Q1: What warranty coverage is provided with the IS215WEPAH2B?
Every IS215WEPAH2B shipped by TOPNLMS carries a 12-month warranty from the date of delivery. Each unit undergoes functional testing prior to shipment, including power-on verification, communication interface checks, and visual inspection for component integrity. If a board fails within the warranty period under normal operating conditions, we provide a replacement or full refund — no questions asked.

Q2: How is compatibility with my existing Mark VIe system verified?
The IS215WEPAH2B is designed for direct installation in Mark VIe I/O racks. Compatibility depends on the firmware revision of the IS215UCVEH2A controller and the specific excitation application configured in the Mark VIe toolbox. We recommend providing your existing board revision and controller firmware version when ordering, and our technical team will confirm compatibility before shipment. For Mark VI to Mark VIe migration scenarios, we can advise on adapter requirements.

Q3: Can this board operate safely in hazardous or classified areas?
The IS215WEPAH2B is designed for installation within control cabinets that provide the primary environmental enclosure. For classified hazardous area installations (Zone 1/2 or Division 1/2), the board must be housed in a certified Ex e or Ex d enclosure per local regulatory requirements. TOPNLMS can advise on appropriate enclosure specifications for your site classification.

Q4: What is the lead time and shipping arrangement?
In-stock units ship within 1–3 business days from Xiamen, China via DHL, FedEx, or UPS Express. We provide tracking information and commercial invoice documentation for customs clearance. For urgent plant shutdowns or emergency replacements, contact us directly at [email protected] or +86 18359293191 for priority handling.
