GE DDS200PCCAG9ACB Replacement for DDS200 Series Drive

Product Overview

GE DDS200PCCAG9ACB Replacement for DDS200 Series Drive: Smooth Transition & Legacy System Compatibility

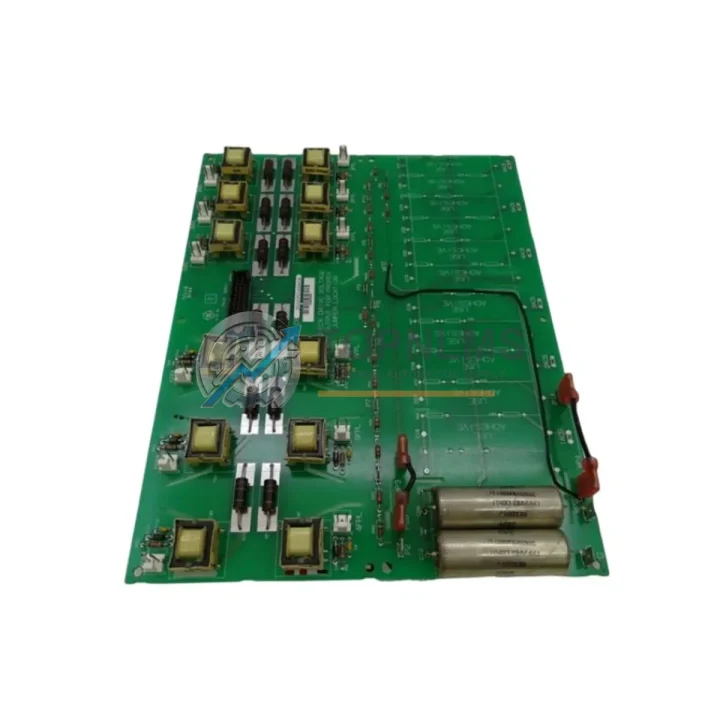

The GE DDS200PCCAG9ACB Power Connect Circuit Board is a direct replacement and upgrade solution for aging or discontinued components within the General Electric DDS200 Series AC drive platform. Industrial facilities operating legacy GE drive systems — including earlier DDS200 variants and associated control architectures — frequently encounter obsolescence challenges: discontinued firmware support, unavailable spare parts, and mounting downtime risk. This board is engineered to restore full drive functionality with minimal re-engineering, making it the preferred choice for maintenance engineers and procurement teams seeking a reliable, cost-effective retrofit path.

Whether your plant is migrating from an older GE DDS100 Series drive or replacing a failed power connect board within an existing DDS200 chassis, the DDS200PCCAG9ACB slots into the original mounting position without requiring structural modifications to the control cabinet. The board interfaces directly with the DDS200 drive’s internal bus architecture, preserving existing wiring harnesses, terminal block assignments, and I/O signal routing. This eliminates the need for full panel rewiring — a critical advantage in time-sensitive maintenance scenarios where minimizing production downtime is the primary objective.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DDS200 drive retrofit rarely involves a single component. In practice, maintenance teams replacing the DDS200PCCAG9ACB board often simultaneously address adjacent wear items and system integration points to ensure long-term reliability. The DDS200 Series control board — which governs speed reference, PID loop, and fault logic — should be inspected and replaced if firmware corruption or parameter loss is detected. Similarly, the DDS200 gate driver board interfaces directly with the power connect circuit and is a common co-failure component; replacing both simultaneously reduces the risk of repeat downtime events.

On the I/O side, the DDS200 analog I/O expansion module handles 4–20 mA and 0–10 V signal conditioning for process feedback loops. If signal drift or noise issues were present before the board failure, this module warrants replacement as part of the same maintenance window. For facilities integrating the DDS200 drive into a broader GE Fanuc Series 90 PLC or PACSystems RX3i control architecture, verifying the integrity of the communications interface module — typically a Profibus DP or DeviceNet adapter — is essential to restoring closed-loop control after the board swap.

Power quality upstream of the drive also deserves attention. The DDS200 line filter module and DC bus capacitor bank are life-limited components that degrade over time and can contribute to power connect board failures. Replacing these alongside the DDS200PCCAG9ACB board eliminates a common root cause of recurring faults. For installations where the drive feeds a critical motor load, adding a DDS200-compatible dynamic braking resistor module improves deceleration control and reduces regenerative voltage stress on the new board.

Finally, for commissioning and parameter backup, a GE drive programming cable (RS-232 or USB-to-serial adapter compatible with GE drive software) is recommended to verify parameter integrity and upload a known-good configuration file before returning the drive to service. Pairing the replacement board with a DDS200 operator keypad / HMI panel allows on-site technicians to monitor real-time fault codes and confirm successful board initialization without requiring a laptop connection at the panel.

Retrofit Guidance FAQ

Q: Do I need to rewire the control cabinet after replacing the DDS200PCCAG9ACB board?
A: No. The DDS200PCCAG9ACB is a direct form-fit-function replacement. All existing wiring harnesses, terminal block connections, and signal cables connect to the same positions on the new board. No rewiring is required for a standard swap.

Q: Will my existing drive parameters be preserved after the board replacement?
A: Drive parameters are stored in the control board’s non-volatile memory, not the power connect board. Replacing the DDS200PCCAG9ACB does not erase drive parameters. However, we recommend backing up all parameters via the programming cable before beginning any board replacement as a precautionary measure.

Q: Is the DDS200PCCAG9ACB compatible with Profibus DP or DeviceNet communication?
A: The power connect board itself does not handle fieldbus communication — that function is managed by the DDS200 communications adapter module. The DDS200PCCAG9ACB replacement is fully compatible with all DDS200 communication configurations, including Profibus DP, DeviceNet, and Modbus RTU, as these protocols operate through the separate communications module.

Q: How much physical space does the replacement board require?
A: The DDS200PCCAG9ACB matches the original board’s form factor exactly. No additional panel space, DIN rail extension, or cabinet modification is required. The board installs in the original slot using the existing mounting hardware.

Q: Can this board be used to upgrade a DDS100 Series drive?
A: The DDS200PCCAG9ACB is designed for the DDS200 platform. DDS100 Series drives use a different chassis and board architecture. For DDS100 to DDS200 migration projects, a full drive replacement is typically required rather than a board-level swap. Please contact our technical team for migration assessment support.

Q: What testing is performed before shipment?
A: Every DDS200PCCAG9ACB board undergoes functional verification testing prior to shipment, including power-on self-test, gate signal integrity check, and bus interface validation. A test report is available upon request.

Warranty Assurance

Every GE DDS200PCCAG9ACB supplied by TOPNLMS is backed by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during installation or commissioning. If a warranty claim is initiated, our technical team responds within 24 business hours to assess the fault, arrange a replacement unit, and coordinate return logistics at no additional cost to the buyer.

Prior to dispatch, each board is individually inspected and functionally tested. Shipments include a packing list, test confirmation, and — where applicable — original manufacturer documentation. For procurement teams requiring traceability, batch records and inspection reports are available on request. We ship from Xiamen, China, with DHL Express, FedEx International Priority, and UPS Worldwide Expedited options available to minimize lead time for urgent maintenance requirements.

TOPNLMS maintains standing inventory of high-demand GE drive components to support emergency procurement scenarios. Same-day dispatch is available for orders confirmed before 14:00 CST. For volume orders or long-term supply agreements, contact our sales team to discuss consignment stock arrangements and priority fulfillment terms.

Our after-sales support team includes engineers with hands-on experience in GE drive systems, available to assist with installation questions, commissioning guidance, and fault diagnosis throughout the warranty period. We are committed to ensuring that every replacement board we supply performs reliably from first power-on through the full warranty term and beyond.
