GE 269PLUS-100P-120 Original Industrial Spare MULTILIN Compatible: System Stability and Industrial Spare Maintenance Value

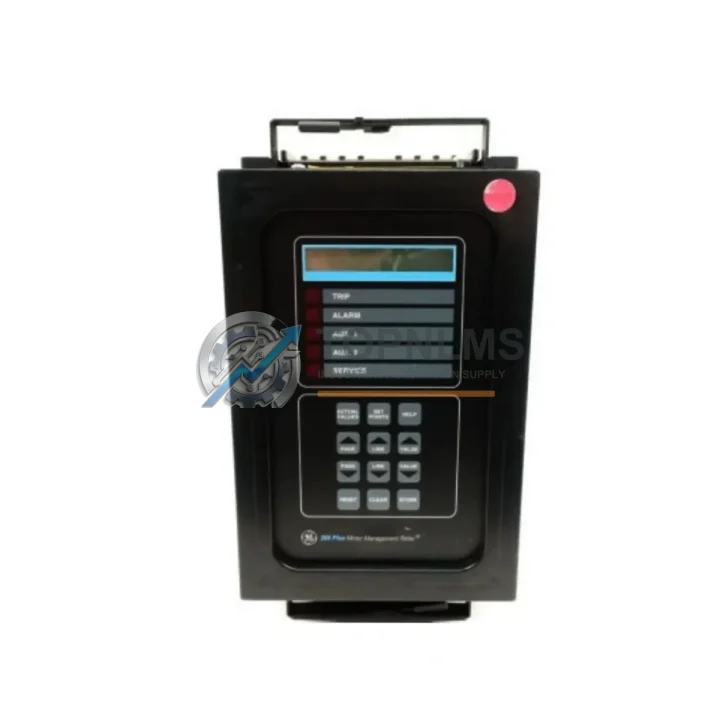

The GE 269PLUS-100P-120 is a core motor management relay from the GE MULTILIN 269 Plus series, engineered for continuous-duty industrial motor protection in demanding manufacturing, oil & gas, water treatment, and heavy process environments. When a motor protection relay fails or reaches end-of-life, unplanned downtime cascades across the entire control loop — affecting upstream PLCs, downstream actuators, and the safety interlock chain. Stocking an original 269PLUS-100P-120 as a verified spare eliminates that risk and restores system stability within the shortest possible replacement window.

This unit ships fully tested against GE MULTILIN factory specifications, with each relay verified for pickup accuracy, trip timing, and communication integrity before dispatch. A 12-month warranty covers all units, giving procurement and maintenance teams the confidence to hold this part as a long-cycle spare without quality risk.

Critical Technical Specs

Preventive Maintenance Strategy

A motor management relay does not operate in isolation. The 269PLUS-100P-120 sits at the center of a motor protection circuit that depends on the integrity of every upstream and downstream component. When scheduling a relay replacement or annual MCC inspection, maintenance teams should treat the 269PLUS-100P-120 swap as the anchor event for a broader preventive maintenance pass across the entire motor control cabinet.

Begin with the current transformer (CT) wiring and terminal blocks feeding the relay’s analog inputs. Corroded or loose CT connections are a leading cause of nuisance trips and false ground-fault alarms — replacing the relay without inspecting the CT circuit leaves the root cause unresolved. At the same time, check the 120 VAC control power supply feeding the relay’s coil circuit; a degraded control power transformer or aging fuse block can cause intermittent relay resets that mimic relay failure. Replacing the fuse module or control power fuse holder alongside the 269PLUS-100P-120 is a low-cost step that eliminates a common callback.

The RS-485 Modbus communication cable connecting the relay to the SCADA or PLC should be inspected for insulation damage and connector integrity. In older MCCs, the RS-485 termination resistor and cable shield grounding are frequently overlooked during relay swaps, leading to communication errors after reinstallation. If the plant runs a GE PACSystems RX3i or a Schneider Electric Modicon M340 PLC as the supervisory controller, verify that the Modbus node address and baud rate settings on the replacement relay match the existing network configuration before energizing.

For motor starters in the same cabinet, inspect the contactor coil and auxiliary contacts. A worn contactor that chatters under load will generate nuisance trip signals that the 269PLUS-100P-120 will correctly log — but the relay is not the fault source. Replacing the contactor or its auxiliary contact block during the same maintenance window prevents repeat callouts. Similarly, the overload relay or soft-starter bypass contactor in the motor circuit should be checked for contact wear and thermal aging.

If the motor is driven through a variable frequency drive (VFD), confirm that the VFD’s output filter and motor cable are within specification. Excessive cable capacitance or a failing output reactor can generate high-frequency ground currents that the 269PLUS-100P-120’s ground fault element may detect as a fault. Inspecting the VFD’s DC bus capacitors and cooling fans during the same shutdown window is a best practice for any motor protection relay replacement in a drive-fed circuit.

Finally, review the HMI or operator panel connected to the motor control system. If the plant uses a GE QuickPanel or a Siemens SIMATIC HMI for motor status display, verify that the relay’s trip and alarm status bits are correctly mapped after the replacement. A brief functional test — including a simulated overload trip and communication readback — confirms system integrity before returning the motor to service.

Strategic Replacement Solutions

The GE MULTILIN 269 Plus series has been a standard in motor protection for over two decades. Many plants running legacy MCC lineups from the 1990s and 2000s still depend on 269 Plus relays as the primary motor protection device, with no immediate plans to migrate to newer platforms such as the GE MULTILIN 869 or the Schweitzer Engineering SEL-710. For these facilities, sourcing an original 269PLUS-100P-120 is the lowest-risk, lowest-cost path to restoring motor protection without re-engineering the control circuit, re-terminating wiring, or rewriting PLC logic.

The 269PLUS-100P-120 is a direct form-fit-function replacement for any existing 269 Plus relay with the same CT range and control voltage suffix. No wiring changes are required. The existing CT connections, control power wiring, RS-485 cable, and panel cutout are all retained. This makes the 269PLUS-100P-120 the preferred spare for plants that prioritize rapid return-to-service over system modernization — particularly in facilities where a single motor trip can halt an entire production line or process train.

For plants managing aging motor protection infrastructure across multiple MCCs, holding one or two 269PLUS-100P-120 units in the maintenance storeroom as a rotating spare is a proven strategy for reducing mean time to repair (MTTR). The 12-month warranty on each unit means that storeroom spares remain covered through a full annual maintenance cycle, and the pre-shipment functional test eliminates the risk of installing a defective unit during an emergency repair.
