GE 531X306LCCBFM1 Replacement/Upgrade Solution for LM Drive

Product Overview

GE 531X306LCCBFM1 Replacement/Upgrade Solution for LM Drive: Smooth Transition & Legacy System Compatibility

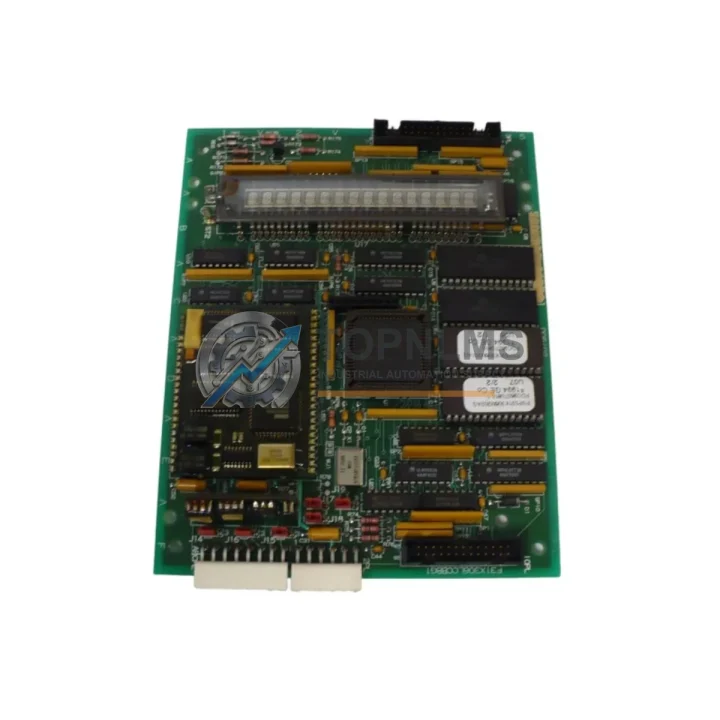

The GE 531X306LCCBFM1 is a Drive Display Card / Operator Interface Module originally designed for General Electric’s LM Series variable-speed drive platforms. As GE progressively phases out legacy 531X-series control boards, many industrial facilities operating older LM drives, 6KAF, 6KCF, and AF-600 FP drive cabinets face the critical challenge of sourcing reliable, drop-in compatible replacements without triggering full drive system overhauls. TOPNLMS stocks verified, tested units of the 531X306LCCBFM1 to support your migration, retrofit, or emergency replacement requirements with minimal downtime.

Whether your plant is running a legacy GE LM Series drive that has been in continuous service for over a decade, or you are executing a planned modernization from an older 531X-series platform to a current-generation GE PowerFlex-compatible architecture, the 531X306LCCBFM1 operator interface module serves as the critical human-machine bridge between the drive’s internal control logic and the operator panel. Its replacement must be handled with precision — incorrect substitution of display cards can result in communication faults, parameter loss, or drive trip events that extend unplanned downtime far beyond the initial failure window.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy GE LM Series drive environment rarely involves a single component. In practice, facilities undertaking a planned retrofit or emergency repair of a system built around the 531X306LCCBFM1 display card will typically also need to evaluate the condition and availability of several adjacent modules within the same drive cabinet or control rack.

The 531X307LCCBFM1 and 531X309LCCBFM1 are closely related 531X-series control and interface boards that share the same card cage architecture and backplane communication protocol. If your drive cabinet houses multiple 531X-series boards, it is operationally prudent to inspect and, where necessary, replace these companion cards simultaneously to avoid sequential failures after the primary display card is restored. Similarly, the 531X301CCHASM1 power supply board, which provides regulated DC rails to the 531X control card stack, should be tested before commissioning a new display card — a marginal power supply is a common root cause of repeated display card failures in aging LM Series drives.

For facilities migrating from the LM Series to a more current GE drive platform, the GE AF-600 FP series represents the most common upgrade path. The AF-600 FP uses a different operator panel and communication architecture, but the physical drive cabinet footprint is often compatible with existing enclosure dimensions, reducing the need for new control cabinet fabrication. During this transition, the 531X306LCCBFM1 continues to serve as the operational interface on the legacy drive until the full cutover is complete, making a tested spare unit essential for maintaining uptime during the migration window.

Communication continuity is another key consideration. Many LM Series installations use GE Modbus RTU or proprietary serial links to connect the drive to a supervisory SCADA or DCS layer — often a GE Fanuc Series 90-30 PLC or a GE PACSystems RX3i controller. When replacing the display card, verify that the drive’s communication parameters (baud rate, node address, parity) are documented before the swap, as these settings reside in the main control board and are not affected by the display card replacement. However, if the migration plan includes upgrading the communication module — for example, replacing an older 531X111PCHAJG1 communication option card with a current Ethernet/IP or PROFIBUS module — this should be sequenced carefully to avoid simultaneous multi-point changes that complicate fault isolation.

For I/O expansion during a broader system upgrade, the GE IC693MDL645 discrete input module and IC693MDL741 discrete output module are commonly encountered in the same control cabinet as LM Series drives, particularly in legacy motor control center (MCC) configurations. Ensuring these I/O modules are in good condition before commissioning a new display card prevents misdiagnosis of I/O faults as drive display issues. Where signal isolation is required between the drive’s analog outputs and the PLC’s analog input modules, a DIN-rail signal isolator (4–20 mA loop-powered type) is a low-cost addition that significantly improves noise immunity in retrofit installations.

Retrofit Guidance FAQ

Q: Can I replace the 531X306LCCBFM1 without reprogramming the drive?
A: Yes. The drive’s operating parameters, motor data, and application settings are stored in the main control board (531X301 or equivalent), not in the display card. Swapping the display card does not erase or alter drive parameters. After installation, the display should initialize and display the drive’s current status without any parameter re-entry.

Q: Is the wiring harness reusable from the old display card?
A: Yes. The 531X306LCCBFM1 uses the same OEM ribbon connector and mounting interface as the original unit. The existing harness can be reused directly. Inspect the connector for pin damage or corrosion before reconnecting.

Q: What communication protocols does this display card support?
A: The 531X306LCCBFM1 communicates via the GE LM Series drive’s internal backplane bus. It does not independently support external fieldbus protocols (Modbus, PROFIBUS, Ethernet/IP). External communication is handled by the drive’s dedicated communication option card, which is a separate module.

Q: Will this card fit in the same physical slot as the original?
A: Yes. The 531X306LCCBFM1 is a direct form-fit-function replacement for the original OEM unit. No bracket modification, DIN rail adaptation, or enclosure rework is required. Installation space requirements are identical to the original.

Q: What if my drive is showing a display fault but the main control board is functioning?
A: A display card fault typically manifests as a blank or frozen operator panel, loss of keypad response, or persistent display communication fault codes, while the drive itself continues to run (if commanded via terminal strip or fieldbus). In this scenario, replacing the 531X306LCCBFM1 is the correct first-line corrective action before replacing the main control board.

Q: Can this unit be used during a phased migration from LM Series to AF-600 FP?
A: Yes. During a phased migration where the legacy LM Series drive remains in service while the new AF-600 FP is being commissioned in parallel, maintaining a tested spare 531X306LCCBFM1 ensures the legacy drive can be kept operational without interruption until the final cutover date.

Warranty Assurance

Every 531X306LCCBFM1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point functional inspection including visual examination for physical damage, connector integrity verification, and board-level power-on testing where applicable. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement or refund support with a target response time of 1–2 business days. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling after delivery.

TOPNLMS ships globally from Xiamen, China, with standard lead times of 3–7 business days for stocked units. Express shipping options are available for emergency replacement requirements. All units are packaged in anti-static protective packaging with appropriate cushioning for international transit.

For procurement inquiries, technical compatibility questions, or bulk order pricing, contact the TOPNLMS technical sales team directly.
