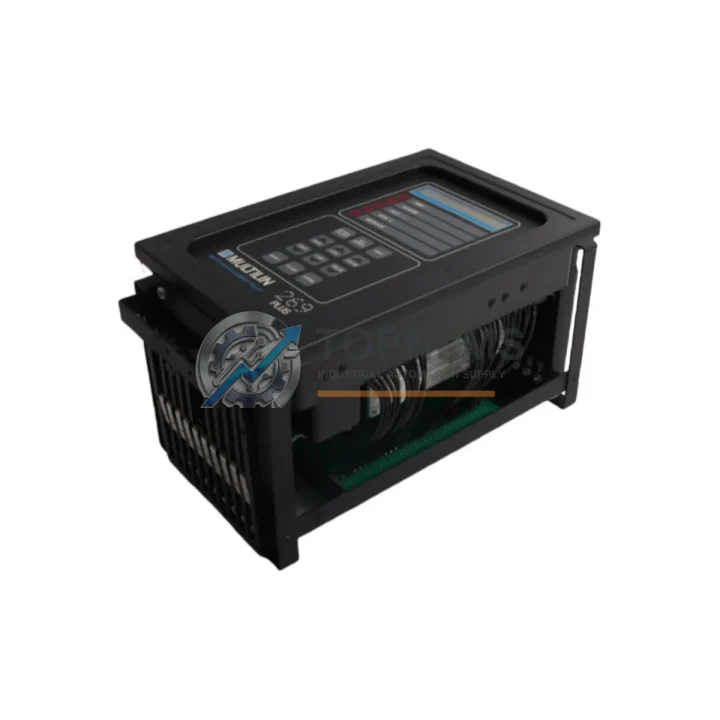

GE 269PLUS-D/O-100P-125VDC Original Spare Multilin 269 Plus

Product Overview

GE 269PLUS-D/O-100P-125VDC Original Spare Multilin 269 Plus: System Stability & Industrial Spare Maintenance Value

The GE Multilin 269PLUS-D/O-100P-125VDC is a full-featured digital motor management relay engineered for demanding industrial environments where motor protection, system uptime, and long-term reliability are non-negotiable. Designed as a direct original spare for the Multilin 269 Plus series, this relay delivers comprehensive protection functions — including thermal overload, phase unbalance, ground fault, and undercurrent detection — making it a cornerstone component in motor control centers (MCCs), switchgear panels, and distributed control system (DCS) architectures across petrochemical, power generation, water treatment, and heavy manufacturing facilities.

For maintenance engineers managing aging motor protection infrastructure, sourcing a verified original 269PLUS-D/O-100P-125VDC is critical. Counterfeit or incompatible substitutes introduce calibration drift, false trip events, and communication failures that cascade into unplanned downtime. This unit ships pre-tested against GE Multilin factory specifications, ensuring immediate drop-in replacement without re-engineering the protection scheme.

Critical Technical Specs

Preventive Maintenance Strategy

When a 269PLUS-D/O-100P-125VDC relay is flagged for replacement during a scheduled outage or emergency shutdown, experienced maintenance teams treat the event as a full motor protection circuit audit. The relay itself is rarely the only component showing wear. A thorough inspection of the motor control center should include the current transformer (CT) wiring and secondary connections feeding the 100P input — degraded CT insulation or loose terminals can introduce measurement errors that cause nuisance trips even after the relay is replaced.

The 125VDC auxiliary supply circuit deserves equal attention. Maintenance engineers should verify the DC bus voltage stability at the relay terminals, inspect the associated fuse module (typically a 2A or 4A DC-rated fuse block) for signs of thermal stress, and confirm that the DC power supply or battery charger feeding the 125VDC bus is operating within tolerance. A failing DC power supply module is a common root cause of relay auxiliary undervoltage alarms that are misdiagnosed as relay faults.

For facilities running GE Multilin 269 Plus relays across multiple motor feeders, it is sound practice to maintain a parallel inventory of the associated RS-485 communication cable assemblies and the Modbus RTU gateway or communication module connecting the relay network to the SCADA or DCS host. A single failed communication segment can blind the control room to multiple motor protection statuses simultaneously. Similarly, the relay output contacts drive downstream devices — motor contactors, circuit breakers, or interposing relay modules — and these should be inspected for contact wear and coil resistance during the same maintenance window.

RTD input modules connected to motor winding and bearing temperature sensors are another critical parallel check. If the 269 Plus relay is being replaced due to RTD channel faults, the RTD extension cables, terminal blocks, and the RTD elements themselves should be tested before the new relay is commissioned. Replacing the relay without verifying RTD circuit integrity will result in immediate repeat alarms. In larger motor protection panels, the terminal strip assemblies and DIN rail-mounted signal isolators between the relay and field wiring should also be inspected for oxidation and loose connections, particularly in humid or coastal industrial environments.

For facilities planning a broader motor protection upgrade cycle, it is worth evaluating whether adjacent feeders still running older GE Multilin 269 (non-Plus) relays should be migrated to the 269 Plus platform simultaneously. Standardizing on a single relay family simplifies spare parts inventory, reduces technician training requirements, and enables unified Modbus polling from a single SCADA driver. Stocking one or two additional 269PLUS-D/O-100P-125VDC units as cold-standby spares is a straightforward way to reduce mean time to repair (MTTR) for critical motor feeders.

Strategic Replacement Solutions

The 269PLUS-D/O-100P-125VDC is a direct form-fit-function replacement for earlier GE Multilin 269 Plus variants sharing the same auxiliary voltage and CT ratio. No relay socket modification or wiring harness redesign is required for standard panel installations. The relay retains backward compatibility with the original 269 Plus configuration software, allowing existing protection settings files to be uploaded directly — eliminating the re-commissioning time that would be required with a cross-brand substitution.

For facilities where the original 269 Plus relay has reached end-of-life or where GE Multilin factory support has been discontinued for a specific firmware revision, sourcing a verified original spare from an authorized industrial distributor is the lowest-risk path to restoring protection coverage. Cross-brand alternatives — while sometimes marketed as compatible — frequently require CT ratio recalibration, protection curve remapping, and communication protocol reconfiguration, all of which extend outage duration and introduce commissioning risk.

Maintaining a documented spare parts register that includes the exact 269PLUS-D/O-100P-125VDC part number, firmware version, and configuration file backup is a best practice that significantly reduces replacement time during emergency shutdowns. Facilities with multiple identical motor feeders should consider a one-for-ten spare ratio as a baseline inventory policy, adjusting upward for critical process motors where unplanned downtime carries high production or safety costs.

Support FAQ

Q: Is this unit tested before shipment?
A: Yes. Every 269PLUS-D/O-100P-125VDC unit undergoes functional verification against GE Multilin specifications prior to dispatch. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q: Can this relay replace an older GE Multilin 269 (non-Plus) unit in an existing panel?
A: The 269 Plus series uses a different relay socket and configuration architecture than the original 269 series. A direct drop-in replacement is not guaranteed without panel modification. We recommend confirming the existing relay model number and panel cutout dimensions before ordering. Our technical team can assist with compatibility verification.

Q: What is the recommended spare inventory strategy for this relay?
A: For facilities with 10 or more 269 Plus relay installations, maintaining 1–2 cold-standby units on-site is recommended. For critical process motors (pumps, compressors, fans) where downtime cost is high, a dedicated hot-standby spare per feeder may be justified. Bulk procurement pricing is available for orders of 3 units or more.

Q: How quickly can this unit be shipped, and what documentation is provided?
A: Standard orders ship within 1–3 business days. Each unit is accompanied by a packing list, test verification record, and 12-month warranty certificate. Express shipping options are available for emergency maintenance situations. Contact us at [email protected] or +86 18359293191 for urgent requirements.
