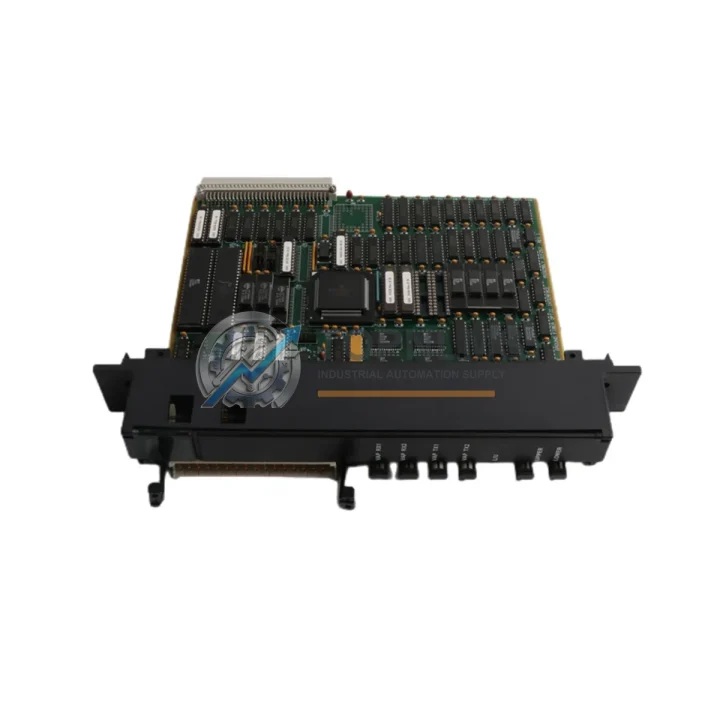

GE 151X1224CFG 31F257 GFOI Original Industrial Spare Mark Compatible

Product Overview

GE 151X1224CFG 31F257 GFOI Original Industrial Spare – Mark Series Excitation Control Board for System Stability

The GE 151X1224CFG 31F257 GFOI is an original General Electric excitation control board engineered for generator field output interface (GFOI) applications within the GE Mark Series turbine and generator control architecture. In industrial power generation and heavy manufacturing environments, the excitation control board is a mission-critical component: it governs reactive power output, voltage regulation, and field current management for synchronous generators. A failed or degraded GFOI board can trigger unplanned shutdowns, voltage instability, and cascading failures across the entire generator protection circuit.

At TOPNLMS, we stock the 151X1224CFG 31F257 GFOI as a verified original spare, fully tested prior to shipment, and backed by a 12-month warranty. Whether you are managing a planned outage, responding to an emergency shutdown, or building a strategic spare parts inventory for long-term asset reliability, this board is ready for immediate dispatch.

Critical Technical Specs

Preventive Maintenance Strategy

The GE 151X1224CFG 31F257 GFOI does not operate in isolation. In a GE Mark Series generator control cabinet, the excitation control board interfaces directly with a network of interdependent modules. A disciplined preventive maintenance program should treat the GFOI board as part of a broader inspection and replacement cycle rather than a standalone component.

During scheduled outages, maintenance teams should simultaneously inspect the GE DSPX excitation power supply module, which provides regulated DC power to the excitation circuit. A degraded power supply is a leading cause of premature GFOI board failure. Alongside this, the GE VCMI communication interface module should be checked for firmware integrity and communication faults, as GFOI alarms are frequently misdiagnosed when the root cause is a communication dropout rather than a board failure.

The GE PPRO protection processor board and GE PTUR turbine protection module share the same Mark Series backplane and should be inspected for loose edge connectors and corrosion during any GFOI replacement event. Technicians should also verify the condition of the GE TCEA analog I/O terminal board, which handles field current feedback signals — a faulty TCEA can produce erratic excitation readings that mimic GFOI failure, leading to unnecessary board replacements and extended diagnostic time.

On the power distribution side, the GE PSVO power supply output module and associated 24VDC bus fuse modules within the control cabinet should be tested under load. Blown or weakened fuses in the excitation supply rail are a common but overlooked contributor to GFOI instability. Similarly, the GE JDPS junction distribution panel terminal blocks and wiring harnesses should be inspected for insulation breakdown, particularly in high-temperature generator rooms where thermal cycling accelerates connector fatigue.

For facilities running aging Mark V systems, it is also advisable to maintain a buffer stock of the GE STCA simplex terminal board and GE ISPM I/O signal processor module, as these components share the same end-of-life horizon as the GFOI board and are increasingly difficult to source on short notice. Proactive procurement of these related spares — alongside the 151X1224CFG 31F257 GFOI — significantly reduces the risk of extended downtime during an unplanned excitation fault event and supports a robust, site-wide spare parts lifecycle strategy.

Strategic Replacement Solutions

The GE 151X1224CFG 31F257 GFOI is a direct original replacement for aging or failed GFOI boards in GE Mark V and Mark VI generator control systems. Unlike aftermarket alternatives, this original GE spare maintains full hardware and firmware compatibility with the existing Mark Series control architecture, eliminating the risk of parameter mismatch, calibration drift, or protection relay mis-coordination that can occur with non-OEM substitutes.

For facilities managing legacy Mark V systems approaching end-of-support, stocking the 151X1224CFG 31F257 GFOI as a strategic spare extends the operational life of the existing control system without requiring a full Mark VI or Mark VIe migration. This approach preserves capital expenditure budgets while maintaining generator availability and grid compliance obligations.

Replacement of the GFOI board is a controlled procedure: the board is hot-swappable in some Mark VI configurations, but Mark V installations typically require a controlled generator shutdown, field de-energization, and a post-installation excitation tuning sequence. TOPNLMS provides full pre-shipment functional testing documentation to support commissioning and site acceptance testing, reducing on-site installation time and minimizing the duration of the maintenance window.

For facilities with multiple generator units, we recommend maintaining at least one 151X1224CFG 31F257 GFOI board per site as a cold standby spare. Given the global supply chain constraints affecting legacy GE Mark Series components, lead times for non-stocked GFOI boards can extend to 8–16 weeks. A pre-positioned spare eliminates this risk entirely and supports a mean time to repair (MTTR) target of under 4 hours for excitation system faults.

Support FAQ

Q1: Is the GE 151X1224CFG 31F257 GFOI compatible with both Mark V and Mark VI systems?
The 151X1224CFG 31F257 GFOI is primarily designed for GE Mark V generator control systems. Compatibility with Mark VI configurations depends on the specific cabinet revision and backplane version. We recommend providing your system serial number and cabinet drawing reference when ordering to confirm fit. Our technical team can assist with compatibility verification prior to shipment.

Q2: What testing is performed before shipment?
Every 151X1224CFG 31F257 GFOI unit shipped by TOPNLMS undergoes functional bench testing covering power-on self-test, analog output linearity, field current interface signal integrity, and communication bus response. A test report is available upon request and can be included with the shipment documentation for site acceptance records.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a replacement unit dispatched within 5 business days of fault confirmation.

Q4: How should I manage spare parts inventory for aging GE Mark Series systems?
For Mark V systems beyond OEM support, we recommend a tiered spare parts strategy: maintain one GFOI board (151X1224CFG 31F257) as an immediate cold standby, and place a scheduled annual order for high-wear interface boards and power supply modules. This approach balances carrying cost against the financial exposure of an unplanned generator outage, which in most industrial facilities exceeds the cost of a full spare parts kit within the first hour of downtime.
