GE IS200BPIBG1AEB Ruggedized IGBT Gate Driver Module for Harsh Environments

Product Overview

GE IS200BPIBG1AEB Ruggedized IGBT Gate Driver Module for Harsh Environments

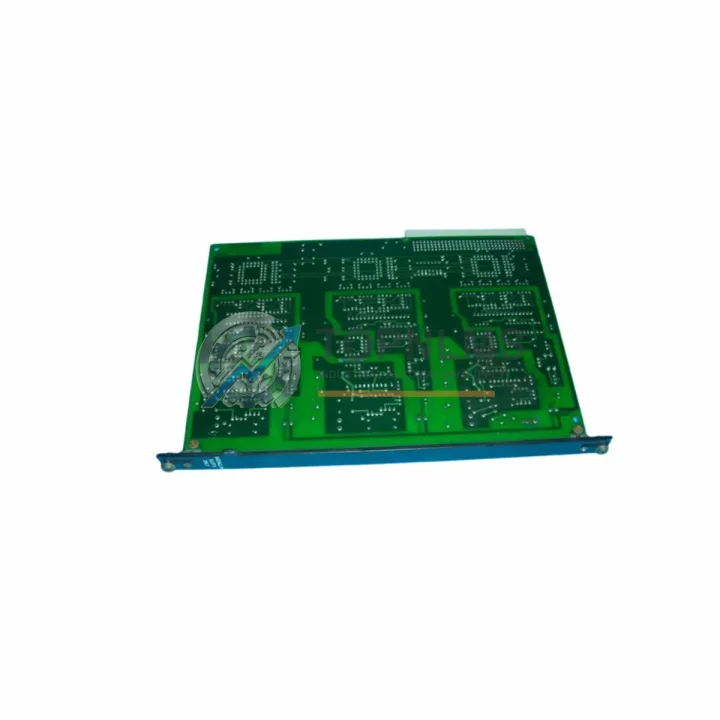

The GE IS200BPIBG1AEB is a high-reliability IGBT Gate Driver Interface Board engineered for the GE Mark VIe turbine control platform — one of the most demanding distributed control architectures deployed in power generation, oil & gas, and heavy industrial facilities worldwide. Designed to operate continuously under extreme thermal cycling, high-humidity, vibration, and electromagnetic interference conditions, this board delivers the switching precision and fault isolation that mission-critical rotating equipment demands.

In industrial environments where a single gate driver failure can cascade into unplanned turbine shutdown, production loss, or safety system activation, the IS200BPIBG1AEB provides the robust IGBT switching interface that keeps excitation and power conversion stages operating within safe parameters. Its conformal-coated PCB construction resists moisture ingress and corrosive atmospheres found in coastal power plants, offshore platforms, and chemical processing facilities. The board interfaces directly with the Mark VIe I/O and control modules — including the IS200TTURH1CBB turbine control board and IS200VCRCH1B voltage regulator card — ensuring seamless signal integrity across the full control loop.

Rugged Specifications Table

Comprehensive Protection Solutions

The IS200BPIBG1AEB does not operate in isolation — it is a critical node within a layered protection and control architecture. In a typical Mark VIe turbine control cabinet, this gate driver board works in concert with the IS200ESELH1A Ethernet switch module to maintain real-time communication between the controller and field I/O, while the IS200TRLYH1B relay output terminal board handles discrete safety interlocks and trip signals. Power integrity for the entire rack is sustained by the IS200EPCTG1A power converter board, which conditions incoming plant power into the regulated DC rails the gate driver requires for stable IGBT switching.

On the I/O side, the IS200TBCIH1C terminal board for current inputs feeds analog process signals into the Mark VIe controller, enabling closed-loop excitation control that the IS200BPIBG1AEB executes at the power stage. For installations requiring redundant communication paths — common in nuclear auxiliary systems and critical infrastructure — the IS200VCMIH1B VME communication interface module provides the protocol bridge between the Mark VIe backbone and plant-wide DCS networks running PROFIBUS or Modbus. Safety-rated installations also pair this board with the IS200SRTDH1A RTD input module to monitor winding and bearing temperatures, triggering protective shutdowns before thermal damage reaches the IGBT switching stage.

For facilities managing multiple turbine strings, the IS200TSVOH1A servo output board coordinates valve actuation in synchrony with the gate driver’s switching commands, ensuring fuel and steam flow adjustments are executed with millisecond-level precision. Together, these IS200-series components form a tightly integrated, fault-tolerant control system capable of sustaining continuous operation across the harshest industrial duty cycles.

Application in Critical Infrastructure

The GE IS200BPIBG1AEB is deployed across the most demanding sectors of global industrial infrastructure. In combined-cycle power plants, it governs the IGBT switching stages of static excitation systems for gas and steam turbine generators, where even microsecond-level gate timing errors can induce harmonic distortion or generator trip events. Operators in the oil & gas sector rely on this board within compressor drive control panels on offshore platforms, where salt-laden air, constant vibration from rotating machinery, and wide ambient temperature swings demand components with proven environmental robustness.

In mining and mineral processing facilities, the IS200BPIBG1AEB supports variable-speed drive control for large mill motors and conveyor systems, where dust ingress and ground-loop interference are persistent threats to control electronics. Water treatment and pumping stations operating in high-humidity, chemically aggressive environments benefit from the board’s conformal coating, which prevents electrochemical migration on PCB traces during extended unattended operation. Steel and aluminum smelting operations, where radiated heat and electromagnetic noise from arc furnaces create extreme stress on control hardware, have standardized on Mark VIe platforms — and by extension, on IS200BPIBG1AEB gate driver boards — for their demonstrated resilience and long mean-time-between-failure (MTBF) performance.

For plant maintenance engineers managing aging Mark VIe installations, the IS200BPIBG1AEB represents a high-value spare part that can be held in local inventory to eliminate the multi-week lead times associated with OEM procurement channels. Stocking this board as a critical spare reduces unplanned downtime risk and supports rapid board-swap maintenance strategies that keep turbines online during scheduled outage windows.

Security & Quality FAQ

Q1: What warranty coverage is provided with the IS200BPIBG1AEB?
Every IS200BPIBG1AEB shipped by TOPNLMS carries a 12-month quality warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with direct replacement or repair service.

Q2: How is each board tested before shipment?
All units undergo pre-shipment functional verification including power-on testing, signal path continuity checks, and visual inspection for PCB damage, component integrity, and connector condition. Boards are packed in anti-static ESD-safe packaging with desiccant to prevent moisture exposure during transit.

Q3: Is the IS200BPIBG1AEB compatible with all Mark VIe rack configurations?
The IS200BPIBG1AEB is designed for GE Mark VIe turbine control systems and is compatible with standard IS200-series rack assemblies. Compatibility with specific rack revisions or firmware versions should be confirmed against your system’s Bill of Materials. Our technical team can assist with cross-referencing your existing configuration.

Q4: Can TOPNLMS support long-term supply for ongoing maintenance programs?
Yes. TOPNLMS maintains inventory of IS200-series Mark VIe components to support both emergency replacement and planned maintenance programs. We offer volume pricing for customers establishing long-term spare parts agreements, with consistent lead times and documented traceability for each unit supplied.
