FUJI NP1BS-06 Replacement Upgrade Solution for NP1

Product Overview

FUJI NP1BS-06 Replacement & Upgrade Solution for NP1 Series: Seamless Transition to Modern Control Architecture

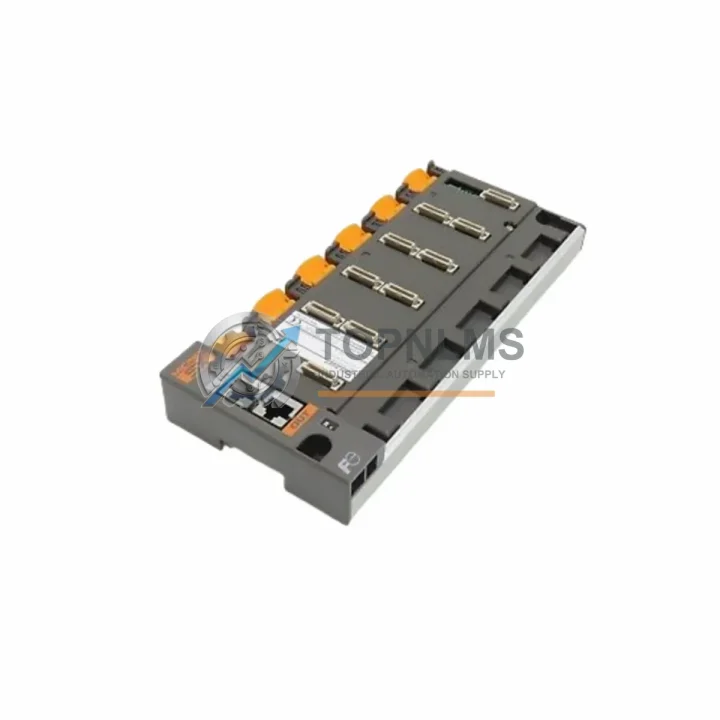

The FUJI NP1BS-06 is a 6-slot PLC backplane (base board) designed for the FUJI Electric NP1 Series programmable logic controller platform. As industrial facilities face the reality of aging control infrastructure, discontinued spare parts, and escalating maintenance costs, the NP1BS-06 serves as a critical enabler for both direct replacement and structured system modernization. Whether you are restoring a failed backplane in an existing NP1 rack or executing a phased migration from an older FUJI MICREX-F or MICREX-SX platform, this base board provides the physical and electrical foundation for a reliable, low-disruption upgrade path.

The NP1BS-06 accommodates up to six NP1-series modules in a single rack configuration. Its slot architecture is fully compatible with the NP1 CPU modules such as the NP1L-RS1 and NP1L-RS4, as well as the full range of NP1 digital and analog I/O modules. When replacing a failed backplane in an operational system, the module-to-slot mapping, field wiring terminations, and inter-module communication buses are preserved without requiring reprogramming of the NP1 CPU or reconfiguration of the I/O table — a key advantage for minimizing unplanned downtime in continuous-process or discrete manufacturing environments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful NP1BS-06 backplane replacement or system migration involves more than swapping the base board. In practice, field engineers working on NP1 platform upgrades will typically address several interdependent components in the same service window to ensure system integrity and reduce the risk of secondary failures.

The NP1PS-24A power supply module is the most common companion replacement when the backplane is being serviced — capacitor aging in the PSU often parallels backplane connector wear, and replacing both in a single outage window is standard practice. For systems that rely on serial communications, the NP1L-RS4 communication module (supporting RS-232C and RS-485) should be verified for firmware compatibility with the replacement backplane, particularly if the existing unit has been in service for more than five years.

In migration scenarios where the customer is transitioning from a FUJI MICREX-SX platform, the NP1L-ET1 Ethernet communication module enables integration with modern SCADA and MES systems over standard TCP/IP, replacing the need for legacy OPCN-1 gateways. This is particularly relevant for facilities upgrading their HMI layer — the NP1 platform interfaces cleanly with FUJI’s V9 series HMI panels via Ethernet or RS-485, eliminating the proprietary communication adapters required by older MICREX-F installations.

For I/O expansion beyond the 6-slot NP1BS-06 rack, the NP1BS-10 (10-slot backplane) is the natural scale-up option within the same NP1 family, sharing identical power supply, CPU, and module compatibility. In distributed I/O architectures, the NP1W series remote I/O modules can extend the system footprint without requiring additional CPU resources, communicating over the NP1 backplane bus through the expansion interface.

Wiring continuity is a critical concern during backplane replacement. The NP1 series uses front-connector I/O modules with removable terminal blocks, meaning field wiring can be disconnected from the I/O modules and reconnected to the replacement modules without re-terminating individual conductors — a significant time saving during emergency replacements. Signal isolation requirements should be reviewed at this stage; where 24 VDC field signals interface with legacy 120 VAC control circuits, signal isolators or interposing relays may be required to maintain electrical separation.

For customers sourcing the NP1BS-06 as a long-term spare or as part of a planned lifecycle management program, we maintain verified stock with pre-shipment functional testing. Units are shipped with full documentation, and our technical team can provide configuration guidance for common NP1 system topologies.

Retrofit Guidance FAQ

Q: Can I replace the NP1BS-06 backplane without reprogramming the NP1 CPU?
A: Yes. The NP1 CPU stores its program in internal flash memory or an optional memory cassette. Replacing the backplane does not affect the CPU program. After physical installation, the CPU will re-initialize communication with the I/O modules automatically on power-up, provided the module slot assignments are unchanged.

Q: Is the NP1BS-06 compatible with all NP1 series I/O modules?
A: The NP1BS-06 is compatible with the full range of NP1 digital input, digital output, analog input, and analog output modules. Compatibility with NP1 special function modules (positioning, high-speed counter) should be verified against the module’s hardware revision and the backplane’s production date code.

Q: What communication protocols does the NP1 platform support after migration?
A: The NP1 platform natively supports RS-232C and RS-485 (Modbus RTU) via the NP1L-RS4 module, and Ethernet (Modbus TCP, FUJI proprietary) via the NP1L-ET1 module. PROFIBUS-DP connectivity is available through the NP1L-PB1 adapter for integration with existing PROFIBUS field device networks.

Q: How much panel space does the NP1BS-06 require compared to a MICREX-F rack?
A: The NP1BS-06 has a significantly smaller footprint than equivalent MICREX-F racks. In most retrofit applications, the NP1 rack can be mounted in the same panel without structural modification, with space savings that allow for additional terminal blocks or cable management components.

Q: What is the lead time and shipping arrangement?
A: In-stock units ship within 1–3 business days from Xiamen, China via DHL Express, FedEx International, or sea freight depending on order volume. Export documentation, commercial invoices, and packing lists are provided for customs clearance.

Warranty Assurance

Every NP1BS-06 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including backplane bus continuity testing, power rail integrity checks, and visual inspection of connector pins and PCB condition. Units that do not meet our quality threshold are not shipped.

In the event of a warranty claim, our after-sales team responds within 24 business hours. Defective units are replaced or credited at our discretion, with return shipping costs covered for confirmed manufacturing defects. We do not charge restocking fees for warranty returns.

For procurement teams requiring documentation, we can provide test reports, product origin certificates, and conformity declarations upon request. Volume orders and long-term supply agreements are supported with priority allocation from our inventory.

For technical inquiries, quotation requests, or order placement, contact our team directly:

📧 [email protected] | 📞 +86 18359293191
