FUJI Electric NP1BS-08S Original Industrial Spare NP1B Compatible

Product Overview

FUJI Electric NP1BS-08S: System Stability Through Verified Original Industrial Spare Parts

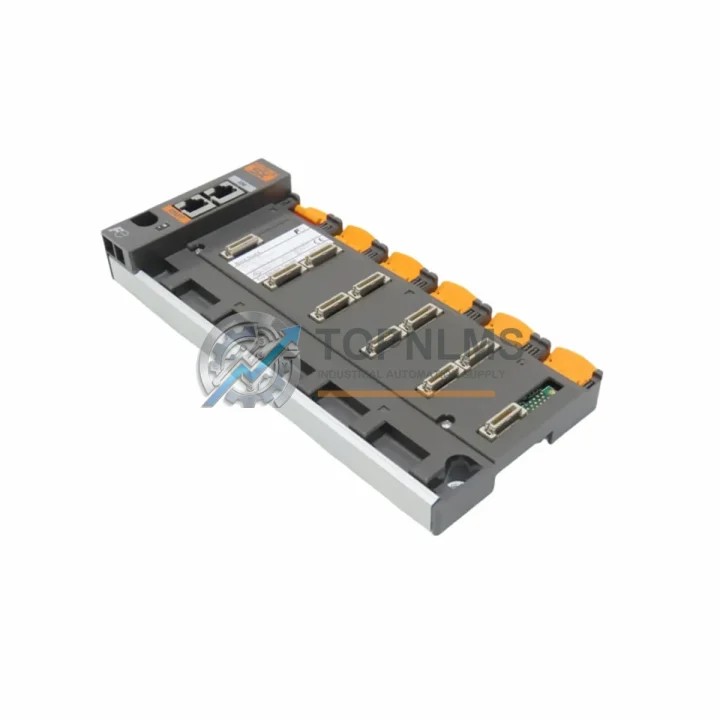

The FUJI Electric NP1BS-08S is an 8-slot backplane module designed for the NP1B Series programmable logic controller platform — one of FUJI Electric’s proven mid-range automation architectures widely deployed across manufacturing, process control, and utility industries. As the structural and electrical backbone of the NP1B control rack, the NP1BS-08S provides the physical mounting, inter-module communication bus, and power distribution rail that every I/O module, CPU, and communication card in the rack depends upon. When this component degrades or fails, the entire control node is compromised. Sourcing a verified original replacement is not optional — it is a maintenance imperative.

At TOPNLMS, every NP1BS-08S unit is sourced from authorized supply channels, individually inspected prior to dispatch, and covered by a 12-month replacement warranty. We ship globally with full export documentation and typical lead times of 3–7 business days for in-stock units.

Critical Technical Specs

Preventive Maintenance Strategy

A backplane replacement event is one of the highest-impact interventions in a PLC control cabinet. Because the NP1BS-08S physically hosts every module in the rack, a scheduled replacement or inspection should be treated as an opportunity to audit the entire control node — not just the backplane itself.

Begin with the NP1B Series CPU module (such as the NP1B-CPU or NP1B-CPU2). The CPU is the most operationally critical component in the rack; if the backplane is being replaced due to age or bus degradation, the CPU’s firmware version and battery backup status should be verified simultaneously. A failing lithium backup battery in the CPU can cause program loss during power cycling — a risk that compounds when the backplane is disturbed during maintenance.

Next, inspect all installed NP1B digital I/O modules and analog I/O modules. Backplane slot contacts can accumulate oxidation over years of operation, particularly in humid or chemically active environments. When reseating modules onto the new NP1BS-08S, clean the edge connectors with isopropyl alcohol and verify that each module’s LED status indicators return to normal within one scan cycle after power-up.

The NP1B power supply module deserves particular attention. Power supply modules in long-running systems often show capacitor aging that manifests as voltage ripple — a condition that stresses the backplane bus and can accelerate connector wear. If the system has been in service for more than five years, replacing the power supply module alongside the NP1BS-08S backplane is a cost-effective way to reset the maintenance clock on the entire rack.

For systems using NP1B communication modules — including PROFIBUS-DP, Ethernet/IP, or serial RS-485 adapters — verify that communication parameters and node addresses are documented before the backplane swap. Communication modules retain configuration in onboard flash, but physical reseating can occasionally trigger a cold-start handshake that requires re-initialization at the network master.

While the control cabinet is open, inspect the terminal blocks and wiring harnesses connected to I/O modules. Loose terminal screws and insulation degradation are among the most common root causes of intermittent faults that are incorrectly attributed to PLC hardware. Tighten all field-wiring terminals to the manufacturer’s specified torque and replace any terminals showing discoloration or cracking.

If the system includes signal isolators or signal conditioners between field sensors and the NP1B analog input modules, verify their calibration and output range. Drift in signal isolators can introduce measurement errors that accumulate undetected over months, leading to process deviations that are difficult to trace back to the instrumentation layer.

Finally, check the 24VDC power distribution fuse modules and circuit breakers feeding the control cabinet. A backplane replacement is the right moment to replace any fuses that are approaching their rated age or show signs of thermal stress, and to verify that the cabinet’s surge protection devices (SPDs) are still within their service life.

Strategic Replacement Solutions

The NP1BS-08S is a direct original replacement for aging NP1B Series backplanes that have accumulated years of thermal cycling, vibration, and connector wear. Unlike third-party or remanufactured alternatives, an original FUJI Electric NP1BS-08S guarantees full bus timing compatibility with all NP1B CPU and I/O modules — eliminating the risk of intermittent communication errors that can arise from non-OEM backplane substitutes.

For facilities managing multiple NP1B control nodes, maintaining at least one NP1BS-08S as a cold-standby spare is a recognized best practice in industrial maintenance planning. The cost of a single unplanned production stoppage — including lost output, emergency labor, and expedited freight for a replacement part — typically exceeds the cost of stocking two or three spare backplanes by a significant margin. Proactive inventory of the NP1BS-08S, alongside the CPU and power supply modules, forms the minimum viable spare parts kit for any NP1B-based control system.

For older facilities where the NP1B Series is being phased out in favor of newer FUJI Electric MICREX-SX or MICREX-F Series controllers, the NP1BS-08S enables continued operation of legacy nodes during the transition period — avoiding the capital expenditure of a full system migration until the production schedule permits a planned cutover. This approach to legacy system life extension is widely used in automotive, food processing, and chemical manufacturing environments where control system changes require extensive validation and regulatory documentation.

All NP1BS-08S units shipped by TOPNLMS are tested for bus continuity and slot connector integrity before dispatch. Each unit ships with an inspection record and is covered by our 12-month replacement warranty — no questions asked for verified hardware defects.

Support FAQ

Q1: Is the NP1BS-08S compatible with all NP1B Series modules?
Yes. The NP1BS-08S is the standard 8-slot backplane for the NP1B Series and is compatible with all NP1B CPU modules, digital and analog I/O modules, communication modules, and power supply units. If you are unsure whether a specific module is compatible with your existing NP1B configuration, contact us with your full rack BOM and we will verify compatibility before shipment.

Q2: How do you verify the condition of each unit before shipping?
Every NP1BS-08S unit undergoes a pre-shipment inspection covering bus connector integrity, slot contact condition, PCB visual inspection, and dimensional verification against OEM specifications. Units that do not pass inspection are not shipped. An inspection record is included with each order.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers verified hardware defects in the NP1BS-08S unit itself. If the unit fails to function correctly in a properly configured NP1B rack within 12 months of the shipment date, we will provide a replacement unit at no charge. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical impact.

Q4: Can I order the NP1BS-08S as part of a broader spare parts kit for my NP1B system?
Yes. TOPNLMS supports bulk and kit orders for industrial maintenance programs. If you are building a spare parts inventory for one or more NP1B control nodes, contact us at [email protected] with your system configuration and we will prepare a consolidated quotation covering the backplane, CPU, power supply, and I/O modules you need.
