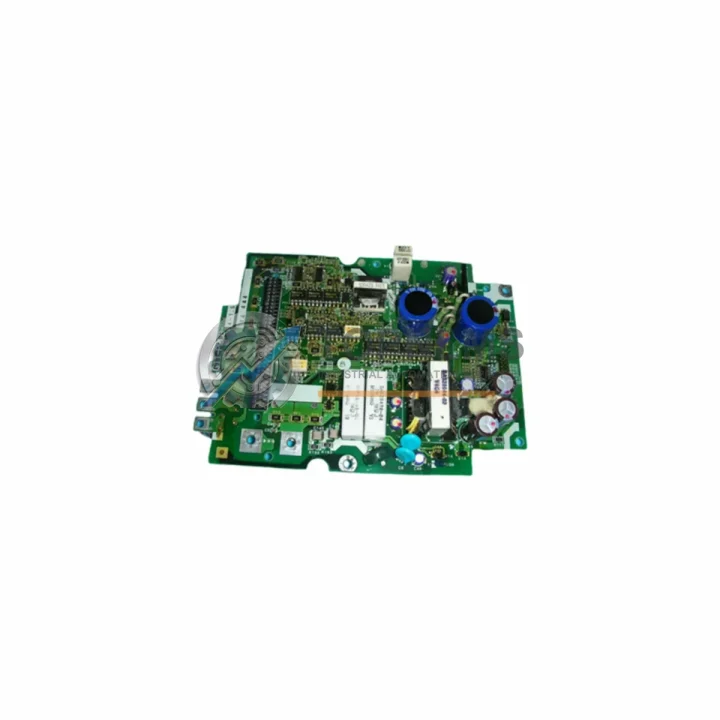

FUJI G11-PPCB-4-1.5 SA528530-06 Replacement for FRENIC G11: Smooth Transition & Legacy Drive Compatibility

When a FRENIC G11 series variable frequency drive fails at the power board level, production lines stop — and every hour of unplanned downtime carries a real cost. The FUJI G11-PPCB-4-1.5 (SA528530-06) is the direct replacement power PCB for the FRENIC G11 drive platform, engineered to restore full inverter functionality without requiring a complete drive replacement, control cabinet redesign, or PLC program modification. This board is the preferred solution for maintenance engineers managing aging FRENIC G11 installations across manufacturing, HVAC, water treatment, and process automation environments.

The FRENIC G11 series was widely deployed in 1.5 kW single-phase and three-phase motor control applications throughout the 1990s and 2000s. As original spare parts become increasingly scarce, sourcing a verified replacement power PCB — rather than attempting a full drive swap — is the most cost-effective and operationally safe path forward. The G11-PPCB-4-1.5 board maintains the same physical footprint, connector layout, and gate drive signal interface as the original, allowing direct board-level substitution with no mechanical modification to the drive chassis or control cabinet wiring.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FRENIC G11 power board replacement rarely happens in isolation. In practice, maintenance teams performing a board-level repair on a G11 drive will often simultaneously inspect or replace adjacent components to ensure the entire drive system is restored to reliable operation. The FRENIC G11 control PCB (the companion board responsible for parameter storage, keypad interface, and analog I/O signal conditioning) should be inspected for capacitor aging or corrosion whenever the power board is replaced — particularly on drives that have been in continuous service for over a decade.

The FRENIC G11 gate drive board and associated IGBT module are the most common failure points upstream of the power PCB. If the SA528530-06 board failed due to a shorted IGBT, the replacement power board must be installed alongside a verified IGBT module to prevent repeat failure. Similarly, the FRENIC G11 capacitor bank (DC bus electrolytic capacitors) should be evaluated for ESR degradation — aged capacitors are a leading cause of power board stress and premature failure in drives of this generation.

For sites running multiple FRENIC G11 or FRENIC P11 drives in parallel — common in multi-pump or multi-fan configurations — it is advisable to maintain a small buffer stock of SA528530-06 boards to minimize future downtime. The P11 series shares significant hardware architecture with the G11, and cross-referencing spare parts between these platforms is a well-established practice among experienced drive maintenance engineers.

Where the G11 drive interfaces with upstream control systems via RS-485 Modbus RTU, the communication module and parameter settings stored on the FRENIC G11 keypad / operator panel remain unaffected by a power board swap. Engineers can upload saved parameter files from a PC using the standard FRENIC Loader software and a compatible RS-232C or USB programming cable, restoring all drive parameters — including acceleration/deceleration ramps, frequency limits, and PID setpoints — without manual re-entry.

In control cabinet environments where the FRENIC G11 drive is mounted alongside a Mitsubishi MELSEC Q-series PLC or a Siemens S7-300 CPU issuing speed reference commands via analog 4–20 mA or 0–10 V signals, the power board replacement has zero impact on the control signal interface. The analog input terminals on the G11 control board remain fully functional, and no recalibration of the PLC analog output module is required after the board swap.

For facilities planning a longer-term migration from the FRENIC G11 platform to a current-generation drive — such as the FUJI FRENIC-Ace or FRENIC-MEGA series — the G11-PPCB-4-1.5 replacement board provides a cost-effective bridge solution that extends the operational life of existing drives while the migration project is planned and budgeted. This approach avoids emergency capital expenditure and allows a controlled, scheduled cutover with full parameter mapping and wiring adaptation.

Retrofit Guidance FAQ

Q: Do I need to modify any wiring when replacing the G11-PPCB-4-1.5 board?
No. The replacement board uses the same connector positions and pinout as the original SA528530-06. Disconnect the existing board, seat the replacement, and reconnect all harnesses in the original configuration.

Q: Will my PLC program need to be modified after the board swap?
No. The power PCB has no influence on the drive’s communication interface or parameter set. All PLC logic, speed references, and I/O mappings remain valid after replacement.

Q: Is this board compatible with both single-phase and three-phase G11 variants?
The G11-PPCB-4-1.5 is rated for the 1.5 kW power class of the FRENIC G11 series. Confirm your drive’s input voltage and power rating against the board specification before ordering. Contact us with your drive nameplate data if you require confirmation.

Q: What communication protocols does the FRENIC G11 support, and does the board replacement affect them?
The FRENIC G11 supports RS-485 Modbus RTU as standard, with optional PROFIBUS-DP and DeviceNet via plug-in communication cards. The power PCB replacement does not affect any communication card or protocol configuration.

Q: How do I verify the board is functioning correctly after installation?
After installation, power up the drive with no motor connected and verify that the keypad displays correctly and no fault codes are active. Then perform a no-load run at low frequency before reconnecting the motor load. Check DC bus voltage and output phase balance with a multimeter before full-load commissioning.

Q: Can this board be used as a direct replacement in a FRENIC P11 drive?
The P11 and G11 share significant hardware architecture. Cross-compatibility depends on the specific power class and revision. Contact our technical team with your P11 drive model number for confirmation.

Warranty Assurance

Every FUJI G11-PPCB-4-1.5 SA528530-06 shipped from TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes functional inspection and packaging verification to ensure it arrives in serviceable condition. In the event of a confirmed defect within the warranty period, we provide replacement support with priority processing to minimize your operational impact.

We ship from Xiamen, China, with DHL Express, FedEx International, and sea freight options available depending on order volume and urgency. Most in-stock orders are dispatched within 1–3 business days. For urgent breakdown situations, please contact us directly to arrange expedited shipment.

Our after-sales team is available to assist with installation guidance, compatibility verification, and technical documentation requests. We maintain stock of FRENIC G11 series spare parts including power boards, control boards, and IGBT modules to support your ongoing maintenance requirements.

For volume orders, OEM procurement, or long-term supply agreements, please contact our sales team to discuss pricing, lead times, and consignment stock arrangements.
