FUJI Electric SA530733-02 OPC-G11S-PGA Original Industrial Spare FRENIC-Lift Compatible

Product Overview

FUJI Electric SA530733-02 OPC-G11S-PGA: System Stability Through Precision Encoder Feedback

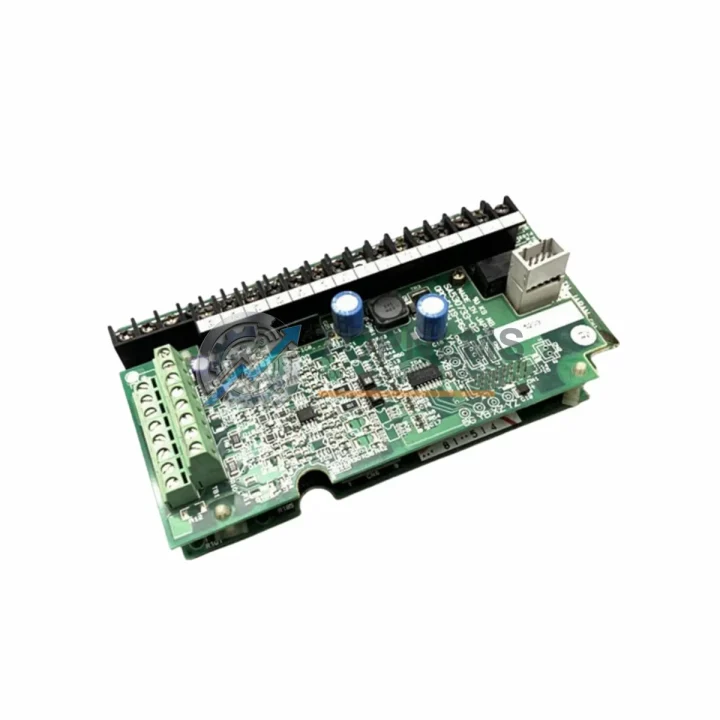

The FUJI Electric SA530733-02 (OPC-G11S-PGA) is an original PG (pulse generator) encoder feedback option card engineered specifically for the FRENIC-Lift series variable frequency drives. In elevator and vertical transport applications, closed-loop speed control is not optional — it is the foundation of safe, smooth, and energy-efficient operation. This card provides the critical interface between the motor encoder and the FRENIC-Lift drive controller, enabling precise torque and speed regulation across all load conditions, from empty car runs to full-rated capacity.

For maintenance engineers managing aging elevator control systems, the SA530733-02 / OPC-G11S-PGA represents one of the highest-priority spare parts to stock. Encoder feedback card failures manifest as erratic speed control, leveling errors, nuisance trips, or complete drive shutdown — all of which translate directly into elevator downtime, passenger safety concerns, and costly emergency callouts. Holding a verified original replacement on the shelf eliminates the most dangerous variable in unplanned maintenance: lead time.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled maintenance visit to a FRENIC-Lift control cabinet should never focus on a single component in isolation. The encoder feedback card operates within an interdependent system, and the reliability of the SA530733-02 / OPC-G11S-PGA is directly influenced by the condition of surrounding components. Experienced maintenance teams treat a PG card replacement as the trigger for a broader cabinet inspection.

Begin with the FRENIC-Lift main control board — verify that the option slot connector pins show no oxidation or mechanical damage before seating the new OPC-G11S-PGA card. Next, inspect the encoder cable and shielded wiring harness running from the motor to the drive cabinet; degraded cable insulation or loose terminal connections are a leading cause of premature PG card failure and should be replaced simultaneously. Check the drive power supply module for stable DC bus voltage, as voltage ripple can corrupt encoder pulse signals and generate false feedback errors even with a new card installed.

While the cabinet is open, audit the I/O option card (such as the OPC-G11S-IO or equivalent) for secure seating and clean terminal connections — these cards share the option bus and can introduce communication faults that are misdiagnosed as encoder issues. Inspect all control terminal blocks and relay output modules for signs of heat stress, loose screws, or contact wear; the safety relay circuits in elevator drives are subject to high cycle counts and should be verified for proper operation during every planned outage.

The braking resistor and braking unit deserve attention during any FRENIC-Lift service interval — regenerative braking during descent loads is continuous in elevator applications, and a degraded braking circuit places additional thermal stress on the drive’s internal components, including option cards. Similarly, check the EMC filter and line reactor at the drive input; poor power quality upstream is a systemic cause of drive and option card degradation that is frequently overlooked.

For facilities running multiple elevator shafts or a mixed fleet of FRENIC-Lift and legacy drives, consider maintaining a consolidated spare parts kit that includes the SA530733-02 / OPC-G11S-PGA alongside the FRENIC-Lift keypad / operator panel (for parameter backup and fault diagnostics), a spare cooling fan assembly for the drive chassis, and a set of fuse modules rated for the drive’s input protection circuit. This approach transforms reactive maintenance into a structured, time-bounded repair process that minimizes elevator downtime to the duration of a single technician visit.

Strategic Replacement Solutions

The SA530733-02 / OPC-G11S-PGA is a direct factory replacement for earlier FUJI FRENIC-Lift PG option cards used in legacy elevator installations. Many buildings commissioned in the 1990s and 2000s continue to operate FRENIC-Lift drives that are mechanically sound but increasingly vulnerable to option card obsolescence. Sourcing original FUJI Electric spare parts — rather than attempting third-party substitutions — preserves the drive’s closed-loop tuning parameters, eliminates compatibility risk, and maintains the integrity of the safety certification chain required by elevator regulatory bodies in most jurisdictions.

Replacing the OPC-G11S-PGA with a verified original part requires no parameter re-tuning in most cases: the drive retains its motor data, PG pulse count settings, and speed profile in non-volatile memory. This means a trained technician can complete the swap, verify encoder signal integrity via the drive’s diagnostic menu, and return the elevator to service within a single maintenance window — typically under two hours for a prepared team with the part on hand.

For facilities planning a longer-term modernization roadmap, stocking the SA530733-02 / OPC-G11S-PGA now provides a cost-effective bridge strategy: extend the operational life of existing FRENIC-Lift installations by three to five years while capital budgets are allocated for full drive replacement or elevator modernization projects. The 12-month warranty on each unit shipped from TOPNLMS provides documented assurance for maintenance records and building management reporting.

Support FAQ

Q1: Is the SA530733-02 compatible with all FRENIC-Lift drive variants?
The OPC-G11S-PGA is designed for the FRENIC-Lift series (FRN-LM2, FRN-LM4, and related models). Compatibility should be verified against your specific drive nameplate and FUJI Electric documentation before installation. Our team can assist with compatibility confirmation prior to order.

Q2: What testing is performed before shipment?
Every SA530733-02 / OPC-G11S-PGA unit is functionally tested and visually inspected before dispatch. Units are shipped with protective packaging to prevent ESD damage and physical stress during transit. A test report is available upon request.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed promptly with replacement or refund options.

Q4: How should I manage spare parts inventory for FRENIC-Lift systems?
For facilities with two or more FRENIC-Lift drives, we recommend maintaining at least one SA530733-02 / OPC-G11S-PGA on-site at all times. Given the lead time risk for obsolete option cards, a minimum stock of one unit per drive type is standard practice in proactive elevator maintenance programs. Bulk procurement pricing is available — contact us for volume quotation.
