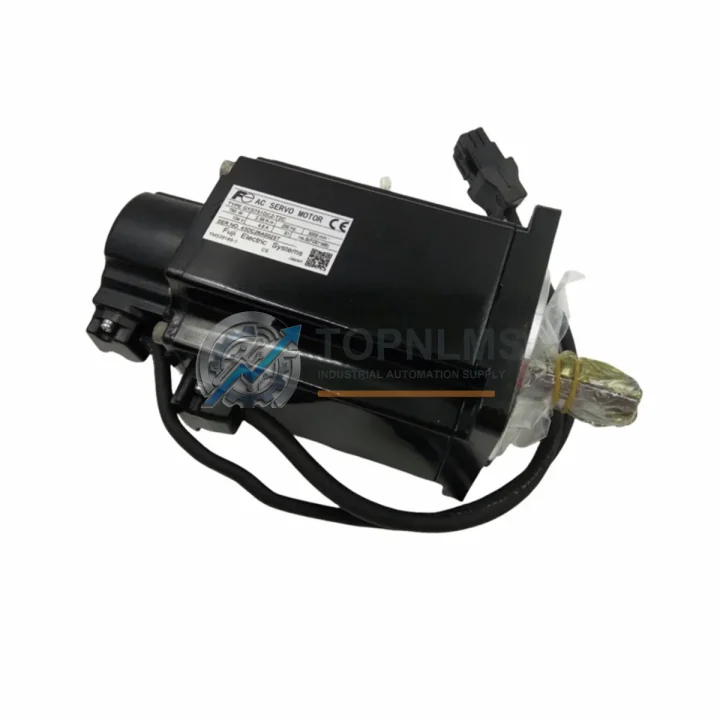

Fuji Electric GYS201DC2-T2E-Z3 Original Industrial Spare ALPHA5 Compatible

Product Overview

Fuji Electric GYS201DC2-T2E-Z3 Original Industrial Spare ALPHA5 Compatible: System Stability and Industrial Spare Maintenance Value

In modern manufacturing environments, servo drive systems are the backbone of precision motion control. The Fuji Electric GYS201DC2-T2E-Z3 is a 200W AC servo motor from the renowned ALPHA5 Smart series, engineered for high-cycle industrial applications demanding consistent torque output, accurate positioning, and long-term reliability. Whether you are managing a planned maintenance shutdown, responding to an unscheduled line stoppage, or building a strategic spare parts inventory, having a verified original GYS201DC2-T2E-Z3 on hand is a critical risk mitigation measure for any facility running Fuji Electric servo systems.

The ALPHA5 Smart platform is widely deployed across packaging machinery, CNC machining centers, semiconductor handling equipment, textile machinery, and automated assembly lines throughout Asia, Europe, and the Americas. As these systems age, the availability of original replacement motors — not aftermarket substitutes — becomes increasingly important for maintaining OEM-level performance, encoder compatibility, and drive tuning integrity. The GYS201DC2-T2E-Z3 features a 17-bit absolute encoder, eliminating the need for homing routines after power restoration and significantly reducing restart time following a fault or planned outage.

Critical Technical Specs Table

Preventive Maintenance Strategy

Servo motor replacement rarely occurs in isolation. When a GYS201DC2-T2E-Z3 is flagged for replacement during a scheduled inspection or emergency repair, experienced maintenance engineers know that the surrounding components in the same servo loop and control cabinet deserve simultaneous evaluation. Ignoring adjacent components after a motor failure is one of the most common causes of repeat downtime within 30–90 days.

Begin with the Fuji Electric RYS201S3-VVS2 ALPHA5 Smart servo amplifier — the matched drive unit for this motor. A motor fault can sometimes be caused by drive-side parameter corruption, IGBT degradation, or encoder cable signal loss rather than the motor itself. Inspecting or replacing the servo amplifier in parallel ensures the root cause is fully addressed. Similarly, the encoder feedback cable (typically a shielded, multi-core cable with the Z3 connector specification) should be checked for insulation breakdown, connector pin corrosion, and bend-radius fatigue, especially in high-cycle or high-vibration environments.

Within the same control cabinet, the 24VDC power supply module feeding the servo amplifier’s control circuit should be load-tested. Voltage sag on the control rail is a known cause of intermittent encoder errors and unexplained servo alarms. If your facility uses a Fuji Electric FRENIC series inverter on adjacent axes, verify that its output filter and reactor are within specification, as harmonic interference can propagate through shared DC bus or ground paths and affect servo performance.

For multi-axis systems, inspect the I/O expansion modules connected to the host PLC — particularly digital output modules driving servo enable and reset signals. A degraded output transistor can cause erratic enable/disable cycling that mimics a motor fault. If your system uses a Fuji Electric SPH or SPB series PLC as the motion controller, verify that the high-speed pulse output module is functioning within its rated frequency range and that the motion program parameters match the replacement motor’s inertia and torque constants.

Terminal blocks and DIN rail-mounted relay modules in the servo power circuit should be inspected for contact oxidation and loose crimps — these are frequent culprits in intermittent torque loss complaints. Fuse holders and miniature circuit breakers (MCBs) protecting the servo amplifier’s AC input should be tested for trip accuracy, as nuisance tripping under load is a sign of aging thermal elements. Finally, if the machine uses a Fuji Electric GOT-compatible HMI or operator panel, confirm that servo status monitoring screens are displaying current alarm codes correctly, as outdated HMI firmware can mask real-time fault data during troubleshooting.

Stocking the GYS201DC2-T2E-Z3 alongside these related components as a coordinated spare kit reduces mean time to repair (MTTR) from hours to minutes and eliminates the risk of a second unplanned outage caused by a component that was borderline at the time of the first repair.

Strategic Replacement Solutions

The GYS201DC2-T2E-Z3 is a direct original replacement for aging units within the ALPHA5 Smart servo family. Unlike third-party remanufactured motors, an original Fuji Electric unit preserves the factory encoder calibration data structure, ensuring seamless plug-and-play compatibility with existing ALPHA5 Smart drive parameters. There is no need to re-tune gain settings or reconfigure encoder resolution — the drive recognizes the motor automatically upon first power-up.

For facilities managing legacy systems where the original motor has been discontinued or is approaching end-of-life, the GYS201DC2-T2E-Z3 represents a proven, in-production alternative that extends system life without requiring mechanical modifications. The T2E shaft configuration and Z3 connector standard are consistent across the ALPHA5 Smart motor range, meaning a single spare can serve multiple machine positions with identical motor frame sizes.

From a procurement standpoint, sourcing original spares through a verified distributor — rather than spot-market channels — ensures traceability, factory test records, and warranty coverage. Each unit shipped from TOPNLMS is inspected, function-tested, and accompanied by documentation supporting your maintenance records and ISO compliance requirements. Lead times for original Fuji Electric servo motors from standard stock are typically 1–3 business days for in-stock units, with express shipping available for critical line-down situations.

Support FAQ

Q1: Is the GYS201DC2-T2E-Z3 compatible with all ALPHA5 Smart servo amplifiers?
The GYS201DC2-T2E-Z3 is designed for use with Fuji Electric ALPHA5 Smart series servo amplifiers in the 200W capacity class (e.g., RYS201S3-VVS2). Compatibility is determined by power rating, encoder interface, and connector type. Always verify the amplifier model number and existing parameter settings before installation. Our technical team can assist with compatibility confirmation prior to order.

Q2: What does the 12-month warranty cover, and how is it validated?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing. Warranty claims require the original invoice and a fault description. Units showing signs of electrical overstress, mechanical damage, or unauthorized disassembly are excluded from warranty coverage.

Q3: Can this motor be installed as a direct drop-in replacement without re-tuning the servo drive?
Yes. As an original Fuji Electric GYS201DC2-T2E-Z3, this motor uses the same 17-bit absolute encoder protocol and motor constants as the factory-installed unit. The ALPHA5 Smart drive will recognize the motor automatically. No gain re-tuning is required in standard applications. If the machine has been previously re-tuned with non-standard parameters, a brief auto-tuning cycle is recommended after installation.

Q4: What is the recommended spare inventory strategy for servo motors in continuous production environments?
For facilities running ALPHA5 Smart servo systems in 24/7 production, a minimum of one spare motor per motor frame size per production line is recommended. For critical single-point-of-failure axes (e.g., main feed, index, or press axes), a 1:1 spare ratio is advisable. Pairing the motor spare with a matched servo amplifier spare and encoder cable set provides a complete axis replacement kit, reducing MTTR to under 30 minutes for trained maintenance personnel.
