FATEK FBS-24XYR Original Industrial Spare FBS Compatible

Product Overview

FATEK FBS-24XYR Original Industrial Spare FBS Compatible: Ensuring System Stability in Demanding Automation Environments

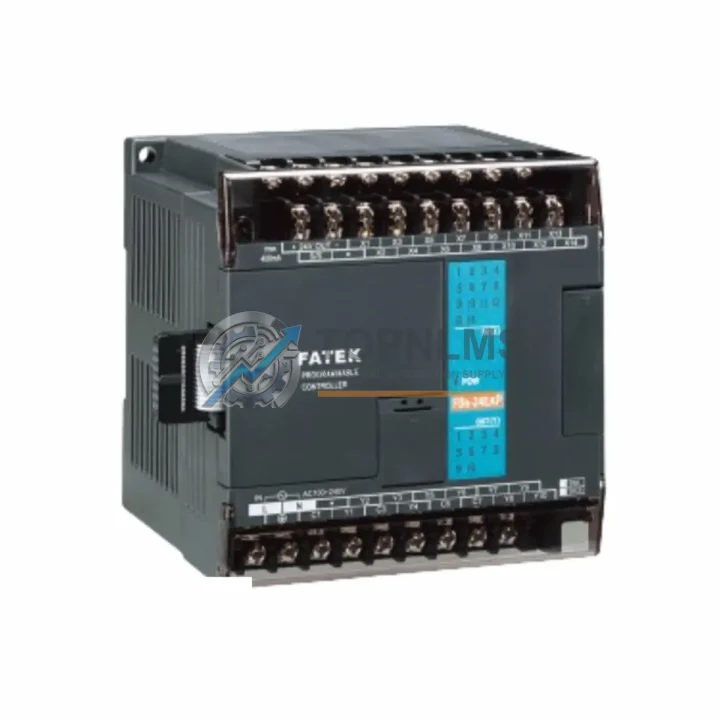

The FATEK FBS-24XYR is a 24-point relay output expansion module engineered for seamless integration with FATEK FBS Series programmable logic controllers. As an original industrial spare part, it is the definitive replacement solution for maintenance engineers managing aging FBS-based control systems across manufacturing, process automation, packaging, and material handling applications. Sourced directly from authorized supply channels, every unit shipped from TOPNLMS undergoes pre-shipment functional verification and is backed by a 12-month warranty.

In industrial environments where unplanned downtime translates directly into production loss and escalating repair costs, having a verified, ready-to-deploy FBS-24XYR in your spare parts inventory is a critical risk mitigation strategy. Relay output modules are among the highest-wear components in any PLC expansion rack — they switch inductive loads, interface with motor starters, solenoid valves, and pilot lights, and accumulate mechanical contact cycles over years of continuous operation. When an FBS-24XYR begins exhibiting intermittent output faults, contact welding, or coil drive failures, the ability to execute a same-shift replacement without waiting on procurement is the difference between a controlled maintenance event and an extended production stoppage.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for any FBS Series control system extends well beyond the relay output module itself. During scheduled downtime or annual control cabinet inspections, maintenance teams should treat the FBS-24XYR replacement as the anchor of a broader system health audit. Begin by inspecting the FBS Series CPU module (such as the FBS-32MA or FBS-60MA) for firmware currency, battery backup status, and communication port integrity — a degraded CPU can mask or misattribute faults that originate in expansion modules.

Simultaneously, audit the FBS-8EYR or FBS-16EYR relay output expansion modules installed alongside the FBS-24XYR in the same rack. Relay contacts across all output modules age at similar rates when driving comparable load types; replacing only the failed module while leaving adjacent modules with equivalent service hours is a common cause of repeat failures within the same maintenance cycle. Inspect each module’s terminal block connections for oxidation, loose screws, and thermal discoloration — signs of sustained overload or poor contact that accelerate relay wear.

The FBS Series power supply module (typically 24VDC regulated, such as units compatible with FBS expansion racks) deserves close attention during any relay module replacement. Relay coil switching generates transient voltage spikes that stress power supply filtering capacitors over time. A power supply operating outside its rated output tolerance will cause erratic relay actuation and premature contact failure on a newly installed FBS-24XYR. Verify output voltage stability under load before commissioning the replacement module.

For systems using FBS Series analog input/output modules (such as the FBS-4AD or FBS-2DA) in the same expansion rack, confirm that the analog signal ground references remain isolated from the relay output common terminals. Cross-contamination of analog and relay commons is a frequent source of signal drift and measurement error that becomes apparent only after relay module replacement disturbs the cabinet wiring. This is also an appropriate time to inspect FBS communication modules — RS-485, Ethernet, or PROFIBUS adapters — for secure seating on the expansion bus and clean connector contacts.

Beyond the PLC rack itself, the broader electrical circuit served by the FBS-24XYR outputs warrants inspection. Terminal blocks and DIN rail-mounted relay modules downstream of the PLC outputs — particularly those switching motor starters, solenoid valves, or heating elements — should be checked for contact wear and arc erosion. Fuse modules and circuit protection devices protecting each output circuit should be tested for continuity and replaced on a time-based schedule rather than waiting for failure. Where the FBS-24XYR drives signal isolators or interposing relays, verify that isolation barriers remain intact and that interposing relay coil voltages are within specification.

Finally, if the control system includes an HMI panel (such as a FATEK FV or compatible third-party touch panel) communicating with the FBS CPU, use the maintenance window to verify communication stability, update screen firmware if applicable, and confirm that all alarm and status displays correctly reflect the I/O state of the newly installed FBS-24XYR. A complete, documented inspection covering the CPU, power supply, all expansion modules, downstream protection devices, and HMI communication transforms a reactive relay replacement into a proactive system reliability event.

Strategic Replacement Solutions

The FBS-24XYR is a direct, plug-and-play replacement for any failed or end-of-life relay output expansion module in the FATEK FBS Series expansion architecture. Because FATEK has maintained backward compatibility across FBS CPU generations, an FBS-24XYR sourced today will integrate with FBS CPUs that have been in service for over a decade — no firmware changes, no wiring modifications, no re-programming required. This compatibility continuity is the core value proposition for maintenance engineers managing legacy FBS installations where the cost and risk of a full PLC platform migration cannot be justified.

For facilities operating multiple FBS-based control panels, establishing a standardized spare parts kit that includes at least one FBS-24XYR per panel type significantly reduces mean time to repair (MTTR). When a relay output fault occurs on a production line, the ability to pull a verified replacement from a local spare parts cabinet — rather than initiating an emergency procurement cycle with 3–10 day lead times — directly protects production throughput and OEE targets.

In retrofit and system life-extension projects, the FBS-24XYR also serves as a cost-effective alternative to full panel redesigns. Rather than replacing an entire FBS control system to gain additional output capacity or to restore failed I/O, engineers can expand or restore the existing architecture using original FATEK expansion modules, preserving the existing PLC program, HMI screens, and field wiring investment. This approach typically delivers a 60–80% cost reduction compared to full system replacement while restoring full operational capability and extending system service life by 5–10 years.

All FBS-24XYR units supplied by TOPNLMS are tested prior to shipment, clearly labeled with model and serial information, and shipped with appropriate ESD protective packaging. Expedited shipping options are available for urgent maintenance requirements.

Support FAQ

Q1: Is the FBS-24XYR compatible with all FATEK FBS Series CPU models?
Yes. The FBS-24XYR is designed for the FATEK FBS Series expansion bus and is compatible with all standard FBS CPU modules including the FBS-10MA, FBS-20MA, FBS-32MA, FBS-60MA, and FBS-80MA. No configuration changes are required — the CPU automatically recognizes the expansion module upon power-up. Always verify the total expansion module count does not exceed the CPU’s maximum supported expansion (typically 7 modules).

Q2: What pre-shipment testing is performed on each FBS-24XYR unit?
Every FBS-24XYR unit shipped by TOPNLMS undergoes functional verification prior to dispatch. This includes relay coil actuation testing across all output points, contact continuity verification, and visual inspection for physical damage, connector integrity, and correct labeling. Test results are retained internally. Units that do not pass verification are not shipped.

Q3: What does the 12-month warranty cover, and how is a warranty claim initiated?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, physical impact, or operation outside specified environmental limits. To initiate a warranty claim, contact TOPNLMS at [email protected] with your order reference, a description of the fault, and photographic documentation. Replacement or repair will be arranged promptly.

Q4: How should I validate compatibility before installing the FBS-24XYR in my existing system?
Confirm that your FBS CPU model supports right-side expansion modules and that the total number of expansion modules in the rack does not exceed the CPU limit. Check the existing wiring diagram to verify that the terminal assignments on the FBS-24XYR match your field wiring. Power down the control panel completely before removing the old module and installing the replacement. After installation, perform a controlled power-up and verify all output points using the PLC programming software’s I/O monitor function before returning the system to production.
