FATEK FBS-14MA Replacement Upgrade Solution for FBS Series

Product Overview

FATEK FBS-14MA Replacement & Upgrade Solution for FBS Series: Smooth Migration from Legacy PLC Systems

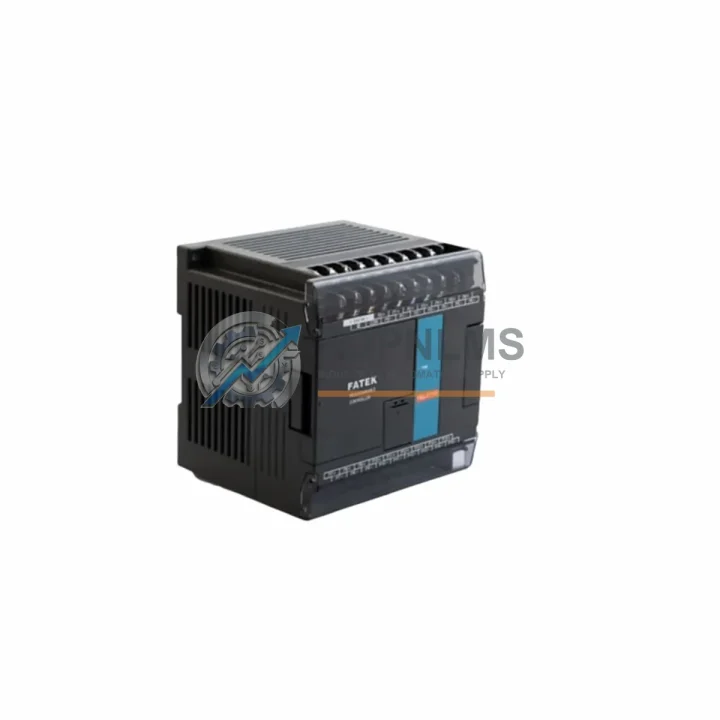

The FATEK FBS-14MA is a compact, high-reliability programmable logic controller within the FBS Series platform, offering 14 I/O points with relay output and AC power supply. For facilities operating aging FATEK FB0 Series, FB1 Series, or early-generation FBS units that have reached end-of-life or are no longer supported by the original manufacturer’s spare-parts supply chain, the FBS-14MA represents a direct, field-proven upgrade path that minimizes engineering rework, reduces downtime risk, and preserves existing wiring infrastructure.

Industrial sites across manufacturing, building automation, water treatment, and material handling have standardized on the FATEK FBS platform for its compact DIN-rail footprint, robust relay output capability, and compatibility with WinProladder programming software. When a legacy controller fails or becomes unavailable, the FBS-14MA allows maintenance engineers to restore machine operation without redesigning the control cabinet or rewriting ladder logic from scratch.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy FATEK system to the FBS-14MA rarely involves the main CPU unit alone. In practice, field engineers typically address the full control architecture during the same maintenance window to avoid repeat shutdowns. The FBS-14MA’s right-side expansion bus accepts up to seven FBS Series expansion modules, making it straightforward to extend the I/O count without replacing the entire control cabinet. Common additions during an FBS-14MA retrofit include the FBS-8YR relay output expansion module and the FBS-8X digital input expansion module, both of which connect directly to the base unit’s expansion port using the standard FBS ribbon connector — no additional power wiring is required for the expansion bus itself.

For applications that previously relied on RS-232 point-to-point communication between the legacy PLC and an HMI or SCADA system, the FBS-14MA’s built-in RS-232/RS-485 port 0 supports both FATEK FACON protocol and Modbus RTU, allowing existing communication cables and HMI configurations to remain in service. Sites using a FATEK FBs-CB5 communication board or an FBs-CB25 RS-485 communication board can install these optional boards into the FBS-14MA’s communication slot to add a second serial port, enabling simultaneous connection to both a programming terminal and a supervisory system without a protocol converter.

Power supply integrity is a critical consideration in any retrofit. The FBS-14MA’s onboard AC power supply accepts 100–240 V AC input, which is compatible with the same terminal block wiring used on FB0 and FB1 predecessors. However, for cabinets that also power 24 V DC sensors, transmitters, or solenoid valves, a dedicated FATEK FBs-PS01 24 VDC power supply module or an equivalent DIN-rail switching power supply should be verified for adequate current capacity before commissioning the upgraded system.

Programming continuity is one of the most significant cost drivers in a PLC migration. Because the FBS-14MA uses the same WinProladder instruction set as the FB0 and FB1 families, existing ladder logic programs can typically be opened, reviewed, and downloaded to the new unit with minimal modification. Engineers should verify memory register addresses and special relay assignments, particularly if the legacy program used undocumented or model-specific special functions. A FATEK FBs-232P0 programming cable (USB-to-RS-232 adapter with FATEK driver) is required to connect a laptop to the FBS-14MA’s port 0 for program upload and online monitoring during commissioning.

For sites upgrading from a distributed I/O architecture where the legacy FATEK controller communicated with remote I/O racks over RS-485 Modbus RTU, the FBS-14MA can assume the Modbus master role using its built-in port 0 or an optional communication board. Remote I/O nodes such as the FBs-4AD analog input module or FBs-2DA analog output module can be retained in the field and polled by the new FBS-14MA master, preserving the existing field wiring and sensor calibration data. Signal isolators or surge protection devices installed on the RS-485 bus should be inspected and replaced if they show signs of aging, as these components are often overlooked during a controller swap.

Retrofit Guidance FAQ

Q: Can I reuse the existing terminal block wiring from my FB0-14MA or FB1-14MA?
A: Yes. The FBS-14MA uses the same screw-terminal I/O layout as the FB0 and FB1 14-point relay AC models. Input terminals (X0–X7) and output terminals (Y0–Y5) are in the same physical positions. In most cases, the existing field wiring can be transferred directly to the new unit without re-labeling or re-routing.

Q: Do I need to rewrite my ladder logic program?
A: Generally no. WinProladder programs written for FB0 or FB1 units are compatible with the FBS-14MA. Open the existing project file in WinProladder v3.x, select the FBS-14MA as the target model, compile, and download. Review any model-specific special relays (M1900–M1999 range) before going live.

Q: What communication protocols does the FBS-14MA support?
A: The built-in port 0 supports FATEK FACON protocol (for WinProladder and FATEK HMIs) and Modbus RTU (master and slave modes) over RS-232 or RS-485. An optional FBs-CB5 or FBs-CB25 communication board adds a second independent serial port for simultaneous multi-device communication.

Q: Will the FBS-14MA fit in the same cabinet cutout as my old controller?
A: The FBS-14MA mounts on a standard 35 mm DIN rail and has a compact body (approximately 130 mm wide). It is dimensionally similar to the FB0-14MA and FB1-14MA. Verify the DIN rail length and adjacent component clearance before installation, particularly if the cabinet is densely populated.

Q: Can I expand the I/O count after installing the FBS-14MA?
A: Yes. The FBS-14MA supports up to 7 FBS Series expansion modules connected via the right-side expansion bus. This allows the system to grow from 14 I/O points to a maximum of approximately 128 I/O points without replacing the CPU unit.

Q: How do I handle the transition if my legacy system used analog I/O?
A: The FBS-14MA base unit handles digital I/O only. Analog signals require FBS Series analog expansion modules such as the FBs-4AD (4-channel analog input) or FBs-2DA (2-channel analog output). These modules connect to the expansion bus and are programmed using standard WinProladder analog instructions.

Warranty Assurance

Every FATEK FBS-14MA unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on testing, I/O point continuity checks, and communication port validation. Units that fail incoming inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or repair service within the warranty period. Customers are asked to document the fault symptom and provide the order reference number when initiating a claim. Response time for warranty inquiries is typically within 1 business day.

Stock is maintained in Xiamen, China, with standard dispatch within 1–3 business days of order confirmation. Express shipping options (DHL, FedEx, UPS) are available for urgent replacement requirements. Customers requiring expedited delivery should contact the sales team directly to confirm lead time and carrier availability for their destination.

TOPNLMS specializes in industrial automation components for B2B buyers, system integrators, and maintenance teams. Our procurement team can assist with cross-referencing legacy part numbers, confirming compatibility with existing system architectures, and sourcing complementary components for a complete retrofit bill of materials.
