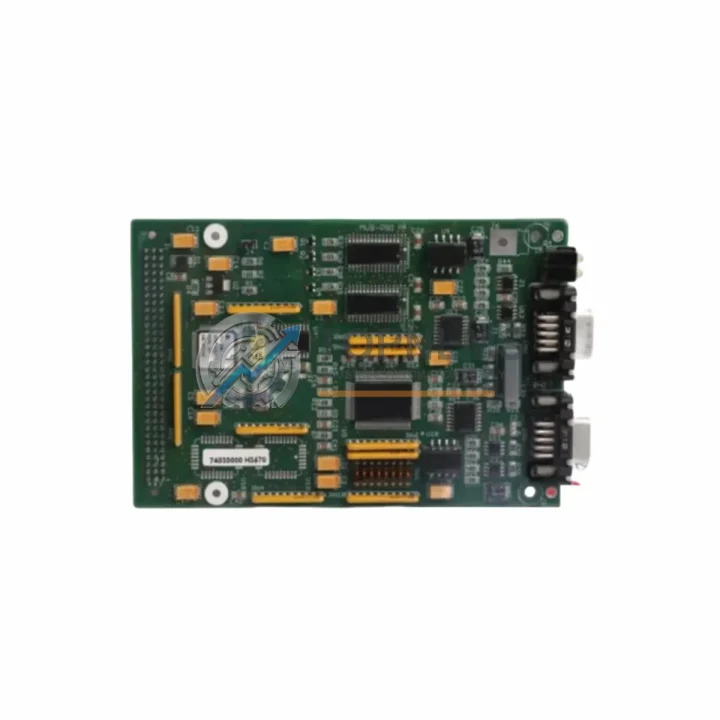

FAIVELEY 74030000 H3470 Replacement for H3470 Series: Seamless Transition & Legacy System Compatibility

When your FAIVELEY H3470 Series control system reaches end-of-life or a critical board failure occurs, unplanned downtime is not an option. The FAIVELEY 74030000 H3470 control board offered by TOPNLMS is a direct replacement and upgrade solution engineered for smooth, low-risk migration from aging H3470 Series installations. Whether you are maintaining a rail braking control cabinet, a traction power management rack, or an integrated safety-critical automation platform, this board restores full system functionality with minimal intervention to existing wiring, programming, and physical enclosure layouts.

FAIVELEY’s H3470 Series has been widely deployed across railway braking systems, door control units, and auxiliary power control architectures. As original boards age, component degradation, firmware incompatibility, and discontinued spare parts create escalating maintenance risk. The 74030000 H3470 replacement board addresses these challenges directly, offering pin-compatible connector layouts, equivalent signal processing logic, and support for the same communication interfaces used in legacy H3470 installations. Engineers familiar with the original H3470 platform will find the replacement board requires no re-engineering of the control cabinet backplane or terminal wiring.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful H3470 Series migration rarely involves replacing a single board in isolation. In practice, field engineers undertaking a retrofit or emergency replacement will also evaluate the condition of adjacent components sharing the same control cabinet or rack. The H3470 control board interfaces directly with the H3470 Series power supply module, which provides the regulated 24 VDC bus that feeds the board’s logic circuits. If the power supply module shows signs of capacitor aging or voltage ripple, replacing it alongside the 74030000 H3470 board eliminates a common root cause of recurring board failures.

The H3470 rack backplane and its associated terminal blocks are equally important. Corroded or loose terminal connections on the backplane can introduce intermittent faults that mimic board-level failures. Inspecting and, where necessary, replacing the H3470 backplane connector assembly and associated wiring harness ensures the replacement board operates within its specified electrical environment from day one.

For systems where the H3470 control board communicates upstream with a supervisory PLC or safety controller via CAN bus or a proprietary FAIVELEY serial link, verifying the integrity of the communication cable and the CAN bus termination resistors is a standard commissioning step. In multi-node architectures, the H3470 Series communication module or gateway card may also require firmware alignment to recognize the replacement board’s node address correctly.

Where the H3470 installation includes discrete I/O expansion modules — for example, additional digital input cards monitoring brake application sensors or door position switches — these modules connect to the 74030000 H3470 board through the rack’s I/O bus. Confirming that each I/O module’s address configuration matches the replacement board’s expected mapping prevents signal assignment errors during initial power-up. Signal isolators installed between field sensors and the H3470 I/O bus should also be tested for correct output range before the replacement board is commissioned.

In installations where an HMI panel or operator display is connected to the H3470 system, the display’s communication parameters — baud rate, parity, and node address — should be verified against the replacement board’s default configuration. FAIVELEY H3470 Series HMI interfaces typically use a fixed serial protocol, and the replacement board maintains compatibility with this standard, eliminating the need for HMI reconfiguration in most cases.

Finally, for sites maintaining a spare parts inventory, stocking a secondary 74030000 H3470 replacement board alongside a spare H3470 power supply module and a set of terminal block connectors represents a practical minimum buffer that supports rapid board swap without waiting for international procurement lead times.

Retrofit Guidance FAQ

Q: Does the 74030000 H3470 replacement board require any wiring changes in the existing control cabinet?
A: No. The replacement board uses the same connector pinout and physical footprint as the original H3470 board. Existing wiring harnesses, terminal blocks, and cable routing remain unchanged. Simply remove the failed board, seat the replacement in the same slot, and restore power.

Q: Is the replacement board compatible with the original H3470 Series communication protocol?
A: Yes. The 74030000 H3470 replacement board supports the same CAN bus and proprietary FAIVELEY serial communication protocol used in the original H3470 platform. No gateway, protocol converter, or firmware update to the supervisory controller is required in standard retrofit scenarios.

Q: Will the existing PLC program or control logic need to be modified after installing the replacement board?
A: In a direct replacement scenario, no program changes are required. The replacement board presents the same I/O mapping and communication node behavior as the original, so the upstream controller’s program continues to execute without modification.

Q: How does the replacement board fit within the existing H3470 control cabinet physical space?
A: The 74030000 H3470 replacement board matches the original PCB form factor and mounts in the same rack slot. No mechanical modifications, bracket changes, or DIN rail adjustments are needed. The board’s weight (approximately 740 g) is consistent with the original, so rack load calculations remain valid.

Q: What should be checked during commissioning after installing the replacement board?
A: After installation, verify the 24 VDC supply voltage at the board’s power input connector, confirm CAN bus or serial link communication is established with the supervisory controller, check that all digital I/O channels respond correctly to field signals, and review any fault logs on the connected HMI or operator panel. A functional test of the controlled process — brake application, door cycle, or auxiliary power switching, depending on the application — should be completed before returning the system to service.

Q: Can the replacement board be used in systems where the original H3470 board has been discontinued by FAIVELEY?
A: Yes. The 74030000 H3470 replacement board is specifically sourced and tested to address the obsolescence of the original FAIVELEY part. It is available from stock at TOPNLMS, eliminating the extended lead times associated with sourcing discontinued OEM components through traditional channels.

Warranty Assurance

Every FAIVELEY 74030000 H3470 replacement control board supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each board undergoes a pre-shipment functional inspection to verify power-up behavior, communication interface integrity, and I/O channel response. Boards that do not meet inspection criteria are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing to minimize the impact on your maintenance schedule. Our after-sales response team is reachable directly via email and phone to coordinate return logistics, technical verification, and replacement dispatch. Warranty coverage applies to manufacturing defects and component failures under normal operating conditions consistent with the H3470 Series specification.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Expedited shipping options are available for urgent replacement requirements, with dispatch from our Xiamen warehouse typically within 1–2 business days of order confirmation.

We understand that control system downtime carries significant operational and financial consequences. Our inventory, inspection, and warranty processes are structured to give maintenance engineers and procurement managers the confidence to source critical replacement boards without compromising system reliability or safety compliance.
