FAIVELEY 74030000-E2333 Ruggedized Brake Control Module

Product Overview

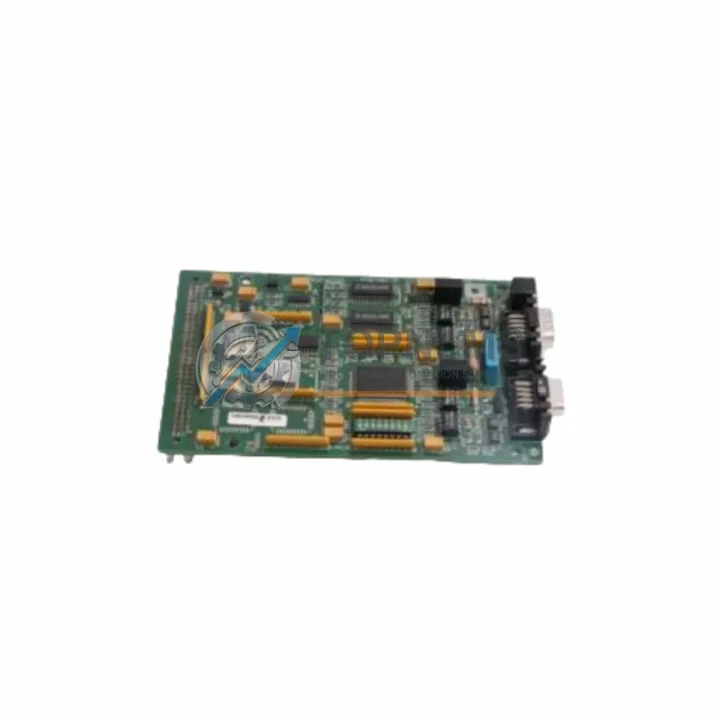

FAIVELEY 74030000-E2333 Ruggedized Brake Control Module for Harsh Environments

The FAIVELEY 74030000-E2333 is a precision-engineered electro-pneumatic brake control PCB module designed for continuous, mission-critical operation in the most demanding railway and heavy industrial environments. Built to FAIVELEY’s E2333 series architecture, this module delivers exceptional signal integrity and mechanical resilience across extreme temperature ranges, high-vibration rail car applications, and environments subject to electromagnetic interference, moisture ingress, and airborne particulates.

In modern rail systems, the brake control subsystem is the last line of defense between safe deceleration and catastrophic failure. The 74030000-E2333 is engineered with this responsibility in mind — its ruggedized PCB substrate, conformal coating, and hardened connector interfaces ensure that brake command signals are transmitted and executed with zero tolerance for error, even after years of continuous service on high-cycle metro, intercity, or freight rail platforms.

Rugged Specifications Table

Comprehensive Protection Solutions

The FAIVELEY 74030000-E2333 does not operate in isolation — it is the command heart of a tightly integrated brake control architecture. In a typical E2333-series brake panel, this PCB interfaces directly with the FAIVELEY electro-pneumatic valve driver board, which translates digital brake commands into precise pneumatic pressure outputs. Alongside it, the FAIVELEY brake electronics power supply module provides the regulated 24 VDC rail that keeps the control logic stable even during traction power fluctuations or pantograph dropout events.

For wheel slide protection, the 74030000-E2333 communicates with the FAIVELEY WSP (Wheel Slide Protection) control unit, exchanging real-time axle speed data to modulate brake cylinder pressure and prevent wheel lock on low-adhesion rail surfaces. This interaction is critical in wet, icy, or leaf-contaminated track conditions common in northern European and high-altitude rail corridors.

Within the control cabinet, the module sits alongside FAIVELEY brake relay output cards and terminal interface modules that distribute brake commands to individual bogie actuators. The system’s communication backbone — typically a CANopen or MVB (Multifunction Vehicle Bus) protocol link — connects the 74030000-E2333 to the train’s central TCMS (Train Control and Management System), ensuring that brake status, fault codes, and diagnostic data are continuously reported to the driver’s cab and maintenance systems.

For installations requiring safety-rated redundancy, the E2333 architecture supports pairing with a FAIVELEY safety monitoring module that performs continuous self-test routines and triggers a fail-safe brake application if the primary control path is interrupted. This design philosophy aligns with SIL 2 (Safety Integrity Level 2) requirements under EN 50128 and EN 50129, making the 74030000-E2333 suitable for use in safety-critical traction and braking circuits.

Procurement engineers specifying spare parts for FAIVELEY-equipped rolling stock will also find value in stocking the companion FAIVELEY 74030000-E2334 variant and associated E2333-series diagnostic interface cards, which share the same connector pinout and firmware compatibility, simplifying depot-level maintenance and reducing mean time to repair (MTTR).

Application in Critical Infrastructure

The FAIVELEY 74030000-E2333 brake control module finds its most demanding applications in the world’s most safety-critical rail infrastructure. In urban metro systems — where trains operate at 90-second headways and brake performance directly determines passenger safety — this module must deliver consistent, repeatable brake force modulation across thousands of daily cycles. Metro operators in high-density corridors across Asia, Europe, and the Middle East rely on FAIVELEY E2333-series brake electronics to maintain service reliability and regulatory compliance.

In mainline intercity and high-speed rail applications, the 74030000-E2333 must contend with the additional challenges of high-speed aerodynamic forces, extended brake distances, and the thermal stress of repeated emergency brake applications from speeds exceeding 200 km/h. The module’s thermal management design and robust PCB construction ensure it remains within specification even after sustained high-duty-cycle operation.

Freight and heavy-haul rail operators face a different set of challenges: long train consists, variable load conditions, and operation in remote environments where maintenance access is limited. In these applications, the 74030000-E2333’s reliability and long service life translate directly into reduced unplanned downtime and lower lifecycle maintenance costs. Mining railways in Australia, iron ore corridors in Brazil, and coal haulage networks in South Africa have all deployed FAIVELEY brake control technology in environments where ambient temperatures can exceed 50°C and dust ingress is a constant threat.

In electrified rail networks, the module must also withstand the electromagnetic environment generated by high-power traction inverters, regenerative braking systems, and trackside signaling equipment. The 74030000-E2333’s EMC-hardened design ensures that brake control signals remain clean and reliable even in the presence of strong conducted and radiated interference — a non-negotiable requirement for any safety-critical railway control component.

Security & Quality FAQ

Q1: What warranty does the FAIVELEY 74030000-E2333 carry?
Every 74030000-E2333 module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This covers functional defects under normal operating conditions. Our technical team provides post-sale support to assist with installation verification and fault diagnosis throughout the warranty period.

Q2: How is each unit tested before shipment?
All FAIVELEY 74030000-E2333 modules undergo a multi-stage inspection process prior to dispatch. This includes visual inspection for PCB damage, connector integrity checks, and functional power-on testing where applicable. Units are shipped in anti-static packaging with individual test records available upon request for quality-critical procurement processes.

Q3: Is the 74030000-E2333 compatible with my existing FAIVELEY brake system?
The 74030000-E2333 is designed for use within FAIVELEY E2333-series electro-pneumatic brake control systems. It is compatible with rolling stock platforms that originally specified this part number. For cross-reference verification or compatibility confirmation with adjacent E2333-series components, please contact our technical team with your vehicle type and system configuration details.

Q4: Can TOPNLMS support long-term and repeat supply of this module?
Yes. TOPNLMS maintains dedicated inventory of FAIVELEY spare parts including the 74030000-E2333 and related E2333-series components to support depot maintenance programs, scheduled overhauls, and emergency breakdown requirements. We work with rail operators and maintenance contractors on framework supply agreements to ensure consistent availability and pricing stability over multi-year maintenance cycles.
