FAIVELEY 33.60.6647 Replacement Solution for Transport Brake Series

Product Overview

FAIVELEY 33.60.6647 Replacement Solution for Transport Brake Series: Smooth Transition from Legacy Brake Control Systems

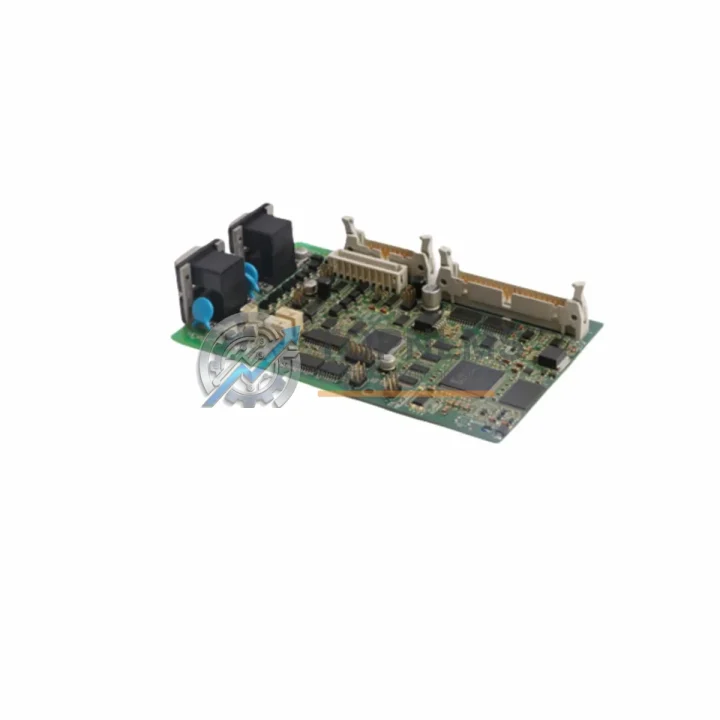

When a FAIVELEY 33.60.6647 Electronic Control Board fails or reaches end-of-service life in a rail vehicle or industrial braking system, every hour of downtime translates directly into operational cost and safety risk. This replacement solution is engineered to deliver a seamless, drop-in upgrade path for maintenance teams managing aging Transport Brake Series platforms — preserving existing wiring harnesses, connector pinouts, and control logic while restoring full braking system functionality.

The FAIVELEY 33.60.6647 is a core brake control board used within FAIVELEY’s Transport Brake Series, responsible for processing brake command signals, managing electro-pneumatic valve actuation, and interfacing with the vehicle’s central control unit via established communication protocols. When this board degrades — whether due to component aging, moisture ingress, vibration fatigue, or power surge — the entire braking subsystem may enter a fault state, triggering emergency brake engagement or disabling controlled deceleration.

Our replacement units are sourced from verified supply channels, individually tested against FAIVELEY’s original functional specifications, and shipped with full traceability documentation. Whether you are managing a scheduled overhaul, an unplanned field failure, or building a strategic spare-parts inventory for a fleet of rail vehicles, this replacement board is ready to support your maintenance workflow.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful brake control board replacement rarely involves a single component in isolation. During a FAIVELEY 33.60.6647 swap, maintenance engineers frequently identify adjacent components that have reached similar service-life thresholds. Addressing these proactively during the same maintenance window significantly reduces the risk of a repeat callout and minimizes total system downtime.

The brake control board interfaces directly with the electro-pneumatic valve driver modules within the same brake control unit enclosure. If the 33.60.6647 has failed due to a power surge, the associated FAIVELEY valve driver board — often sharing the same 24 VDC supply rail — should be inspected and tested before the replacement board is commissioned. Similarly, the brake command relay module, which receives deceleration demand signals from the vehicle’s Train Control and Management System (TCMS), is a common co-failure component and should be verified functional before closing the cabinet.

On the communication side, the 33.60.6647 typically exchanges brake status and diagnostic data over a Multifunction Vehicle Bus (MVB) or a proprietary FAIVELEY brake data bus. The MVB interface coupler card — a separate plug-in module within the same rack — should be confirmed operational, as a degraded coupler can cause the replacement board to report communication faults immediately after installation, leading to unnecessary re-diagnosis time on site.

For teams undertaking a broader brake system modernization, the FAIVELEY brake control unit power supply module is a logical parallel replacement. These 24 VDC regulated power supply units are subject to capacitor aging and are a frequent root cause of intermittent board-level faults across the entire brake control rack. Replacing the power supply module alongside the 33.60.6647 eliminates a common source of post-repair instability.

Where the brake control cabinet also houses a FAIVELEY wheel slide protection (WSP) controller or anti-skid module, these units share the same physical rack and often the same diagnostic communication backbone. Confirming WSP module firmware compatibility with the replacement brake control board is a recommended commissioning step, particularly on older vehicle platforms where mixed firmware versions can cause inter-module handshake failures.

Terminal blocks and wiring harness connectors within the brake control cabinet are another area of attention. After years of thermal cycling and vibration, the crimp connections on the multi-pin harness that plugs into the 33.60.6647 may have developed intermittent contact resistance. Replacing or re-terminating the connector housing at the time of board replacement is a low-cost step that prevents nuisance faults from being attributed to the new board during the post-installation test run.

Finally, for sites that maintain a digital maintenance record, updating the brake system’s diagnostic interface — whether a FAIVELEY handheld programmer, a laptop-based brake diagnostic tool, or a TCMS-integrated fault logger — to reflect the new board’s installation date and serial number is essential for warranty tracking and future fault tracing.

Retrofit Guidance FAQ

Q: Can the FAIVELEY 33.60.6647 replacement board be installed without reprogramming the brake control unit?
A: In the majority of field applications, yes. The 33.60.6647 is a hardware-level control board that operates on fixed logic embedded in its onboard firmware. Provided the replacement unit carries the same firmware revision as the original, no reprogramming of the brake control unit is required. If the vehicle’s brake system has been updated to a newer software baseline since the original board was installed, a firmware alignment step may be needed — this can be confirmed by comparing the firmware version label on the original board with the replacement unit’s documentation before installation.

Q: Is the wiring harness connector on the replacement board pin-compatible with the original installation?
A: Yes. The replacement unit uses the same multi-pin connector footprint as the original FAIVELEY 33.60.6647, allowing the existing vehicle wiring harness to be reconnected without modification. No rewiring, re-pinning, or adapter cables are required under standard replacement conditions.

Q: What communication protocol does the 33.60.6647 use, and is the replacement unit compatible?
A: The 33.60.6647 communicates via the FAIVELEY proprietary brake data bus and, depending on vehicle configuration, may also interface with the MVB (Multifunction Vehicle Bus) backbone. The replacement unit supports the same protocol stack and does not require reconfiguration of the vehicle’s communication network parameters.

Q: Will the replacement board fit in the original control cabinet without mechanical modification?
A: Yes. The replacement unit maintains the same PCB form factor, mounting hole pattern, and panel depth as the original 33.60.6647, ensuring it fits within the original brake control cabinet or DIN-rail enclosure without requiring any mechanical adaptation or bracket modification.

Q: What is the recommended commissioning procedure after installing the replacement board?
A: After physical installation and harness reconnection, restore 24 VDC power to the brake control unit and observe the board’s status indicators for normal initialization. Run a full brake application and release cycle at standstill to verify valve actuation response. Connect the brake diagnostic tool to confirm no active fault codes are present and that the board is communicating correctly with the TCMS. Document the installation date and board serial number in the vehicle’s maintenance record.

Q: What if the original board failure was caused by a power supply fault — will the replacement board be at risk?
A: If the root cause of the original board failure was an upstream power supply fault (overvoltage, ripple, or reverse polarity), the replacement board will be exposed to the same risk unless the power supply issue is resolved first. We strongly recommend testing the brake control unit’s 24 VDC supply rail for voltage stability and ripple before installing the replacement board. Replacing the power supply module proactively is the safest approach in this scenario.

Warranty Assurance

Every FAIVELEY 33.60.6647 replacement unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. This warranty covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the warranty period.

Prior to shipment, each unit undergoes a functional verification test against FAIVELEY’s original performance parameters, including power-on initialization, signal I/O response, and communication interface integrity. Units that do not pass this outgoing inspection are not shipped. A test report is available upon request for customers requiring incoming inspection documentation.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the customer’s preference and the nature of the fault. Our after-sales response target is within 24 hours of claim submission for standard cases. Customers are not required to return the faulty unit before a replacement is dispatched in urgent operational situations — we prioritize minimizing your system downtime.

For procurement teams managing fleet-level spare parts programs, we offer volume pricing, reserved stock agreements, and extended warranty options. Contact our technical sales team to discuss a supply arrangement tailored to your maintenance schedule and fleet size.

Stock is held in Xiamen and ships via DHL Express, FedEx International Priority, or sea freight depending on order volume and urgency. Typical dispatch time is 1–2 business days from order confirmation. Export documentation, including commercial invoice, packing list, and certificate of origin, is provided as standard for all international shipments.
