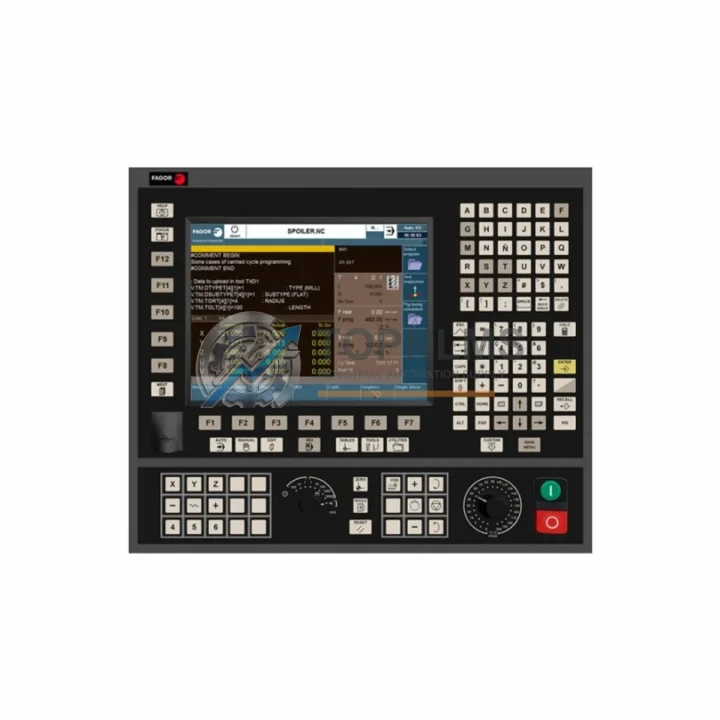

FAGOR PMC-3000 8070-OL-ICU-RS Replacement for 8070 Open Series: Seamless Migration & Upgrade

When a FAGOR 8070 Open Series CNC system reaches end-of-life or a critical ICU module fails on the shop floor, every hour of unplanned downtime translates directly into lost production. The FAGOR PMC-3000 8070-OL-ICU-RS CN70-10U-OL-B4S1-RS-4 is the authoritative replacement and upgrade solution for facilities running the 8070 Open platform — covering milling centers, turning cells, grinding machines, and multi-axis machining systems that depend on FAGOR’s open-architecture CNC environment.

This ICU (Interpolator & CPU Unit) module slots directly into the existing 8070 Open Series rack, preserving the original backplane pinout and power-rail architecture. Engineers migrating from an earlier 8055 CNC controller or a legacy 8040 series will find that the PMC-3000 ICU maintains backward-compatible RS-422/RS-485 serial communication channels, allowing existing machine parameter files and PLC ladder programs to be ported with minimal rework. The module’s onboard SERCOS II / SERCOS III interface ensures compatibility with FAGOR’s own AXD and SPD digital servo drives, so axis tuning data and electronic cam profiles transfer cleanly without re-commissioning from scratch.

Physical installation follows the standard 8070 Open rack form factor. The CN70-10U-OL-B4S1-RS-4 variant occupies a single ICU slot in the 8070-OL rack chassis, with the same DIN-rail mounting footprint as the outgoing unit. Control cabinet space is therefore unchanged — a critical advantage in retrofit projects where panel real estate is fixed. The 24 VDC auxiliary power input and the main DC bus connector positions are identical to the predecessor, eliminating the need to re-route power wiring or modify the cabinet’s PS-65 or PS-25 power supply module connections.

Communication compatibility is a primary concern in any CNC migration. The PMC-3000 ICU supports FAGOR’s proprietary SERCOS ring topology as well as Ethernet-based remote I/O expansion via the RIO5 remote I/O node, which is widely deployed in 8070 Open installations for distributed analog and digital I/O across large machine beds. Fieldbus connectivity through CANopen and optional PROFIBUS-DP adapter cards remains fully supported, ensuring that third-party peripheral devices — encoders, safety relays, and operator panels — continue to communicate without protocol conversion hardware.

For facilities that rely on FAGOR’s WinDNC DNC software for part-program transfer, the RS-232/RS-422 serial port on the ICU module is pin-compatible with the outgoing unit, so existing DNC cables and communication parameters require no modification. Shops using Ethernet-based program transfer can leverage the integrated 100BASE-TX port to connect directly to a plant network or a dedicated CNC data management server.

During the retrofit process, the FAGOR 8070 CNC programming manual and the machine OEM’s electrical schematics remain the primary references. However, the PMC-3000 ICU’s firmware is field-upgradeable via USB, allowing the module to be brought to the latest software revision before installation — reducing the risk of compatibility issues with newer FAGOR HMI panels such as the OP-PANEL-15T or the OP-PANEL-19W touch-screen operator stations that are commonly paired with 8070 Open systems in modernization projects.

Procurement teams will note that the PMC-3000 ICU is stocked and tested at our Xiamen facility, with same-day dispatch available for in-stock units. Each module undergoes functional verification on a live 8070 Open test bench before shipment, covering axis interpolation, I/O scan cycles, and serial communication integrity. Export documentation, including commercial invoice, packing list, and certificate of origin (Spain), is prepared as standard for international shipments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete 8070 Open migration rarely involves the ICU module in isolation. In practice, the replacement process typically encompasses several interconnected components. The 8070-OL rack chassis itself may require inspection or replacement if backplane connectors show wear from years of thermal cycling. The PS-65 power supply module — which feeds the ICU and axis boards — should be tested for output ripple before the new ICU is commissioned, as a marginal power supply can cause intermittent faults that are difficult to diagnose after the fact.

On the motion side, the AXD-1.25 digital servo drive and SPD-2.50 spindle drive are the most common drive modules paired with this ICU in multi-axis machining centers. Both communicate over the SERCOS ring and retain their axis parameters in non-volatile memory, so drive replacement or re-pairing with the new ICU is straightforward using FAGOR’s WinDNC or the onboard setup wizard. Facilities upgrading from an older 8055 CNC controller to the 8070 Open platform will also need to account for the RIO5 remote I/O expansion node, which bridges the legacy I/O wiring harness to the new SERCOS-based I/O architecture — eliminating the need to re-terminate hundreds of field wires at the cabinet terminal blocks.

Operator interface upgrades are equally important for a smooth transition. The OP-PANEL-15T touch-screen HMI connects to the ICU via Ethernet and USB, providing a modern operator experience while retaining compatibility with existing part-program libraries. For applications where the original keyboard unit or jog panel must be retained, FAGOR’s USB-to-serial adapter allows legacy operator panels to interface with the new ICU without hardware modification. Finally, a programming cable CN-232 is recommended for initial parameter backup and firmware verification before the old ICU is removed from service — a low-cost insurance step that prevents data loss during the changeover.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring harness when replacing the ICU?
A: Yes. The CN70-10U-OL-B4S1-RS-4 variant maintains the same connector pinout as the outgoing 8070 Open ICU. All axis feedback cables, I/O ribbon connectors, and serial communication cables connect without modification.

Q: Do I need to reload my PLC program and machine parameters?
A: Machine parameters and PLC programs should be backed up from the outgoing ICU using WinDNC or a USB drive before removal. The new ICU ships with blank non-volatile memory; parameters are restored via the standard FAGOR parameter upload procedure, which typically takes 15–30 minutes.

Q: Is the SERCOS ring topology preserved?
A: Yes. The PMC-3000 ICU supports both SERCOS II and SERCOS III, so existing SERCOS II drive rings operate without modification. SERCOS III capability is available for future drive upgrades.

Q: Will the new ICU fit in my existing control cabinet without modification?
A: The module occupies the same single ICU slot in the 8070-OL rack and uses the same DIN-rail mounting points. No cabinet sheet-metal work or additional mounting hardware is required.

Q: How do I verify the module is functioning correctly after installation?
A: FAGOR’s built-in diagnostic screens (accessible from the HMI) provide real-time axis status, I/O scan results, and SERCOS ring health. A standard axis jog test and spindle orientation check are recommended before returning the machine to production.

Q: What if my machine uses PROFIBUS-DP for peripheral communication?
A: The PMC-3000 ICU supports the same PROFIBUS-DP adapter card slot as the outgoing unit. Insert the existing adapter card and the PROFIBUS configuration is retained without re-parameterization.

Warranty Assurance

Every FAGOR PMC-3000 8070-OL-ICU-RS CN70-10U-OL-B4S1-RS-4 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module is tested on a live 8070 Open Series test bench, verifying axis interpolation cycles, SERCOS ring communication, serial port integrity, and Ethernet connectivity. A test report is available upon request.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical team responds to after-sales inquiries within one business day. Replacement units for warranty cases are dispatched with priority shipping to minimize machine downtime. All units are shipped with ESD-protective packaging, foam-lined cartons, and full export documentation.

For procurement teams requiring traceability, each unit is accompanied by a packing list, commercial invoice, and certificate of origin. Bulk orders and standing purchase agreements are available for MRO and spare-parts programs.
