Fagor 8055i/A-M-COL-K Replacement Upgrade Solution

Product Overview

Fagor 8055i/A-M-COL-K Replacement Upgrade Solution: Seamless Transition from Legacy CNC Controls

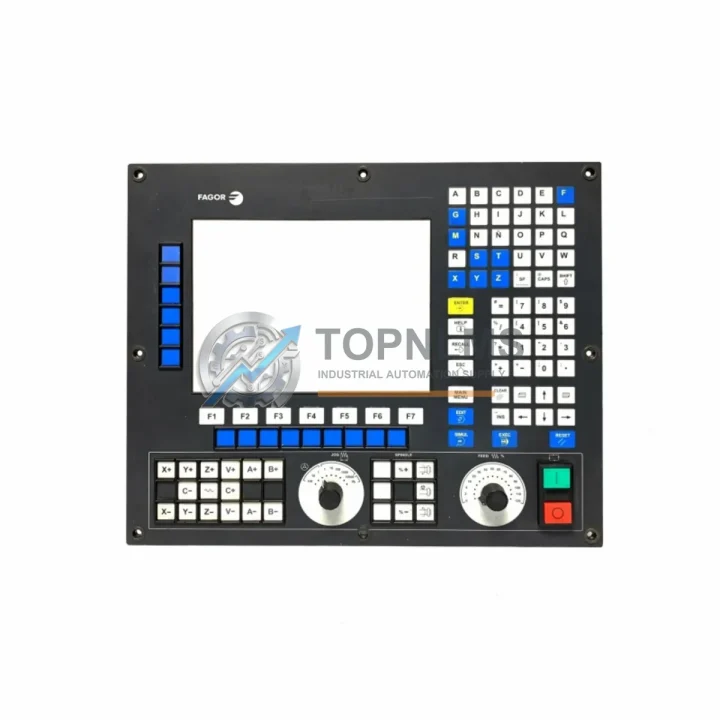

The Fagor 8055i/A-M-COL-K is a color CNC operator panel designed for milling machine control applications within the Fagor 8055i series. As Fagor Automation entered insolvency and ceased production, facilities worldwide that rely on the 8055i/A-M-COL-K and its associated control architecture now face the critical challenge of sourcing verified replacement units or planning a structured upgrade path. TOPNLMS specializes in exactly this scenario: supplying tested, ready-to-ship 8055i/A-M-COL-K units and providing the technical guidance needed to execute a smooth migration with minimal production downtime.

Whether your facility is running a legacy Fagor 8055i-based milling center that requires a direct panel swap, or you are planning a broader CNC retrofit that integrates new I/O modules, communication interfaces, and operator terminals, this page covers the compatibility considerations, upgrade pathway, and procurement assurance you need to make a confident purchasing decision.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 8055i/A-M-COL-K replacement rarely involves the operator panel alone. In most milling retrofit projects, the panel swap is the starting point of a broader system review. During commissioning, engineers typically inspect and, where necessary, replace or upgrade adjacent components to ensure the entire control chain is reliable before returning the machine to production.

The Fagor 8055i control cabinet commonly houses a dedicated Fagor power supply module that feeds both the CNC operator panel and the axis drive system. If the PSU shows signs of aging — capacitor bulge, output voltage drift, or thermal shutdown events — replacing it alongside the 8055i/A-M-COL-K panel eliminates a secondary failure point and avoids a repeat service call. Similarly, the Fagor 8055i I/O expansion module, which handles digital inputs and outputs for spindle control, coolant, tool change, and door interlock signals, should be inspected for relay wear and connector oxidation during the same maintenance window.

Communication integrity is another key concern. The 8055i series uses a proprietary Fagor CAN bus to link the operator panel to the servo drive modules — typically Fagor AXD or SPD series digital servo drives — that control the X, Y, Z, and spindle axes. If the CAN bus cable harness or the termination resistors have degraded, the new panel may exhibit communication faults immediately after installation. Replacing the CAN bus cable assembly and verifying the servo drive firmware version before powering up the new panel is standard practice in professional retrofit work.

For facilities that are taking the opportunity to modernize further, the Fagor 8055i/A-M-COL-K replacement can serve as the gateway to a broader platform migration. Some customers choose to retain the existing Fagor servo drives and motor feedback encoders while upgrading only the CNC controller and operator panel, using a compatible third-party CNC kernel that supports the same encoder interface and drive communication protocol. In these hybrid retrofit scenarios, a signal isolation module or protocol converter is often inserted between the new controller and the legacy Fagor servo amplifier to bridge any electrical or timing differences.

Tooling and programming continuity is equally important. The Fagor 8055i stores machine parameters, PLC ladder programs, and part programs in battery-backed RAM. Before removing the old panel, a full parameter backup via the RS-232 serial port or USB interface (depending on firmware version) is essential. The Fagor programming cable — a standard DB9 null-modem cable or the Fagor-specific USB adapter — should be on hand during commissioning. If the original programming cable has been lost, TOPNLMS can advise on compatible cable specifications.

Finally, for machines where the operator panel is mounted on a swing arm or pendant, the mechanical mounting bracket and cable management conduit should be inspected. The 8055i/A-M-COL-K panel’s weight and connector routing are identical to the original, so existing pendant hardware is reusable, but cable strain relief clips and conduit fittings often need replacement after years of continuous articulation.

Retrofit Guidance FAQ

Q: Can I swap the 8055i/A-M-COL-K panel without rewiring the control cabinet?
A: Yes. The replacement unit uses the same backplane connector pinout and physical dimensions as the original. A direct swap requires no rewiring. However, we recommend inspecting all connector pins for oxidation and applying contact cleaner before seating the new panel.

Q: Will my existing PLC ladder program and machine parameters work on the replacement panel?
A: Yes, provided you back up the parameters from the original panel before removal. The 8055i/A-M-COL-K stores parameters in battery-backed RAM. Use the Fagor RS-232 or USB backup procedure to save and restore all machine data. If the original panel is non-functional, TOPNLMS can advise on alternative parameter recovery methods.

Q: What communication protocols does the 8055i/A-M-COL-K support?
A: The panel communicates with Fagor servo drives and I/O modules via the Fagor proprietary CAN bus. It also supports RS-232 serial for parameter backup, DNC program transfer, and PC-based programming software. Ethernet connectivity depends on the specific firmware version installed.

Q: Will the replacement panel fit in the existing cabinet cutout?
A: Yes. The 8055i/A-M-COL-K replacement unit maintains the same mechanical envelope as the original. No cabinet modification or new panel cutout is required.

Q: What if my Fagor servo drives also need replacement?
A: TOPNLMS stocks a range of Fagor AXD and SPD series servo drive modules. If your retrofit requires drive replacement alongside the operator panel, contact us for a combined quotation. Replacing drives and the operator panel in the same service window minimizes total machine downtime.

Q: How do I verify the replacement panel is compatible with my specific machine firmware version?
A: Provide your machine’s current firmware version (visible in the 8055i diagnostics menu) and your machine builder’s model designation when placing your order. TOPNLMS will confirm compatibility before shipment.

Warranty Assurance

Every Fagor 8055i/A-M-COL-K unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Before dispatch, each unit undergoes a functional power-on test and visual inspection to verify display integrity, keypad response, connector condition, and communication port functionality. Units that do not pass inspection are not shipped.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or issue a full refund, depending on stock availability and customer preference. Our after-sales response target is within 24 hours of fault notification for all warranty claims. Customers are required to retain the original packaging for warranty return shipments.

For procurement teams, TOPNLMS issues a formal invoice, packing list, and certificate of testing for every order. Export documentation, including commercial invoice and country of origin declaration, is provided for international shipments. Lead time for in-stock units is typically 3–7 business days to most destinations, with express shipping options available on request.

For volume orders, spare parts programs, or long-term supply agreements covering multiple Fagor 8055i series components, please contact our sales team directly to discuss pricing, lead time commitments, and quality documentation requirements.
