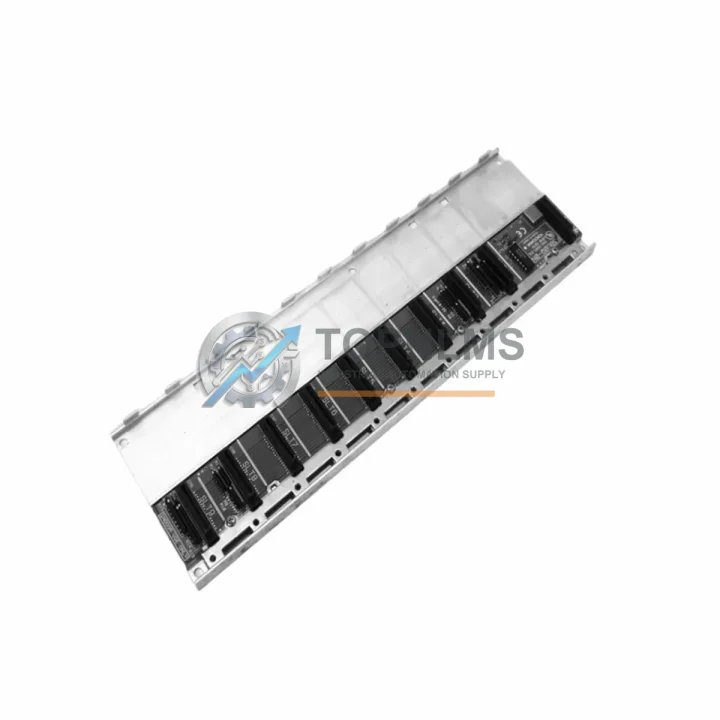

YOKOGAWA F3BU09-0N Ruggedized Base Unit Module for Harsh Environments

Product Overview

YOKOGAWA F3BU09-0N Ruggedized Base Unit Module for Harsh Environments: Industrial Resilience & Reliable Control Infrastructure

The YOKOGAWA F3BU09-0N is a 9-slot base unit module engineered for the FA-M3 Series programmable controller platform — a control architecture trusted across some of the world’s most demanding industrial environments. From offshore petrochemical platforms and underground mining operations to high-temperature steel mills and continuous-process chemical plants, the FA-M3 base unit forms the structural and electrical backbone of the entire control cabinet. When that backbone is compromised, every module it supports — CPU, I/O, power supply, and communications — is at risk.

The F3BU09-0N provides nine module slots on a single backplane, accommodating the full range of FA-M3 functional modules within a compact, mechanically robust chassis. Its backplane bus is designed to maintain signal integrity under conditions of sustained vibration, thermal cycling, and electromagnetic interference — conditions that are routine in heavy industry but fatal to lesser-grade control hardware. Sourcing an original YOKOGAWA F3BU09-0N rather than a third-party substitute ensures that backplane impedance, connector tolerances, and bus timing remain within the parameters that YOKOGAWA’s CPU and I/O modules were validated against.

Rugged Specifications Table

Comprehensive Protection Solutions for FA-M3 Control Cabinets

The F3BU09-0N does not operate in isolation — it is the physical and electrical foundation upon which an entire FA-M3 control node is built. In harsh industrial environments, the reliability of every module seated in its slots depends directly on the mechanical integrity and electrical stability of the base unit itself. A disciplined approach to control cabinet protection therefore begins with the base unit and extends outward to every component it supports.

The power supply module is the first line of defense. The F3PU20-0N FA-M3 power supply unit converts incoming AC or DC supply voltage into the regulated internal bus voltages that the F3BU09-0N distributes to all seated modules. In environments with unstable grid power — common in mining, cement production, and heavy forging operations — capacitor degradation in aging power supplies is a primary cause of intermittent backplane faults. Replacing the power supply module proactively during a base unit swap eliminates this hidden failure mode in a single maintenance window.

CPU modules seated in the F3BU09-0N — such as the F3SP22-0S, F3SP28-3N, or F3SP38-6N — are equally sensitive to backplane connector quality. In high-vibration environments such as compressor halls, press lines, and rotating machinery platforms, connector fretting corrosion between the CPU module and the base unit backplane is a documented failure mechanism. Inspecting and reseating the CPU module during any base unit replacement is standard practice, and maintaining a spare CPU module on-site eliminates the risk of extended downtime if connector damage is found.

Digital and analog I/O modules — including the F3XD16-4N mixed digital I/O module, the F3AD04-1N analog input module, and the F3DA04-1N analog output module — must be carefully inspected when a base unit is replaced. Each module’s edge connector should be examined for oxidation or mechanical deformation before reinsertion into the new base unit. In chemically aggressive environments such as water treatment plants and fertilizer production facilities, connector oxidation is accelerated and may require cleaning with appropriate contact spray before reinstallation.

Communication modules are particularly vulnerable in electrically noisy environments. The F3LE01-5T Ethernet interface module and F3LC11-1F PROFIBUS-DP module rely on the base unit’s backplane for both power and data bus connectivity. In environments with high electromagnetic interference — such as arc furnace control rooms, variable frequency drive (VFD) enclosures, and high-voltage switchgear rooms — shielding integrity between the base unit and communication modules is critical. Verifying that all module retention clips are fully engaged and that cable shields are properly grounded at the cabinet entry point is a mandatory step during any base unit maintenance activity.

Relay output modules and safety-rated I/O modules seated in the F3BU09-0N should also be included in the inspection scope. In applications where the FA-M3 system controls safety-critical functions — emergency shutdown sequences, fire and gas detection interlocks, or high-pressure relief valve actuation — the mechanical integrity of the base unit is a safety-relevant parameter. Any evidence of physical damage, discoloration from heat, or corrosion on the base unit chassis should be treated as a mandatory replacement trigger, not a cosmetic concern.

Application in Critical Infrastructure

The YOKOGAWA F3BU09-0N is deployed across a broad spectrum of critical infrastructure sectors where control system reliability is directly linked to operational safety and production continuity.

In oil and gas processing, FA-M3 systems equipped with F3BU09-0N base units manage compressor control, separator sequencing, and pipeline pressure regulation. Ambient temperatures in outdoor equipment skids can exceed 50°C during summer operations, and the base unit must maintain full electrical performance across this range without derating. The F3BU09-0N’s thermal design accommodates these conditions within its rated operating envelope.

In power generation — including coal-fired, gas turbine, and hydroelectric facilities — FA-M3 controllers handle auxiliary system control: cooling water pumps, fuel feed systems, and generator protection relays. The electromagnetic environment in power plant control rooms is among the most challenging in industry, with high-frequency switching transients from large motor drives and transformer inrush currents creating continuous EMI stress on control hardware. The FA-M3 platform’s EMC design, anchored by the F3BU09-0N backplane, is validated for these conditions.

In mining and mineral processing, FA-M3 systems control conveyor drives, crusher sequencing, and flotation cell management in environments characterized by heavy dust loading, mechanical vibration, and corrosive chemical exposure. The F3BU09-0N’s robust mechanical construction and sealed connector design provide the physical durability required for reliable operation in these conditions.

In water and wastewater treatment, FA-M3 controllers manage pump stations, chemical dosing systems, and filtration sequences in facilities that operate continuously, 24 hours a day, 365 days a year. Unplanned downtime in water treatment directly impacts public health infrastructure. Maintaining a verified spare F3BU09-0N base unit at each major treatment facility is a recognized best practice for operational resilience.

In metallurgy and steel production, the thermal and vibrational stresses on control hardware are extreme. FA-M3 systems in rolling mill and continuous casting applications must maintain scan-cycle consistency despite ambient temperatures that can approach the upper limits of the operating range. The F3BU09-0N’s backplane design ensures that module-to-module communication latency remains within specification even under sustained thermal load.

Security & Quality FAQ

Q1: What pre-shipment testing is performed on the F3BU09-0N?
Every F3BU09-0N unit undergoes a full functional test prior to dispatch, including backplane bus continuity verification, slot connector inspection, and mechanical integrity check. Units are shipped in ESD-protective packaging with foam cushioning to prevent transit damage. A test report is available upon request.

Q2: What does the 12-month warranty cover, and how are claims handled?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority turnaround to minimize customer downtime, and replacement units are dispatched from stock wherever possible.

Q3: Is the F3BU09-0N compatible with all FA-M3 module generations?
Yes. The F3BU09-0N is designed to the FA-M3 backplane standard and is compatible with all FA-M3 series CPU, I/O, power supply, and communication modules across all production generations. It is recommended to verify that module firmware versions are current before reinserting modules into a replacement base unit, particularly for systems that have been in service for more than ten years.

Q4: How should long-term spare parts inventory for FA-M3 base units be managed?
For facilities operating multiple FA-M3 control nodes, a recommended minimum stock level is one F3BU09-0N base unit per site, stored in a climate-controlled environment (15°C–25°C, <60% RH). Base units in storage should be inspected annually for connector oxidation and mechanical condition. Units held in storage for more than five years should undergo a full functional test before being placed into service. TOPNLMS maintains ongoing stock of F3BU09-0N units and can support emergency procurement requirements with rapid dispatch.
