Encoder Ron 785C.0003-18000 Replacement for 785C Series

Product Overview

Encoder Ron 785C.0003-18000 Replacement for 785C Series: Smooth Transition & Legacy System Compatibility

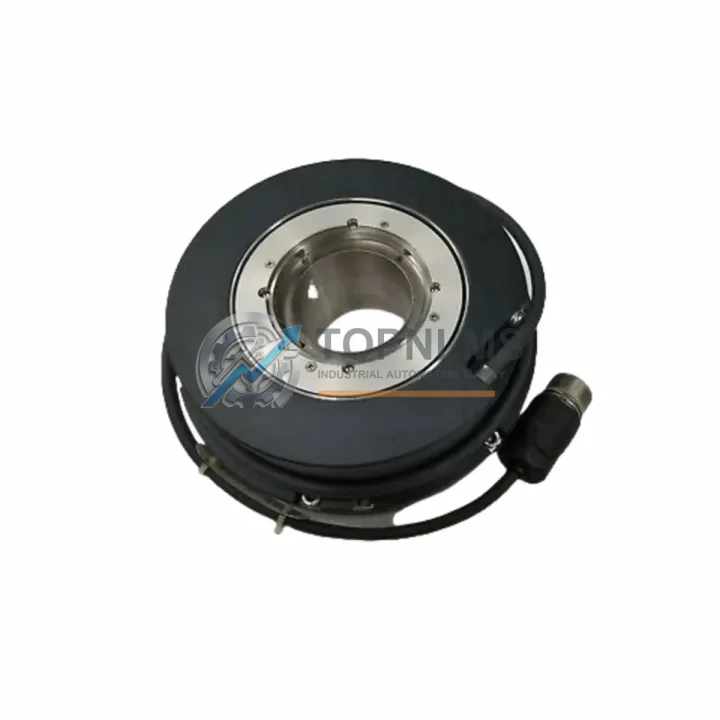

The Encoder Ron 785C.0003-18000 (part number 311262-01) is an 18,000 PPR incremental servo encoder engineered as a direct replacement and upgrade solution for aging or discontinued 785C Series encoder assemblies. Whether you are maintaining a legacy servo drive system, retrofitting a CNC spindle axis, or replacing a failed feedback device on a multi-axis motion controller, this encoder delivers the precision, mechanical compatibility, and electrical interface consistency required for a smooth, low-downtime swap.

Industrial facilities running older servo systems — including those built around Siemens SIMODRIVE 611, Fanuc α-series amplifiers, Mitsubishi MR-J2S drives, or Yaskawa SGDH servo packs — frequently encounter encoder obsolescence as the original OEM feedback devices reach end-of-life. The 785C.0003-18000 addresses this challenge directly: its 18,000 PPR resolution, standard TTL differential output (A, /A, B, /B, Z, /Z), and compact flange dimensions allow it to substitute for a wide range of legacy incremental encoders without requiring axis recalibration or drive parameter overhaul.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful encoder migration rarely involves a single component. When replacing the 785C.0003-18000 in a live production environment, the surrounding system architecture must be evaluated to ensure end-to-end signal integrity and mechanical alignment.

If the host servo drive is a Siemens 6SN1118 SIMODRIVE 611 control module or a 6SL3120 SINAMICS S120 motor module, the encoder interface card — typically a Siemens SMC20 or SME20 sensor module — must be verified for TTL input compatibility at 18,000 PPR. In most cases, the encoder resolution is entered as a parameter (P0408 or equivalent) and no hardware change is needed. For Fanuc-based systems using a Fanuc A06B-6096 servo amplifier, the encoder feedback is read through the CNC’s axis card; updating the CMR/DMR ratio in the CNC parameters accommodates the new PPR value without rewiring.

On the mechanical side, the encoder is typically coupled to the motor shaft via a bellows-type or jaw-type flexible coupling — a component that should be inspected and replaced if worn, as shaft misalignment is a leading cause of premature encoder failure. If the motor uses a Heidenhain ERN 1381 or ERN 1387 legacy encoder that is being phased out, the 785C.0003-18000 provides a cost-effective alternative with equivalent TTL output characteristics and compatible flange geometry.

For systems that route encoder signals over longer cable runs — common in large CNC machining centers or multi-axis gantry systems — a signal repeater or RS-422 line driver module may be required to maintain signal integrity at 18,000 PPR. Additionally, if the installation involves a Beckhoff EL5101 incremental encoder terminal or a Mitsubishi QD75 positioning module, the input frequency limit should be confirmed against the maximum output frequency of the 785C.0003-18000 at the target RPM.

Where the encoder is mounted on a motor that feeds into a Rexroth IndraDrive C or IndraDrive M drive system, the encoder type selection in the IndraWorks DS commissioning software must be set to “incremental TTL” with the correct line count. The Rexroth MSK servo motor series commonly uses this encoder class, and the 785C.0003-18000 is a recognized substitute in that platform’s retrofit documentation. Finally, if the control cabinet houses a Phoenix Contact QUINT 5 VDC power supply or similar regulated source, verify that the encoder’s current draw (typically 100–150 mA) is within the supply’s available headroom, particularly when multiple encoders share a single rail.

Retrofit Guidance FAQ

Q: Can I replace my existing encoder without modifying the wiring harness?
A: In most cases, yes — provided the replacement encoder uses the same TTL differential output standard (A, /A, B, /B, Z, /Z) and the connector pinout is matched. We recommend verifying the pinout diagram against your existing cable before installation. Adapter cables are available for common M23 and M12 configurations.

Q: Do I need to update drive parameters after replacing the encoder?
A: If the new encoder has a different PPR value than the original, the servo drive’s encoder resolution parameter must be updated. For most modern drives (Siemens, Fanuc, Mitsubishi, Yaskawa), this is a single parameter change that does not require a full recommissioning. Refer to your drive’s parameter manual for the specific register.

Q: Is the 785C.0003-18000 compatible with absolute encoder interfaces?
A: This model is an incremental TTL encoder. It is not compatible with absolute encoder interfaces (e.g., EnDat 2.2, HIPERFACE, SSI). If your drive requires an absolute feedback signal, please contact us to discuss alternative models.

Q: What is the maximum shaft speed for reliable operation?
A: At 18,000 PPR and a maximum output frequency of 300 kHz (typical for TTL encoders of this class), the maximum shaft speed is approximately 1,000 RPM. For higher-speed applications, confirm the drive’s input frequency limit and the encoder’s rated maximum RPM before installation.

Q: How do I verify Z-pulse alignment after installation?
A: After mechanical installation, perform a reference point return (homing) cycle on the axis. Monitor the Z-pulse signal with an oscilloscope or the drive’s diagnostic screen to confirm it occurs at the correct mechanical position. If the Z-pulse position has shifted, adjust the encoder’s angular position on the shaft or update the home offset parameter in the CNC/drive.

Q: Can this encoder be used in a dusty or coolant-mist environment?
A: The 785C.0003-18000 carries an IP54 rating, which provides protection against dust ingress and coolant splash — suitable for most machine tool environments. For submersion or high-pressure washdown applications, an IP67-rated model should be specified.

Warranty Assurance

Every Encoder Ron 785C.0003-18000 (311262-01) shipped from TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including signal output check, PPR count confirmation, and mechanical runout inspection. This ensures that the encoder you receive is ready for immediate installation without additional incoming inspection.

In the event of a warranty claim, our after-sales team responds within 1 business day. Defective units are eligible for replacement or refund at the buyer’s discretion. We maintain buffer stock of the 785C.0003-18000 to support urgent replacement orders — typical lead time for in-stock units is 3–7 business days to most destinations, with express shipping available on request.

For OEM procurement teams, system integrators, and MRO buyers managing multi-site spare parts programs, we offer consolidated invoicing, certificate of conformance documentation, and batch traceability records upon request. Contact our technical sales team to discuss volume pricing, consignment stock arrangements, or approved vendor qualification support.

Stock is inspected, tested, and dispatched from our Xiamen facility. All units are packed in anti-static protective packaging with individual labeling for traceability.
