Berger Lahr TLC636F Original Industrial Spare TLCF Compatible

Product Overview

Berger Lahr TLC636F Original Industrial Spare TLCF Compatible: System Stability & Servo Drive Maintenance Value

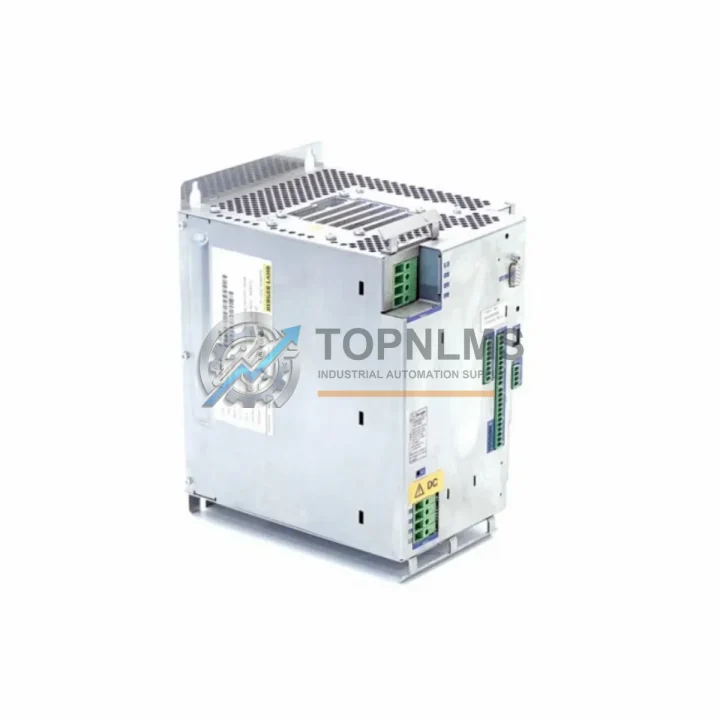

The Berger Lahr TLC636F is a genuine original AC servo drive amplifier from the TLCF Series, engineered for precision motion control in demanding industrial automation environments. Whether you are managing a scheduled overhaul, responding to an unplanned servo fault, or building a strategic spare parts inventory for a legacy motion control system, the TLC636F delivers the electrical compatibility, dimensional accuracy, and performance consistency that maintenance engineers depend on.

In modern manufacturing facilities — from automotive assembly lines to packaging machinery, CNC machining centres, and textile production equipment — servo drive failures represent one of the highest-risk single points of failure. A failed servo amplifier can halt an entire production cell within seconds. Having a verified original TLC636F on the shelf is not a luxury; it is a calculated risk-reduction strategy that directly protects uptime, throughput, and revenue.

The TLC636F is designed as a direct replacement within Berger Lahr TLCF Series servo systems. Its compatibility with existing motor feedback cables, encoder interfaces, and control bus wiring means that field replacement can be completed without rewiring or reconfiguration in most standard installations, dramatically reducing mean time to repair (MTTR) and minimising the expertise required at the point of failure.

Critical Technical Specs

Preventive Maintenance Strategy

A servo drive failure rarely occurs in isolation. When a TLC636F is flagged for replacement during a planned shutdown or emergency repair, experienced maintenance teams use the opportunity to audit the entire servo axis and surrounding control cabinet for components that may be approaching end-of-life. This proactive approach prevents secondary failures that would otherwise cause additional unplanned downtime within weeks of the primary repair.

Begin with the servo motor feedback cable and encoder connector on the TLCF Series motor shaft. Vibration and thermal cycling cause connector pin corrosion and cable jacket cracking over time; a degraded feedback signal is a common root cause of apparent drive faults. While the cabinet is open, inspect the 24 VDC control power supply module that feeds the drive’s logic board — an ageing PSU with marginal output voltage will cause intermittent drive trips that are difficult to diagnose without a replacement unit on hand.

Check the I/O interface module connected to the TLC636F’s digital inputs and outputs. In many TLCF installations, a dedicated relay output module handles the servo-ready and fault-reset signals; relay contacts wear with switching cycles and should be tested for contact resistance. The terminal block assemblies on the drive’s power and signal wiring should be re-torqued and inspected for discolouration indicating thermal stress.

For systems using fieldbus communication, verify the integrity of the PROFIBUS DP or CANopen communication module connected to the drive. Communication timeouts are a frequent cause of nuisance faults in older servo systems and are often misdiagnosed as drive hardware failures. Similarly, inspect the EMC line filter upstream of the TLC636F — a failed filter capacitor can introduce conducted interference that destabilises the drive’s current loop.

If the TLC636F is part of a multi-axis gantry or coordinated motion system, consider simultaneously reviewing the servo controller or motion controller backplane for loose axis cards and inspect the regenerative braking resistor for signs of overheating. In high-duty-cycle applications, the braking resistor is a consumable component with a finite service life. Finally, review the fuse modules and circuit breakers protecting the drive’s AC input — correct sizing and condition are essential for both protection and regulatory compliance.

Stocking the TLC636F alongside these complementary components as a coordinated spare parts kit is a best practice that reduces the number of separate procurement events, simplifies inventory management, and ensures that a complete repair can be executed from on-site stock without waiting for additional parts to arrive.

Strategic Replacement Solutions

The Berger Lahr TLC636F addresses one of the most persistent challenges in industrial maintenance: keeping legacy servo systems operational when the original equipment manufacturer has discontinued active production of a component. Berger Lahr’s TLCF Series drives were widely deployed across European and Asian manufacturing facilities throughout the 1990s and 2000s, and a significant installed base remains in service today — often embedded in machinery that is otherwise mechanically sound and fully productive.

Replacing a TLCF Series drive with a modern third-party servo amplifier typically requires motor re-parameterisation, feedback cable adaptation, and PLC or CNC program modifications — a process that can consume days of engineering time and introduce new commissioning risks. The TLC636F eliminates this complexity entirely. As an original-specification replacement, it restores the servo axis to its validated operating state without any changes to the surrounding system, preserving the machine’s existing safety certifications and process qualifications.

For facilities managing multiple TLCF Series axes, a structured replacement strategy — replacing drives on a rolling schedule based on operating hours or fault history rather than waiting for failure — converts unpredictable emergency repairs into planned maintenance events. This approach is particularly valuable in industries with strict production scheduling constraints, where unplanned downtime carries significant financial and contractual penalties.

Each TLC636F unit dispatched from TOPNLMS undergoes functional verification testing before shipment. Units are packaged in anti-static, shock-resistant packaging suitable for international freight. Full documentation including test records is available on request.

Support FAQ

Q1: What is the warranty coverage for the TLC636F?
All TLC636F units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides remote commissioning support to assist with installation and fault diagnosis throughout the warranty period.

Q2: How do I verify compatibility with my existing TLCF Series servo motor?
Compatibility is confirmed by matching the motor’s nameplate data — specifically the feedback type (incremental encoder, resolver, or absolute encoder), voltage rating, and current rating — against the TLC636F’s input specifications. Please provide your motor model number and existing drive parameter file when enquiring, and our team will confirm compatibility before order placement.

Q3: What pre-shipment testing is performed on each unit?
Each unit undergoes power-on functional testing, DC bus voltage verification, output stage integrity check, and communication interface validation prior to dispatch. A test report is available upon request. Units that do not meet original specification are not dispatched.

Q4: Can I order multiple units for strategic spare parts inventory?
Yes. Volume orders for spare parts inventory are accommodated with priority allocation and consolidated shipping. We recommend maintaining a minimum of one TLC636F per three to five installed axes as a baseline inventory strategy. Contact us to discuss volume pricing and lead times for your specific requirements.
