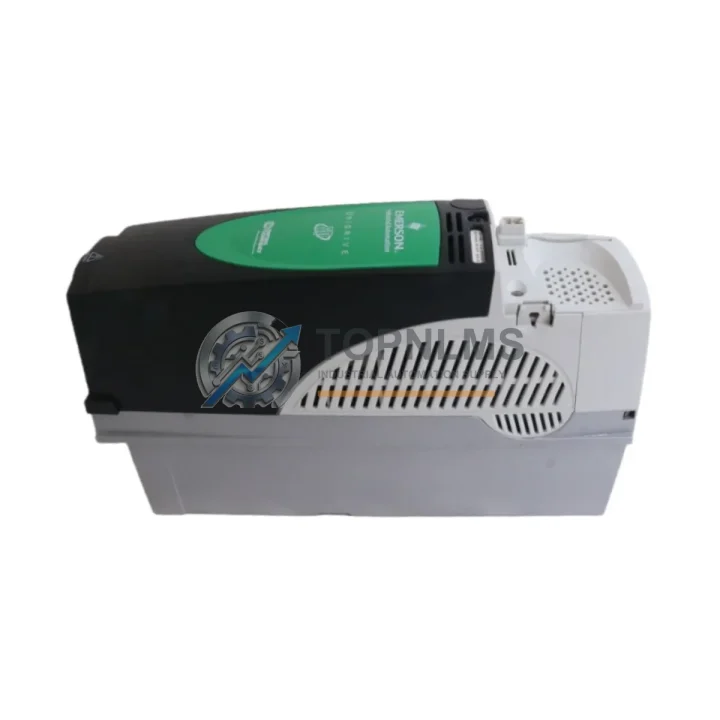

Emerson SP1406 Ruggedized Variable Frequency Drive

Product Overview

Emerson SP1406 Ruggedized Variable Frequency Drive: Industrial Resilience for Harsh Environments

The Emerson SP1406 is a high-performance, ruggedized Variable Frequency Drive (VFD) from Emerson’s proven SP Series, engineered to deliver precise motor speed control and energy efficiency in the most demanding industrial environments. Whether deployed on continuous production lines, in heavy-process facilities, or within safety-critical infrastructure, the SP1406 is built to sustain reliable operation under conditions of elevated temperature, high humidity, airborne particulate, mechanical vibration, and electromagnetic interference (EMI). For procurement engineers and plant maintenance teams seeking a dependable drive solution with verifiable supply chain integrity, the SP1406 represents a technically sound and commercially viable choice.

Rugged Specifications Table

Comprehensive Protection Solutions

The Emerson SP1406 is rarely deployed in isolation. In a modern industrial control cabinet, it operates as part of a tightly integrated system where every component’s reliability directly affects overall plant uptime. When paired with an Emerson SP Series input reactor or output filter module, the SP1406’s harmonic distortion is significantly reduced, protecting both the drive and connected motor windings from premature degradation. In PLC-coordinated systems, the SP1406 interfaces seamlessly with Emerson Control Techniques Commander series drives and Emerson PACSystems RX3i PLC modules via Modbus RTU, enabling centralized supervisory control without additional protocol converters.

For installations requiring safety-rated motor stopping, the SP1406 can be integrated with a dedicated safety relay module — such as the Pilz PNOZ or equivalent IEC 62061-compliant device — to achieve SIL 2 safe torque-off (STO) functionality. On the power distribution side, pairing the SP1406 with a properly rated MCCB (Molded Case Circuit Breaker) and EMC line filter at the panel input ensures compliance with IEC 61800-3 Category C2 emission limits, critical for facilities operating sensitive instrumentation nearby.

In distributed I/O architectures, the SP1406’s RS-485 port connects directly to Emerson or third-party remote I/O terminal modules, allowing process feedback signals — such as pressure transducer outputs, flow meter pulses, or temperature sensor readings — to be fed directly into the drive’s PID control loop. This eliminates the need for a separate PLC analog input card in simpler single-loop applications. For multi-drive installations on a common DC bus, the SP1406 can be coordinated with Emerson SP Series braking resistor units and dynamic braking modules to safely dissipate regenerative energy during rapid deceleration cycles, a common requirement in crane, hoist, and centrifuge applications.

When the SP1406 is installed within a control cabinet alongside 24 VDC industrial power supplies, DIN-rail mounted terminal blocks, and communication gateway modules (e.g., Modbus-to-PROFINET converters), proper cable segregation and shielding practices are essential. TOPNLMS supplies not only the SP1406 itself but also advises on compatible peripheral components to ensure your complete panel build meets both functional and regulatory requirements.

Application in Critical Infrastructure

The Emerson SP1406 has established a strong track record across a broad spectrum of critical industrial sectors where unplanned downtime carries severe operational and financial consequences.

In oil and gas upstream and midstream facilities, the SP1406 controls pump and compressor motors in environments characterized by explosive atmospheres, wide ambient temperature swings, and persistent vibration from rotating machinery. When installed within ATEX-rated enclosures, the drive provides the variable-speed control necessary to optimize flow rates and reduce energy consumption on pipeline booster stations and wellhead injection pumps.

In mining and mineral processing, the SP1406 drives conveyor belt motors, ball mill drives, and slurry pump systems where dust ingress, shock loading, and voltage fluctuations from large motor starts are constant challenges. Its built-in overcurrent and phase-loss protection prevents catastrophic motor failures that would halt production and trigger costly emergency maintenance callouts.

In power generation and utilities — including thermal, hydro, and wind facilities — the SP1406 is used for cooling fan control, auxiliary pump drives, and valve actuator positioning. Its wide input voltage tolerance and robust EMC filtering make it suitable for environments where grid quality is variable and harmonic pollution from other large drives is a concern.

In water and wastewater treatment plants, the SP1406 provides precise speed control for aeration blowers, sludge pumps, and dosing systems. The drive’s PID control capability allows direct closed-loop pressure or flow regulation, reducing the need for throttling valves and delivering measurable energy savings over fixed-speed motor installations.

In metallurgy and steel production, where furnace exhaust fans, rolling mill auxiliary drives, and cooling water pumps must operate continuously under extreme thermal and electromagnetic stress, the SP1406’s thermal management design and comprehensive fault protection suite ensure sustained operation between planned maintenance intervals.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures arising under normal operating conditions from the date of shipment. If a unit exhibits a fault within the warranty period, TOPNLMS will arrange inspection, repair, or replacement at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault symptom.

Q2: How is each SP1406 unit tested before shipment?
Every Emerson SP1406 unit dispatched by TOPNLMS undergoes a pre-shipment functional inspection that includes power-on verification, parameter initialization check, and output voltage balance measurement across all three phases. Units that fail any inspection criterion are quarantined and not offered for sale. A test record is available upon request for quality-critical procurement processes.

Q3: Is the SP1406 compatible with my existing Emerson SP Series installation or third-party PLC system?
The SP1406 is fully compatible with the Emerson SP Series product family and is designed to be a direct replacement for same-frame-size SP Series drives. For integration with third-party PLC systems — including Siemens S7, Allen-Bradley ControlLogix, Mitsubishi MELSEC, or Schneider Modicon — the drive’s standard RS-485 Modbus RTU port provides broad interoperability. Optional communication cards extend compatibility to PROFIBUS DP and DeviceNet networks. TOPNLMS technical support can advise on parameter configuration for specific PLC integration scenarios.

Q4: Can TOPNLMS guarantee long-term supply continuity for the SP1406?
TOPNLMS maintains dedicated stock of high-demand Emerson SP Series drives, including the SP1406, to support both immediate replacement needs and planned maintenance programs. For customers managing multi-site installations or long-term service contracts, we offer reserved stock arrangements and advance procurement planning. Contact our sales team to discuss volume pricing, lead times, and supply continuity agreements tailored to your operational requirements.
