Emerson F14B3GM2 Replacement Upgrade for Ovation DCS

Product Overview

Emerson F14B3GM2 Replacement Upgrade for Ovation DCS: Seamless Transition from Legacy Drive Systems

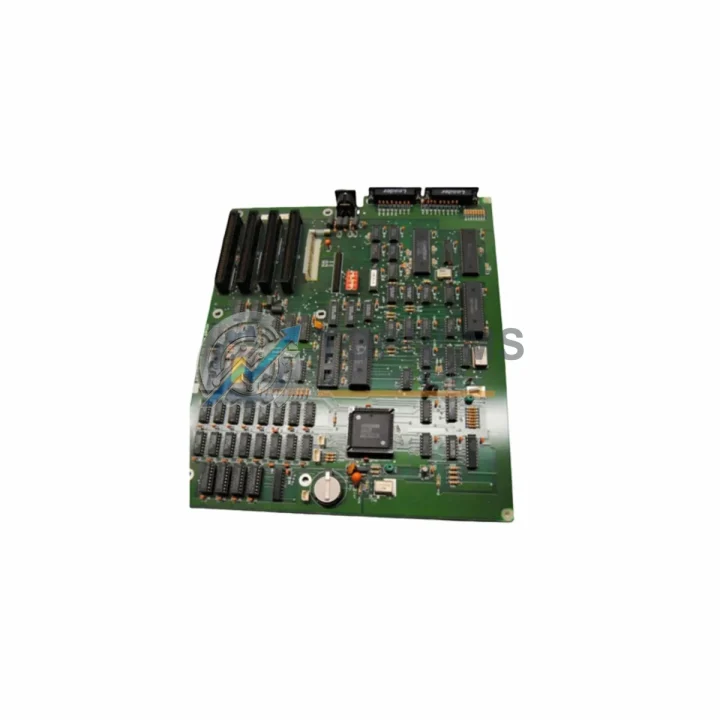

The Emerson F14B3GM2 is a Drive Board module designed for the Emerson Ovation Distributed Control System (DCS) platform — one of the most widely deployed process control architectures in power generation, oil & gas, and chemical processing facilities worldwide. As aging Ovation DCS installations approach end-of-life or face discontinued spare parts availability, plant engineers and procurement teams are actively seeking verified replacement and upgrade solutions that preserve existing wiring infrastructure, communication topology, and control logic without requiring a full system overhaul.

At TOPNLMS, we stock the F14B3GM2 Drive Board as a direct replacement module for facilities currently operating legacy Ovation DCS cabinets. Whether your site is executing a phased modernization, responding to an emergency board failure, or building a strategic spare parts inventory, the F14B3GM2 provides a hardware-compatible upgrade path that minimizes engineering rework and reduces unplanned downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful F14B3GM2 Drive Board replacement rarely occurs in isolation. In most Ovation DCS retrofit projects, the drive board interfaces directly with the OCR400 or OCR1100 Ovation Controller, which manages the overall process control loop. When replacing the F14B3GM2, site engineers should simultaneously audit adjacent modules in the same I/O rack — particularly the Ovation I/O modules such as the 5X00106G01 analog input card and the 5X00119G01 digital output module, which share the same backplane communication bus and may exhibit degraded performance if the drive board has been operating in a fault state for an extended period.

For facilities upgrading from older Ovation Mark I or Mark II cabinet configurations, the transition to a current-generation F14B3GM2 often coincides with a review of the Ovation power supply modules — specifically the 1X00024H01 or 1X00489H01 power supply units — to ensure the 24 VDC rail remains within specification under the updated load profile. In many brownfield installations, the existing Ovation termination panels and field wiring remain fully reusable, which significantly reduces the cost and schedule risk of the upgrade.

Communication continuity is a critical concern during any Ovation DCS drive board replacement. The F14B3GM2 operates on the Ovation proprietary high-speed controller network, and its replacement does not require changes to the Ovation network switches or fiber optic communication links that interconnect the Ovation Workstations and Drop Controllers across the plant. However, if the site is also upgrading from an older Ovation network topology, this is an appropriate time to evaluate the Ovation OW350 Workstation or the Ovation OCR400 Drop Controller for concurrent modernization.

For sites that include variable frequency drives (VFDs) or motor control centers (MCCs) interfaced through the Ovation DCS, the F14B3GM2 drive board replacement should be coordinated with a review of the drive interface wiring at the MCC terminal blocks. In many cases, the existing shielded cable runs and signal isolators between the Ovation I/O rack and the drive panels remain fully compatible, eliminating the need for new cable pulls. Signal isolation modules — such as those used to condition 4–20 mA analog feedback signals from the drive — should be tested for calibration drift if they have been in service for more than five years.

Finally, for procurement teams building a comprehensive spare parts strategy around the Ovation DCS platform, the F14B3GM2 is best sourced alongside other high-criticality Ovation spare modules, including the 5X00070G01 communication interface module and the 1C31197G01 Ovation I/O module, to ensure that a single-point hardware failure does not result in extended process downtime while awaiting international shipment of a replacement part.

Retrofit Guidance FAQ

Q: Can the F14B3GM2 be installed without modifying existing field wiring?
A: Yes. The F14B3GM2 uses the same connector interface as the legacy drive board it replaces within the Ovation DCS rack. Existing field wiring harnesses and termination panels are fully reusable in the vast majority of installations. Always verify the specific revision of your Ovation I/O rack backplane before installation.

Q: Is the F14B3GM2 compatible with the Ovation Developer Studio programming environment?
A: Yes. The module is recognized by the Ovation Developer Studio without requiring changes to the existing control strategy or function block diagrams. After physical replacement, a standard module download from the Ovation Workstation is sufficient to restore full operation.

Q: What communication protocols does the F14B3GM2 support?
A: The F14B3GM2 communicates via the Ovation proprietary controller bus, which is the standard backplane communication protocol for all Ovation DCS I/O and drive interface modules. It does not require Modbus, PROFIBUS, or Ethernet/IP configuration changes at the system level.

Q: Will the F14B3GM2 fit in the existing Ovation I/O rack without mechanical modification?
A: Yes. The module is designed to the standard Ovation rack form factor and occupies a single I/O slot. No additional mounting hardware, spacers, or cabinet modifications are required.

Q: How should the replacement be handled to minimize process downtime?
A: In most Ovation DCS configurations, the F14B3GM2 can be replaced during a planned maintenance window with the controller in a safe state. Some configurations support hot-swap replacement — consult your site-specific Ovation system documentation and safety procedures before proceeding. TOPNLMS recommends having the replacement module on-site and bench-tested before scheduling the maintenance window to minimize exposure time.

Q: What if my existing Ovation system uses an older revision of the drive board with a different part number?
A: Contact TOPNLMS with your existing part number and Ovation system revision. Our technical team will confirm cross-compatibility and advise on any configuration differences between revisions before shipment.

Warranty Assurance

Every F14B3GM2 Drive Board shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each module undergoes functional verification testing to confirm board integrity, connector condition, and basic operational status. Modules that do not pass our pre-shipment inspection are not offered for sale.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for customers experiencing active process downtime. Our standard response time for warranty inquiries is within one business day. Replacement modules are dispatched from our Xiamen warehouse, with express international shipping options available for urgent requirements.

For procurement teams and MRO buyers, TOPNLMS offers documentation support including packing lists, commercial invoices, and certificates of conformance upon request. We serve customers across power generation, petrochemical, pulp and paper, water treatment, and manufacturing industries who depend on the Emerson Ovation DCS platform for continuous process control.

To place an order, request a quotation, or confirm compatibility for your specific Ovation DCS installation, contact our team directly:

📧 [email protected]
📞 +86 18359293191
