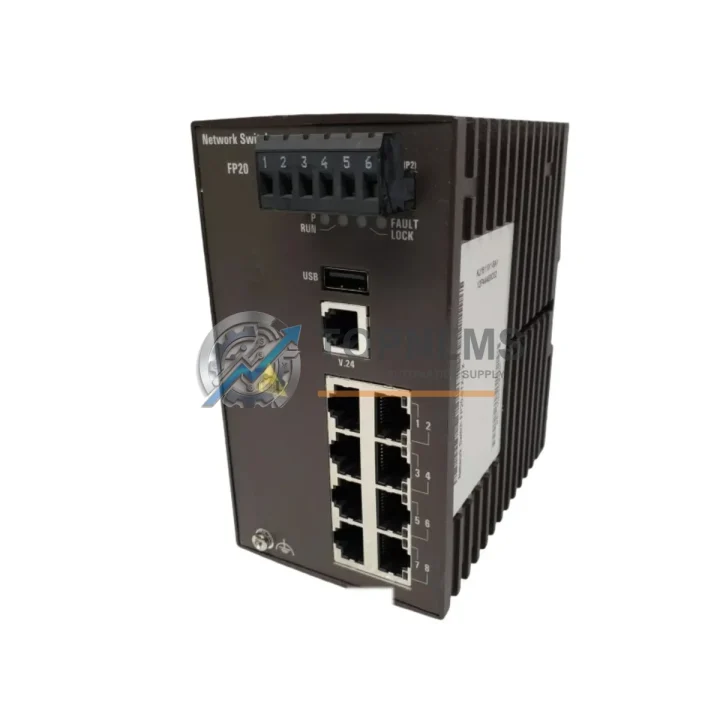

EMERSON FP20-6TX2TX Ruggedized Network Switch Module

Product Overview

EMERSON FP20-6TX2TX KJ1611X1-BA1: Ruggedized Network Switch Module for Industrial Resilience in Harsh Environments

The EMERSON FP20-6TX2TX (Part No. KJ1611X1-BA1 / 12P4448X032) is a ruggedized managed network switch module engineered for the DeltaV FP20 Fieldbus platform — one of the most widely deployed distributed control system (DCS) architectures in critical process industries worldwide. Designed to operate continuously in environments characterized by extreme temperatures, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference (EMI), this module delivers the network backbone reliability that modern industrial automation demands.

In continuous production environments — oil refineries, natural gas processing plants, coal-fired and nuclear power stations, water treatment facilities, metallurgical smelters, and heavy chemical plants — network communication integrity is not optional. A single point of network failure can cascade into unplanned shutdowns, safety incidents, and significant financial loss. The FP20-6TX2TX is purpose-built to eliminate that risk, providing six 10/100BASE-TX copper ports and two 100BASE-TX uplink ports in a compact, DIN-rail-compatible form factor that integrates directly into the DeltaV FP20 I/O subsystem.

Rugged Specifications Table

Comprehensive Protection Solutions: System-Level Integration with DeltaV Components

The FP20-6TX2TX does not operate in isolation — it is the communications backbone that ties together an entire DeltaV FP20 control node. In a typical control cabinet deployment, this switch module interconnects with the EMERSON KJ2201X1-BA1 FP20 Power Supply Module, which provides stable, filtered DC power to the entire I/O subsystem, ensuring that voltage transients from heavy motor loads or welding equipment on the plant floor never propagate into the control network.

On the I/O side, the switch supports real-time data exchange with EMERSON KJ3001X1-BA1 FP20 Analog Input Modules and KJ3221X1-BA1 Analog Output Modules, which handle 4–20 mA process signals from field transmitters measuring pressure, temperature, flow, and level in hazardous process streams. Digital I/O modules such as the KJ3002X1-BA1 FP20 Digital Input Module and KJ3222X1-BA1 Digital Output Module connect to solenoid valves, motor starters, and safety interlock circuits — all of which depend on the FP20-6TX2TX for deterministic, low-latency network communication.

For safety-critical applications, the FP20-6TX2TX network infrastructure supports integration with EMERSON DeltaV SIS Safety Instrumented System controllers and associated SIS Logic Solver Modules, enabling IEC 61511-compliant safety loops to share the same physical network architecture while maintaining logical separation. In facilities where SIL 2 or SIL 3 rated protection layers are mandatory — such as emergency shutdown systems (ESD) in LNG terminals or high-pressure reactor protection in petrochemical plants — the reliability of the underlying network switch is a fundamental prerequisite.

The module also facilitates communication with EMERSON DeltaV Distributed I/O (DIO) Carriers and CHARM I/O modules in hybrid architectures, as well as with third-party devices using FOUNDATION Fieldbus HSE or Modbus TCP protocol bridges. Variable frequency drives (VFDs), intelligent motor control centers (MCCs), and power quality monitors from the plant electrical system can all be integrated into the DeltaV supervisory layer through the FP20-6TX2TX’s managed switching fabric.

Application in Critical Infrastructure

Oil & Gas Upstream and Midstream: On offshore platforms and onshore gas compression stations, the FP20-6TX2TX sustains reliable SCADA and DCS communication in environments where salt spray, condensation, and explosive-atmosphere proximity demand the highest standards of enclosure integrity and EMI immunity. It maintains continuous data flow between wellhead controllers, separator control loops, and the central DeltaV operator workstation — even during electrical storms or when large diesel generators cycle on and off nearby.

Power Generation: In coal-fired, gas turbine, and hydroelectric power plants, the module supports boiler management systems, turbine protection relays, and generator excitation control loops. The managed switching capability allows network administrators to implement VLAN segmentation, isolating safety-critical control traffic from general plant Ethernet — a requirement increasingly mandated by IEC 62443 industrial cybersecurity standards.

Water and Wastewater Treatment: Municipal water authorities operating large-scale treatment plants rely on DeltaV FP20 systems for dosing control, filtration monitoring, and pump station automation. The FP20-6TX2TX’s resistance to high-humidity environments and its ability to operate continuously without fan cooling make it ideal for wet, chemically aggressive plant rooms where conventional IT-grade switches fail prematurely.

Mining and Metallurgy: In underground mining operations and surface smelting facilities, vibration from blasting, ore crushers, and conveyor drives creates a hostile environment for electronic components. The FP20-6TX2TX’s industrial-grade PCB conformal coating and vibration-rated mounting system ensure uninterrupted network connectivity for ore grade control, furnace temperature regulation, and ventilation safety systems — where a network outage could trigger mandatory evacuation protocols.

Chemical and Pharmaceutical Manufacturing: Batch process control in fine chemical and API pharmaceutical production requires deterministic network timing and audit-trail integrity. The FP20-6TX2TX supports the DeltaV batch execution engine with the low-latency, high-availability network performance needed to meet FDA 21 CFR Part 11 and GMP data integrity requirements.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it handled?
Every FP20-6TX2TX unit shipped by TOPNLMS carries a full 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide a direct replacement or full repair at no additional cost. Warranty claims are processed within 5 business days of receiving the returned unit, and advance replacement units are available for critical production environments to minimize downtime.

Q2: How is each unit tested before shipment?
All FP20-6TX2TX modules undergo a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, power-on functional test confirming all 8 network ports are active and link-negotiating correctly, firmware version verification against EMERSON’s published compatibility matrix, and a 24-hour burn-in test for refurbished units. A test report is available upon request and can be included with the shipment documentation for your incoming quality control records.

Q3: Is this module compatible with all DeltaV FP20 system revisions, and can it replace older switch modules?
The FP20-6TX2TX (KJ1611X1-BA1) is compatible with DeltaV system versions 9.3 and above, and is a direct form-fit-function replacement for earlier FP20 network switch variants used in the same carrier slots. Before ordering, we recommend confirming your DeltaV system version and existing carrier type. Our technical team can assist with compatibility verification — contact us at [email protected] with your system details.

Q4: Can you guarantee long-term supply and support for this module?
Yes. TOPNLMS maintains dedicated inventory of DeltaV FP20 series components, including the FP20-6TX2TX, to support customers with long-lifecycle plant assets. Industrial DCS systems routinely operate for 15–25 years, and we understand that procurement continuity is a critical concern. We source from verified supply channels, maintain safety stock for high-demand SKUs, and can arrange blanket purchase orders or scheduled delivery programs for customers requiring guaranteed availability over multi-year maintenance contracts.
