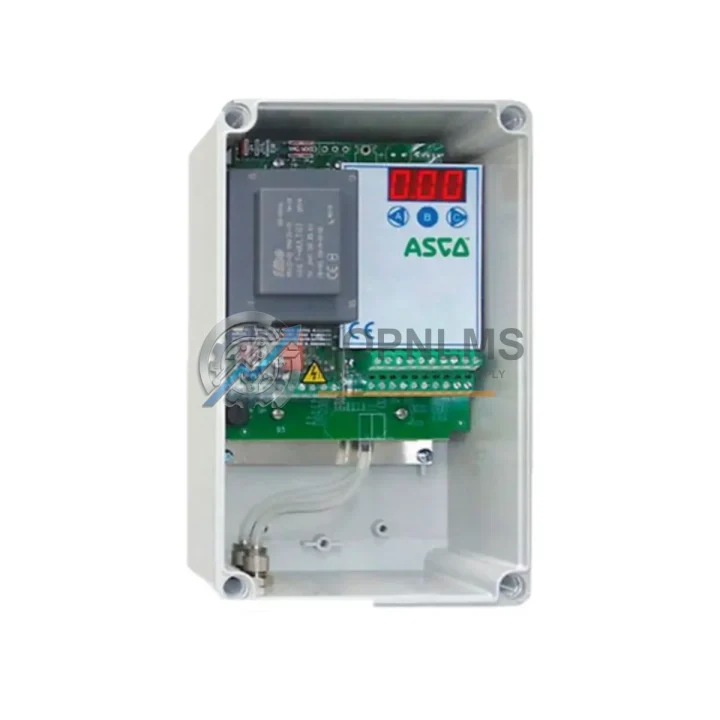

Emerson ASCO E909PA16MU1 Ruggedized Solenoid Pilot Module: Industrial Resilience for Harsh Environments

The Emerson ASCO E909PA16MU1 is a 16-channel electronic valve controller and solenoid pilot module engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed under Emerson’s ASCO E909 Series architecture, this module delivers precise, high-density pneumatic valve control where reliability is non-negotiable — from offshore oil platforms and underground mining operations to high-temperature steel mills and chemical processing plants.

Built to withstand extreme thermal cycling, persistent mechanical vibration, corrosive atmospheres, and high-intensity electromagnetic interference, the E909PA16MU1 maintains stable output across all 16 solenoid channels without signal degradation or spurious actuation. Its ruggedized housing and sealed terminal design make it a preferred choice for engineers specifying components in SIL-rated safety loops, hazardous area control panels, and mission-critical continuous production lines.

Rugged Specifications Table

Comprehensive Protection Solutions

The ASCO E909PA16MU1 is rarely deployed in isolation. In a fully integrated control cabinet, it operates alongside a coordinated ecosystem of protection, control, and communication components. On the power supply side, a Phoenix Contact QUINT-PS/1AC/24DC/20 or equivalent 24 VDC industrial power supply provides stable, filtered voltage to the solenoid channels, ensuring that voltage dips during motor starts or load switching do not cause false valve actuation.

Upstream, the module receives discrete output commands from a Siemens S7-300 SM 322 digital output module or a Rockwell Allen-Bradley 1756-OB16I ControlLogix output card, both of which are fully compatible with the E909PA16MU1’s input signal requirements. In DCS-based architectures — common in refinery and power plant applications — the module integrates cleanly with Emerson DeltaV SIS M-Series I/O cards, enabling safety-instrumented system (SIS) valve control with full diagnostic feedback.

For fieldbus-connected installations, the E909PA16MU1 mounts onto ASCO Series 562 or 580 DeviceNet/Profibus manifold bases, allowing all 16 channels to be addressed and monitored over a single fieldbus cable — dramatically reducing wiring complexity in large valve galleries. Surge protection on the field wiring side is handled by Phoenix Contact TRABTECH PT 2×24DC-ST surge arresters, which clamp transient voltages before they reach the solenoid driver circuitry.

In safety-critical loops, the E909PA16MU1 is often paired with a Pilz PNOZ X3 safety relay or a Sick UE10-3OS safety module to enforce de-energize-to-trip logic on critical valve channels. Terminal connections within the control cabinet are made via Phoenix Contact UK 6-TWIN or Weidmüller WDU 6 terminal blocks, providing vibration-resistant, torque-controlled terminations that maintain contact integrity even in high-vibration mobile or marine environments.

Application in Critical Infrastructure

In upstream oil and gas operations, the ASCO E909PA16MU1 controls wellhead shutdown valves, chemical injection skid actuators, and flare pilot valves — applications where a single missed actuation can trigger a process safety event. Its sealed housing resists H₂S-laden atmospheres and salt-fog corrosion, making it suitable for both onshore and offshore topsides installations.

In underground coal and hard-rock mining, the module manages ventilation damper actuators, conveyor belt diverter valves, and hydraulic roof support control circuits. The combination of IP65 sealing and high vibration tolerance ensures continuous operation despite constant mechanical shock from blasting and heavy equipment.

In thermal and hydroelectric power generation, the E909PA16MU1 is deployed in turbine bypass valve control panels and boiler feedwater control systems, where it must respond to DCS commands within milliseconds and sustain operation through high-temperature ambient conditions near boiler rooms and turbine halls.

In municipal and industrial water treatment, the module drives actuated gate valves, chemical dosing valves, and filter backwash actuators across large-scale treatment plants. Its multi-channel architecture allows a single module to manage an entire valve gallery from one compact DIN-rail footprint, simplifying panel layout and reducing maintenance access time.

In metallurgical and steel production environments — characterized by extreme radiated heat, heavy electromagnetic interference from arc furnaces, and pervasive iron oxide dust — the E909PA16MU1’s EMI-hardened design and sealed enclosure maintain reliable valve control for cooling water circuits, ladle transfer systems, and rolling mill hydraulic actuators.
