ELAU MC-4/11/10/400 VDM01D10AA00 Replacement for PacDrive

Product Overview

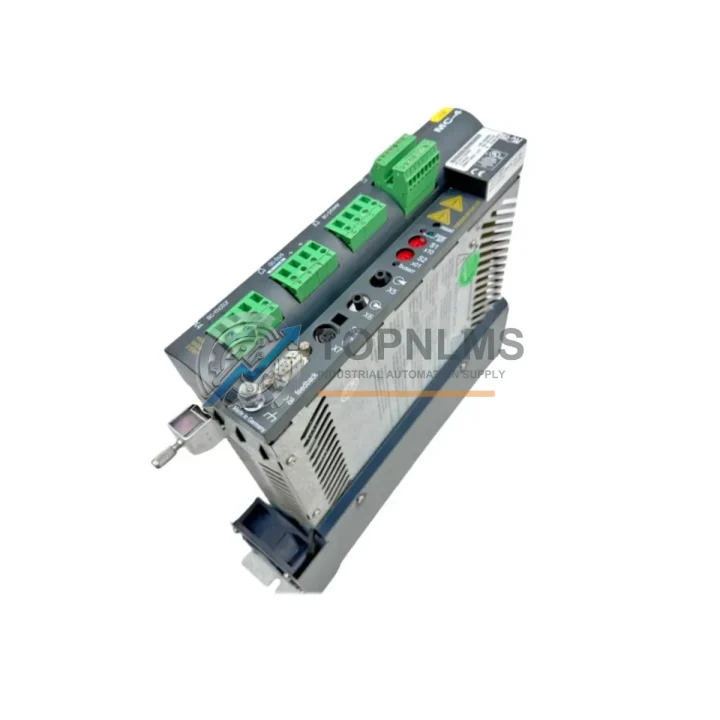

ELAU MC-4/11/10/400 VDM01D10AA00 Replacement for PacDrive: Seamless Servo Axis Upgrade

When your ELAU PacDrive system faces an end-of-life servo axis module, unplanned downtime is the most costly outcome. The ELAU MC-4/11/10/400 VDM01D10AA00 HW EOQ603 is a high-performance servo axis module engineered for the PacDrive motion control platform. At TOPNLMS, we specialize in sourcing, testing, and supplying this exact module as a direct replacement or upgrade solution for legacy PacDrive installations — with full compatibility verification before shipment.

Whether you are migrating from an older MC-4 variant, replacing a failed axis module in a multi-axis packaging line, or consolidating spare parts inventory for a PacDrive-based machine, this module delivers the electrical and mechanical compatibility your system demands. Our engineering team has verified its interoperability with the PacDrive C400 controller and the broader ELAU/Schneider Electric motion architecture.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PacDrive servo axis replacement rarely involves a single module in isolation. In practice, field engineers replacing the MC-4/11/10/400 VDM01D10AA00 typically work within a broader system context that includes several interdependent components.

The ELAU PacDrive C400 motion controller sits at the heart of most MC-4 installations, coordinating all servo axes over the SERCOS II fiber optic ring. When replacing an axis module, it is essential to confirm that the C400 firmware version supports the HW EOQ603 hardware revision — in most cases, no firmware update is required for a same-generation swap. Alongside the controller, the ELAU MC-4 power supply module (PSM) feeds the DC bus shared across all axis slots; verifying its output capacity against the total axis load is a standard pre-commissioning step.

For multi-axis machines — common in rotary packaging, form-fill-seal, and labeling equipment — the replacement axis module shares the rack with other MC-4 servo axis modules of varying current ratings. It is good practice to inspect adjacent modules for signs of thermal stress or capacitor aging during the same maintenance window, as PacDrive racks often run at high ambient temperatures over extended production cycles.

Motor-side compatibility is equally important. The ELAU SM servo motor series (including SM070, SM100, and SM142 frame sizes) connects directly to the MC-4 axis module via standard ELAU power and feedback cables. In most retrofit scenarios, existing motor cables can be reused without modification, provided the cable shielding and connector integrity are verified. If the original ELAU resolver cable or SinCos encoder cable shows insulation degradation, replacement cables with the correct pinout should be sourced simultaneously to avoid a second service call.

Communication infrastructure is another consideration. The SERCOS II ring uses fiber optic patch cables between the C400 controller and each MC-4 axis module. Damaged or dirty fiber connectors are a common cause of axis faults after module replacement; cleaning and inspecting the fiber terminations at both ends is a recommended step before powering up the new module. In systems that also integrate ELAU I/O expansion modules or third-party SERCOS nodes, the ring topology must be verified to ensure no address conflicts arise after the swap.

For sites running mixed-generation PacDrive hardware — for example, combining original ELAU modules with later Schneider Electric LMC Pro2 or LMC078 controllers — compatibility at the SERCOS protocol level should be confirmed against the system’s existing configuration file. TOPNLMS can assist with pre-shipment compatibility checks based on your system’s controller firmware version and axis configuration data.

Finally, if the replacement is part of a broader control cabinet modernization, consider whether the existing 24 V DC auxiliary power supply feeding the MC-4 logic circuits meets current load requirements, and whether the cabinet’s thermal management (fan units, heat exchangers) is adequate for continued operation at rated ambient temperature.

Retrofit Guidance FAQ

Q: Can I replace the MC-4/11/10/400 VDM01D10AA00 HW EOQ603 without modifying my PLC program?
A: Yes, for a same-SKU replacement. The PacDrive IEC 61131-3 program references axis objects by logical address, not hardware revision. As long as the SERCOS node address is set identically on the new module, no program changes are required.

Q: Is rewiring the motor power or encoder cables necessary?
A: No. The MC-4/11/10/400 VDM01D10AA00 uses the same motor power connector pinout and encoder interface as previous HW revisions. Existing ELAU SM series motor cables can be reconnected directly.

Q: What SERCOS communication settings need to be verified?
A: Confirm the SERCOS node address (rotary switch on the module front panel) matches the original module’s address. The baud rate and cycle time are set in the C400 controller configuration and do not need to be changed.

Q: Will the module fit in the existing PacDrive rack without cabinet modification?
A: Yes. The MC-4 module series uses a standardized slot width and backplane connector. The HW EOQ603 revision maintains the same physical envelope as earlier revisions.

Q: What if my system uses a mixed rack with different MC-4 current ratings?
A: Mixed-rating racks are standard in PacDrive installations. Each axis module operates independently on the DC bus. Replacing one module does not affect adjacent modules’ operation, provided the PSM’s total output capacity is not exceeded.

Q: How do I handle the axis parameter set (drive parameters) after replacement?
A: The axis parameter set is stored in the C400 controller’s project file, not in the axis module itself. After physical replacement, download the existing project to the controller — the axis parameters will be applied automatically during the SERCOS initialization phase.

Q: What is the lead time and shipping arrangement?
A: Units are dispatched from Xiamen, China, typically within 1–3 business days of order confirmation. International express shipping (DHL/FedEx) is available. All units undergo functional testing prior to shipment.

Warranty Assurance

Every ELAU MC-4/11/10/400 VDM01D10AA00 HW EOQ603 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our quality assurance process includes:

• Pre-shipment functional testing: Each module is powered up and verified for correct initialization, SERCOS communication response, and absence of fault codes before packaging.
• Visual and mechanical inspection: Connector integrity, PCB condition, and front-panel indicators are inspected against acceptance criteria.
• Secure packaging: Anti-static packaging with foam cushioning protects the module during international transit.
• Replacement support: In the event of a warranty claim, TOPNLMS will arrange a replacement unit or issue a refund, subject to fault verification. Our technical team is available to assist with fault diagnosis remotely.
• After-sales response: Warranty claims and technical inquiries are responded to within 1 business day via email or phone.
• Procurement assurance: We provide a commercial invoice, packing list, and test report with every shipment to support your incoming inspection and asset management processes.

For volume orders, blanket purchase agreements, or consignment stock arrangements, please contact our sales team directly.
