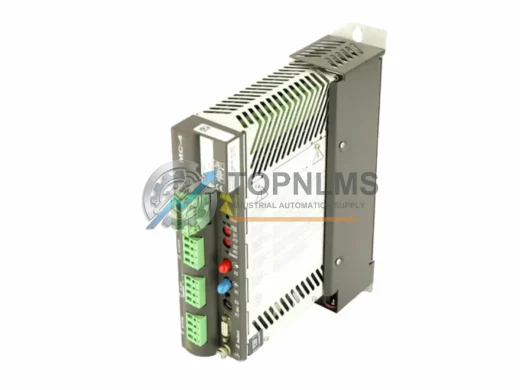

ELAU MC-4/11/01/400 VDM01U15AQ00 Ruggedized Servo Axis Module

Product Overview

ELAU MC-4/11/01/400 VDM01U15AQ00 Ruggedized Servo Axis Module: Industrial Resilience for Harsh Environments

The ELAU MC-4/11/01/400 VDM01U15AQ00 is a high-performance servo axis module from ELAU’s renowned PacDrive MC-4 series, engineered to deliver precise motion control and sustained reliability in the most demanding industrial environments. Designed for continuous-duty operation in conditions characterized by elevated temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module represents a cornerstone component for engineers and procurement specialists who cannot afford unplanned downtime.

Built to the exacting standards of German industrial engineering, the MC-4/11/01/400 VDM01U15AQ00 integrates seamlessly into ELAU’s PacDrive automation architecture, providing synchronized multi-axis servo control with deterministic real-time response. Whether deployed on a high-speed packaging line, a precision printing press, a pharmaceutical filling system, or a heavy-duty material handling conveyor, this module maintains stable output under load fluctuations and environmental stress that would compromise lesser drives.

Rugged Specifications Table

Comprehensive Protection Solutions

In a modern industrial control cabinet, the MC-4/11/01/400 VDM01U15AQ00 does not operate in isolation — it is part of a tightly integrated ecosystem of protection, control, and communication components. When paired with the ELAU PacDrive C400 motion controller, the module achieves fully synchronized multi-axis coordination, enabling complex cam profiles and electronic gearing without the latency penalties of traditional PLC-based architectures.

For power conditioning and protection upstream of the servo axis module, the ELAU MC-4 power supply module (PSM) provides regulated DC bus voltage with built-in regenerative braking capability, protecting the MC-4/11/01/400 VDM01U15AQ00 from voltage spikes generated during rapid deceleration cycles. Complementing this, a properly rated line filter and EMC choke on the AC input side suppresses conducted emissions and shields the servo drive from grid-borne interference — a critical consideration in facilities where large induction motors, welding equipment, or variable-frequency drives share the same power distribution network.

On the safety side, integration with a Schneider Electric Preventa XPS safety relay module or a compatible safety PLC I/O module enables STO (Safe Torque Off) and SS1 (Safe Stop 1) functions, meeting the requirements of IEC 62061 and ISO 13849 for machinery safety. This is particularly relevant in applications where operators must access the machine envelope during production changeovers.

Communication integrity is maintained through the SERCOS fiber-optic ring that interconnects the MC-4 axis modules with the PacDrive controller, providing deterministic cycle times as low as 500 µs and inherent immunity to electromagnetic interference — a decisive advantage over copper-based fieldbus systems in electrically noisy environments. For facilities that require integration with higher-level SCADA or DCS systems, a Modbus TCP or PROFINET communication gateway module bridges the PacDrive network to the plant-wide control infrastructure.

Terminal modules and I/O expansion blocks within the control cabinet handle discrete and analog signals from field devices — proximity sensors, encoders, pressure transducers, and temperature transmitters — feeding real-time process data to the PacDrive controller and enabling closed-loop feedback that keeps the MC-4/11/01/400 VDM01U15AQ00 operating within its optimal performance envelope. Surge protection devices (SPDs) on signal lines and a properly grounded industrial UPS module complete the protection architecture, ensuring that brief power interruptions do not corrupt motion sequences or damage the servo axis module’s internal memory.

Application in Critical Infrastructure

The ELAU MC-4/11/01/400 VDM01U15AQ00 has established a strong track record across critical industrial sectors where servo motion reliability is non-negotiable.

In oil and gas processing facilities, the module drives precision metering pumps and valve actuators in classified hazardous areas, where it is installed in pressurized or purged control enclosures to maintain Ex compliance. Its deterministic motion control ensures accurate dosing of chemical injection systems, where even minor deviations can affect process chemistry and pipeline integrity.

In power generation and electrical utilities, the MC-4 servo axis module controls positioning systems for turbine inlet guide vanes and generator excitation components, where continuous availability is mandated by grid stability requirements. The module’s ability to sustain rated output across wide ambient temperature ranges makes it suitable for both indoor substations and outdoor equipment shelters.

In mining and mineral processing, the module is deployed in conveyor drive systems, crusher feed regulators, and flotation cell agitators, where high dust concentrations, constant vibration, and corrosive atmospheres demand robust enclosure design and reliable drive electronics. The PacDrive architecture’s centralized diagnostics capability allows maintenance teams to monitor drive health remotely, reducing the frequency of hazardous manual inspections underground or in open-pit environments.

In water and wastewater treatment plants, the MC-4/11/01/400 VDM01U15AQ00 controls sludge dewatering presses, chemical dosing pumps, and UV disinfection system drives, where 24/7 operation and resistance to high-humidity environments are essential. Its compatibility with the broader PacDrive ecosystem simplifies spare parts management for plant operators who standardize on ELAU motion control platforms.

In metallurgy and heavy industry — rolling mills, continuous casting lines, and induction furnace drives — the module’s EMC robustness and thermal stability allow it to function reliably in proximity to high-power electrical equipment that generates intense magnetic fields and conducted interference.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every MC-4/11/01/400 VDM01U15AQ00 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund after technical verification. Warranty claims are processed within 5 business days of receiving the returned unit at our Xiamen facility.

Q2: How is each unit tested before shipment?
All units undergo a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, power-on functional test to verify communication interface and axis initialization, and parameter readback verification against factory defaults. Units that fail any stage of testing are quarantined and not shipped. A test report is available upon request for critical procurement orders.

Q3: Is this module compatible with my existing PacDrive system and ELAU controller firmware?
The MC-4/11/01/400 VDM01U15AQ00 is compatible with the full range of ELAU PacDrive C400 and C200 controllers running PacDrive firmware versions 01.xx through current releases. It supports the standard SERCOS ring topology and is interchangeable with other MC-4 series axis modules of equivalent current rating. If you have specific firmware version or system configuration questions, our technical team can advise prior to purchase.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for this module?
Yes. TOPNLMS maintains dedicated stock of ELAU PacDrive MC-4 series components, including the MC-4/11/01/400 VDM01U15AQ00, to support both immediate replacement needs and planned maintenance programs. We source directly from verified supply channels and can provide lead-time commitments for volume orders. For facilities running legacy PacDrive systems where OEM support has been discontinued, we serve as a reliable aftermarket supply partner with technical expertise to support your ongoing operations.
